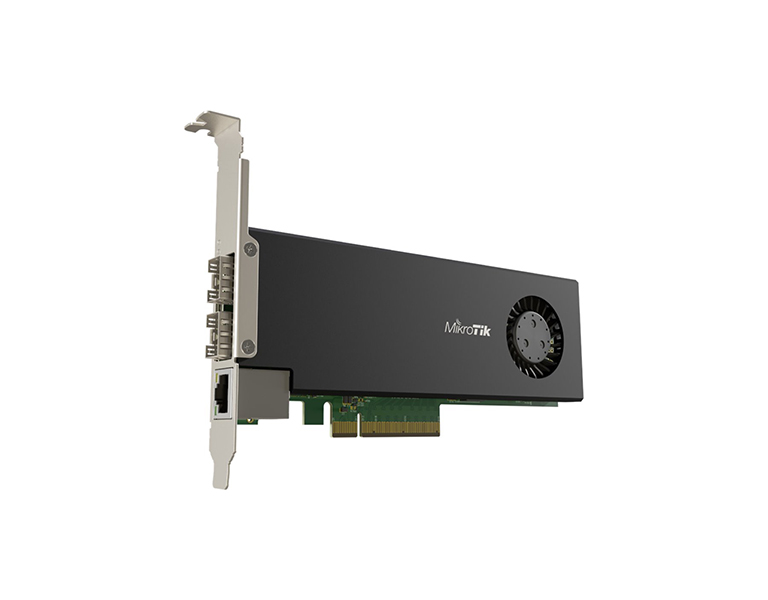

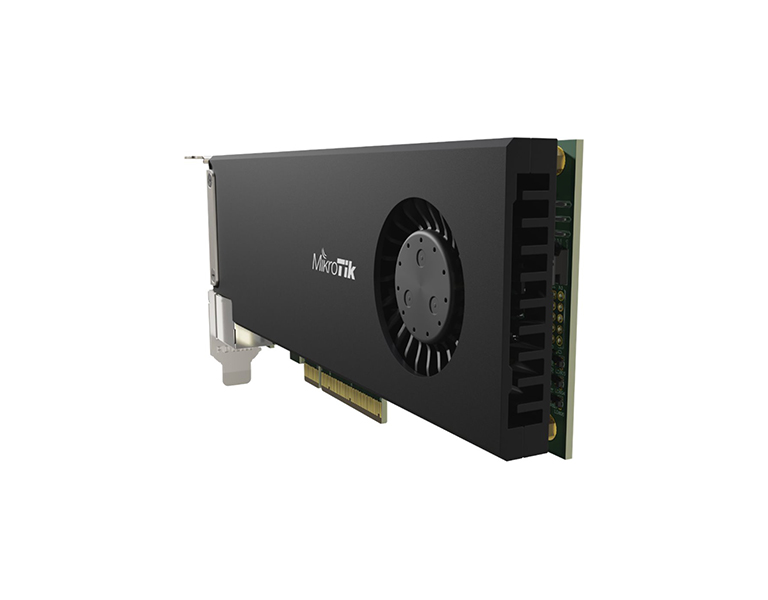

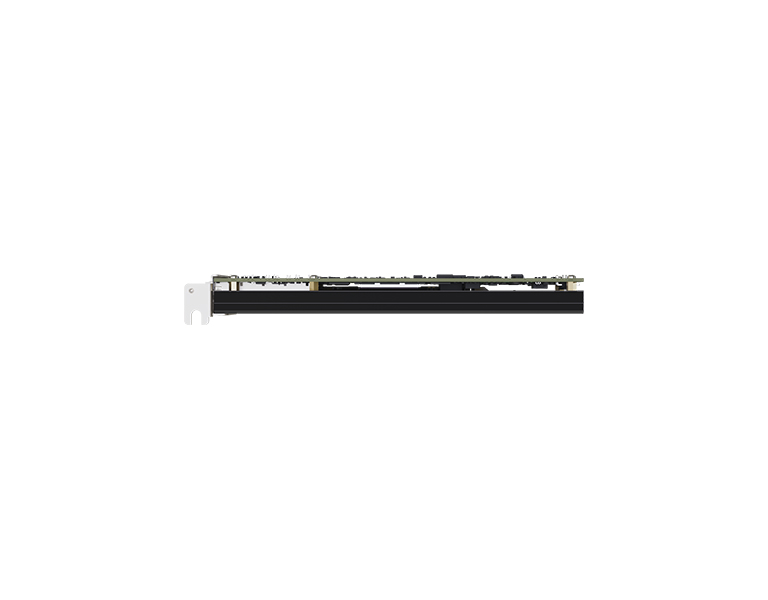

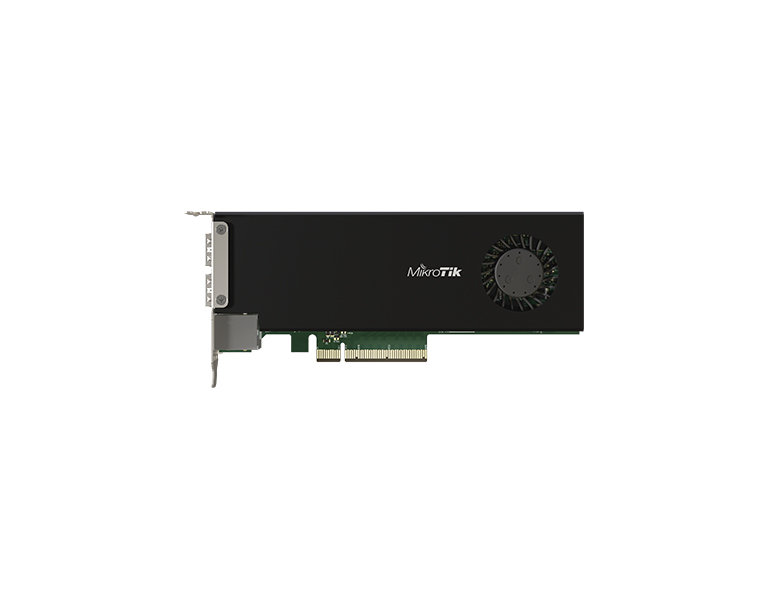

Cloud Core Router 2004-1G-2XS-PCIe network interface card with quad-core ARMv8 64-bit AL32400 CPU, 4GB RAM, 2x25G SFP28 cages, 1xGbit LAN, RouterOS L6. The smart and easy way to create 25 Gigabit networks if you want to save space in your server room. Save space in your server room by adding a real CCR2004 within the server itself!
This unique product combines a simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities of a fully-fledged router. By default, the PCIe interface will show up as four virtual Ethernet interfaces. Two interfaces in passthrough mode to the 25G SFP28 cages. Remaining two virtual Ethernet-PCIe interfaces are bridged with the Gigabit Ethernet port for management access.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | CCR2004-1G-2XS-PCIe |
CPU | AL32400 2 GHz |
CPU architecture | ARM 64bit |
CPU core count | 4 |
Size of RAM | 4 GB |
RAM type | DDR4 |
Storage | 128 MB, NAND |
Number of 1G Ethernet ports | 1 |
Number of 25G SFP28 ports | 2 |
Operating system | RouterOS (License level 6) |
Dimensions | 170 x 69 x 18 mm |
Operating temperature | -20°C to +60°C |
Max power consumption | 29 W |
Certification & Approvals | |
Certification | CE, FCC, IC |
Package Contains | |
Included Parts | • Small bracket • Large bracket |
