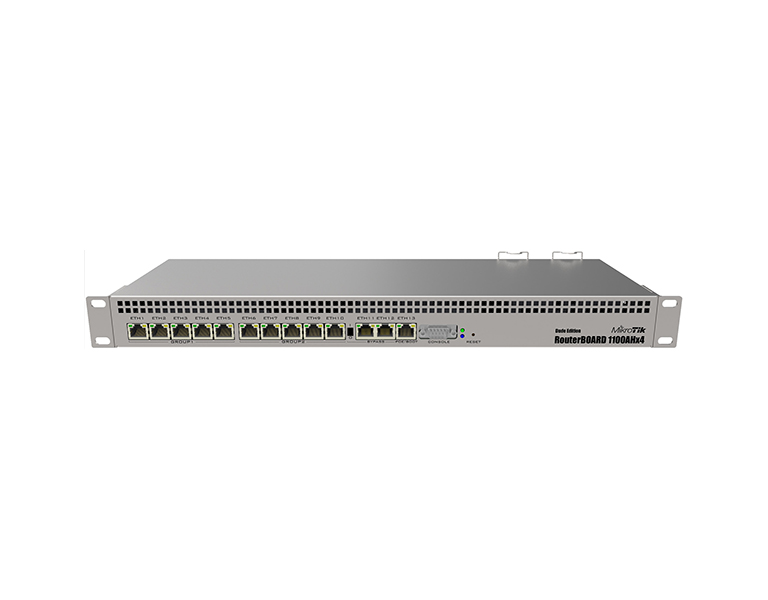

The new RB1100AHx4 Dude Edition uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company. The chip is clocked at 1.4GHz, for a maximum throughput of up to 7.5Gbit.
Unit features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive and comes with Dude package already installed to work out-of-the box.
The RB1100AHx4 Dude Edition supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device.

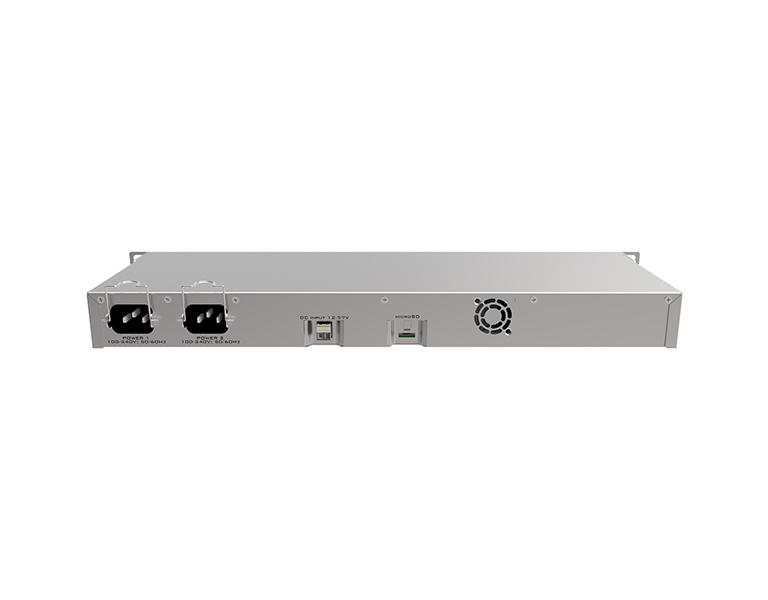

Unit features two IEC failover power connectors, supports passive or 802.3at/af PoE input and has a DC telecom power connector for -48V DC powering. It uses passive cooling and is absolutely quiet.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RB1100Dx4 |
Architecture | ARM 32bit |
CPU | AL21400 |
CPU core count | 4 |
CPU nominal frequency | 1.4 GHz |
Dimensions | 444 x 148 x 47 mm |
License level | 6 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -40°C to 70°C |
Powering | |
PoE in | 802.3af/at |
PoE in input Voltage | 20-57 V |
Number of AC inputs | 2 |
Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
2-pin terminal input Voltage | -48, 20-57 V |
Max power consumption | 33 W |
Max power consumption without attachments | 25 W |
Ethernet | |
10/100/1000 Ethernet ports | 13 |
Peripherals | |
Extended storage | 60GB M.2 SSD included |
M.2 slots | 2 |
Memory card type | microSD |
Memory Cards | 1 |
SATA ports | 2x SATA3 |
Serial port | RS232 |
Other | |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals | |
Certification | CE/RED, EAC, ROHS |
