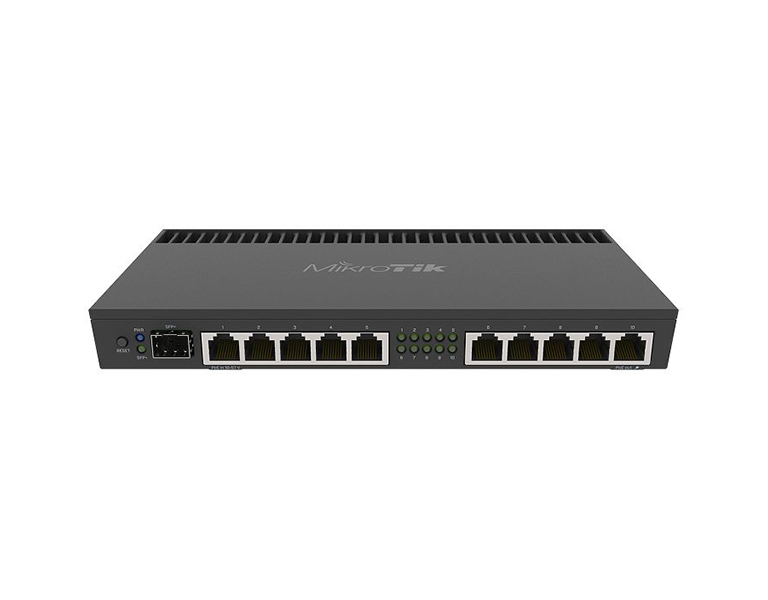

In addition to the ten 1 Gbps ethernet ports, an SFP+ port provides optional 10 Gbps connectivity through an SFP+ module (not included). All of this power, in a compact and professional looking solid metal enclosure in matte black.

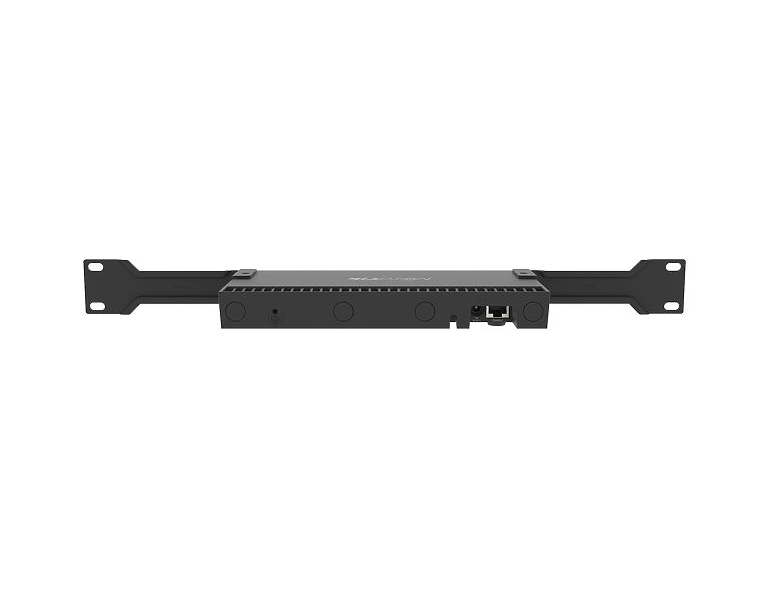

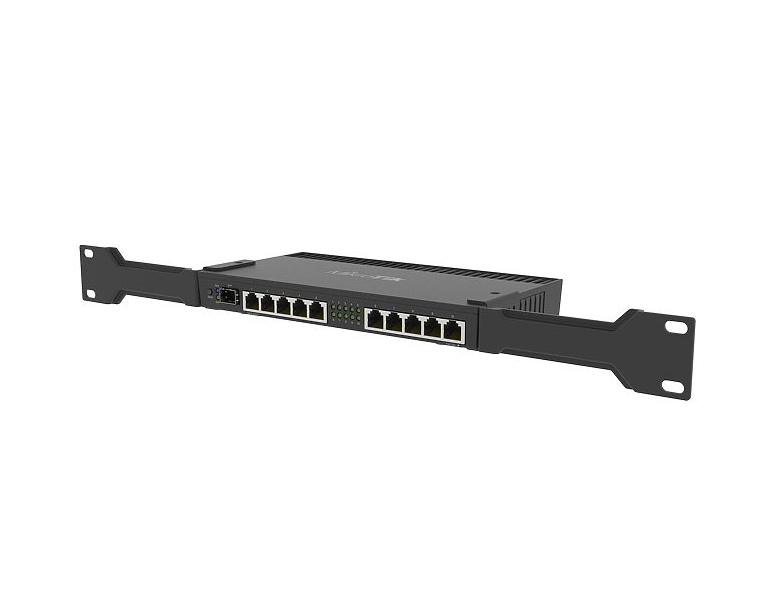

The ethernet model includes two rackmount ears, that will securely fasten the unit in standard 1U rack space.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RB4011iGS+RM |
Architecture | ARM 32bit |
CPU | AL21400 |
CPU core count | 4 |
CPU nominal frequency | 1400 MHz |
Dimensions | 228 x 120 x 30 mm |

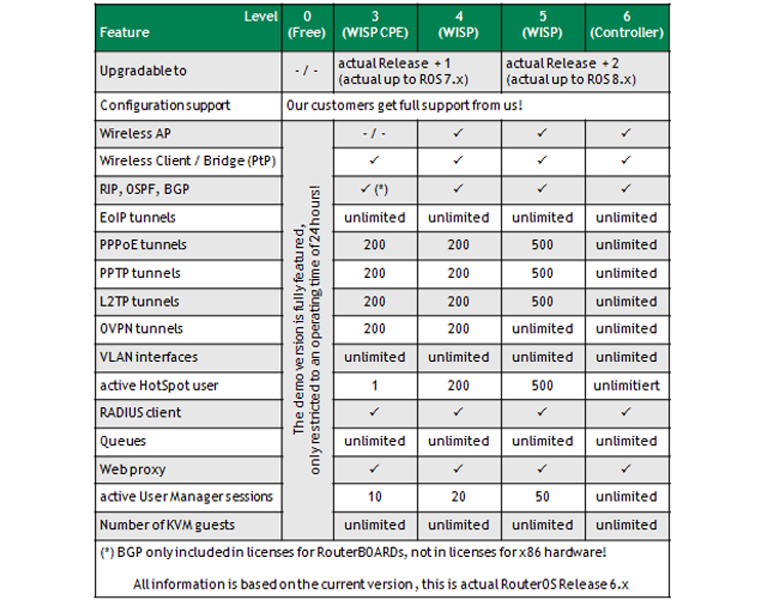

License level | 5 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 512 MB |
Storage type | NAND |
Tested ambient temperature | -40°C to 70°C |
Powering | |
PoE in | Passive PoE |
PoE in input Voltage | 18-57 V |
PoE out | Passive PoE up to 57V |
PoE-out ports | Ether10 |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max out per port output (input > 30 V) | 400 mA |
Max out per port output (input < 30 V) | 600 mA |
Max total out (A) | 600 mA |
Max power consumption | 33 W |
Max power consumption without attachments | 18 W |
Ethernet | |
10/100/1000 Ethernet ports | 10 |
Fiber | |
SFP+ ports | 1 |
Peripherals | |
Serial port | RJ45 |
Other | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals | |
Certification | CE/RED, EAC, ROHS |
Package Contains | |
Included parts | • 24V 1.5A power adapter • 4011 ears • K-60 kit |
