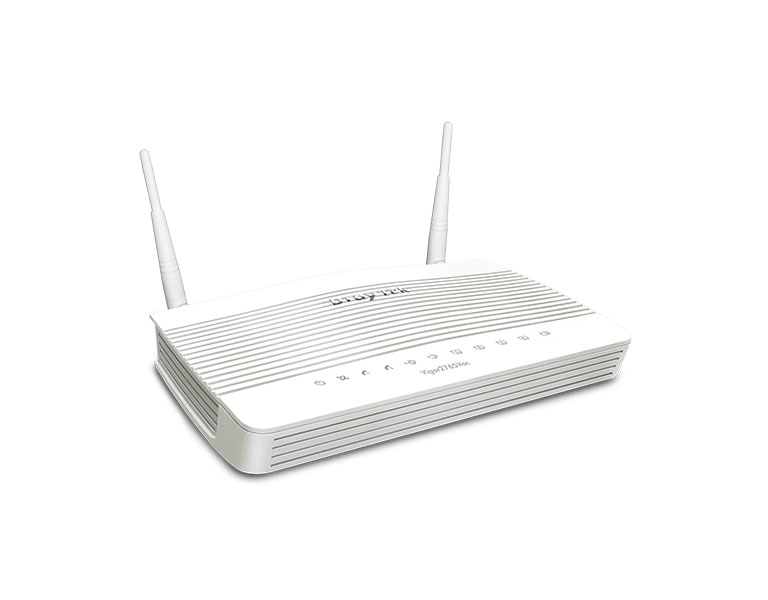

Vigor2765 Series is a VDSL2 35b supervectoring modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network. The series includes models with built-in 11ac Wave 2 Wi-Fi and VoIP gateway.

Features:
• VDSL2 35b - Download speed up to 300 Mbps
• 600 Mbps - Max. NAT Throughput
• 2 VPN - Support IKEv2, SSL VPN, and OpenVPN
• 50k Sessions - Recommended for a network of 30 hosts

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications

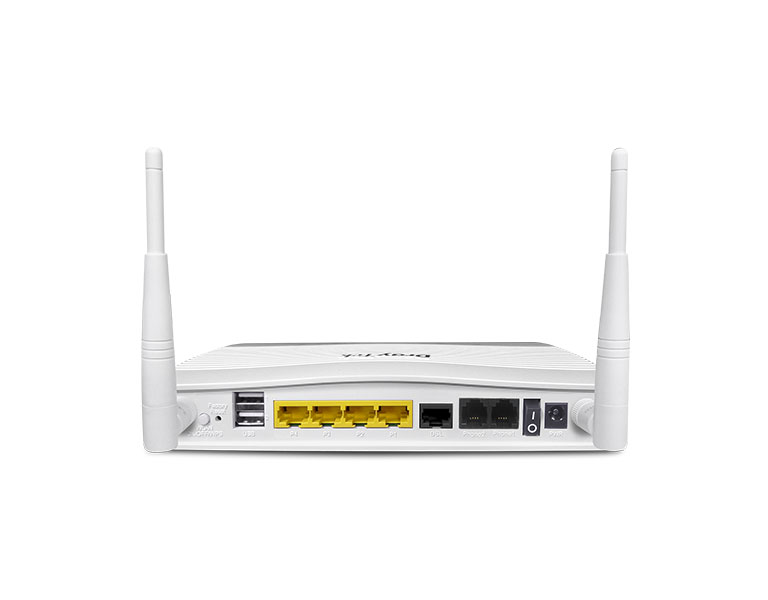

Interface
Fixed WAN Port	1 x RJ-11 for VDSL2 or ADSL2/2+
WAN/LAN Switchable Port	1x 10/100/1000Base-T, RJ-45 (P4)
Fixed LAN Port	3 x 10/100/1000Base-TX, RJ-45
USB Port	2 x USB 2.0
Performance
Max. Throughput on VDSL	300 Mbps
NAT Throughput	600 Mbps
IPsec VPN Performance	200 Mbps (AES 256 bits)
SSL VPN Performance	80 Mbps
Max. Number of NAT Sessions	50,000
Max. Concurrent VPN Tunnels	2
VDSL/ADSL
VDSL Standards	ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile	8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (Supervectoring)
VDSL Band Plan	997, 998
ADSL Standards	ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
ADSL2 Standards	ITU-T G.992.3, G.992.3 Annex M/J
ADSL2+ Standards	ITU-T G.992.5, G.992.5 Annex M/J
Internet Connection
IPv4	PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Multi-VLAN/PVC	•
WAN Failover	•
Connection Detection	ARP, Ping
WAN Data Budget	•
Dynamic DNS	•
DrayDDNS	•
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	2
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication	•
Port Mirroring	•
Local DNS Server	•
Conditional DNS Forwarding	•
Hotspot Web Portal	•
Hotspot Authentication	Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
Routing	Ipv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
High Availability	•
DNS Security (DNSSEC)	•
Multicast	IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
SMB File Sharing	• (Requires external storage)
VPN
LAN-to-LAN	•
Teleworker-to-LAN	•
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User Authentication	Local, RADIUS, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
Encryption	MPPE, DES, 3DES, AES128, AES192, AES256
Single-Armed VPN	•
NAT-Traversal (NAT-T)	•
Firewall & Content Filtering
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy	•
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (: subscription required)*
DoS Attack Defense	•
Spoofing Defense	•
Bandwidth Management
IP-based Bandwidth Limit	•
IP-based Session Limit	•
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization	•
Wireless LAN
Number of SSID	4 per radiο
Security Mode	WEP, WPA, WPA2, Mixed(WPA+WPA2)
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
WDS Repeater	• (5GHz only)
Access Control	Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
AirTime Fairness	•
Band Steering	•
MU-MIMO	•
Beamforming	•
WMM	•
VoIP
Protocol	SIP, RTP/RTCP, ZRTP
SIP Registrars	12
Dial Plan	Phone Book, Digit Map, Call Barring, Regional
Call Features	Call Waiting, Call Transfer, Scheduled DND, Hotline
Voice Codec	G.711 A/u law, G.726, G.729 A/B
Caller ID	FSK_ETSI, FSK_BELLCORE, DTMF
Management
Local Service	HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import	•
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege	•
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
Syslog	•
Managed by VigorACS	•
Central AP Management	2 VigorAP
