• Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services
• Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL
• Share files, media and printers with your friends or family using the multi-functional USB port

~This product is AnnexA for PSTN Line~

What This Product Does

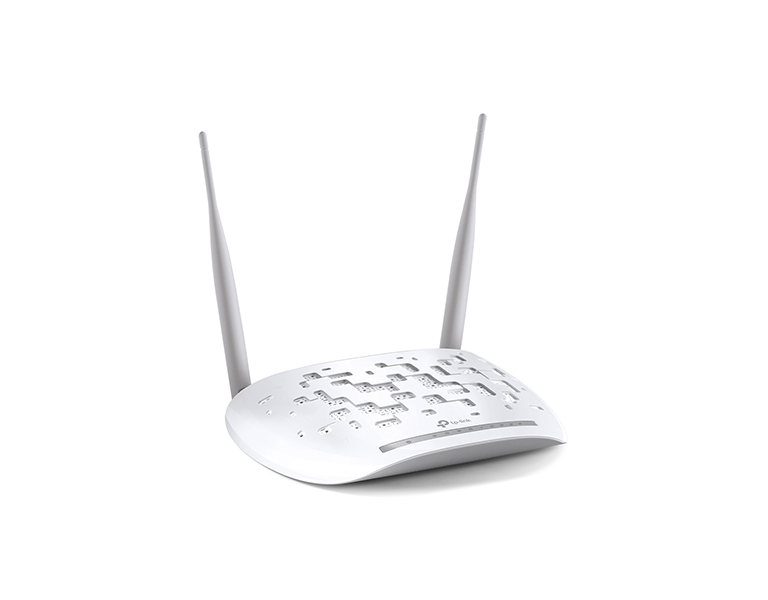

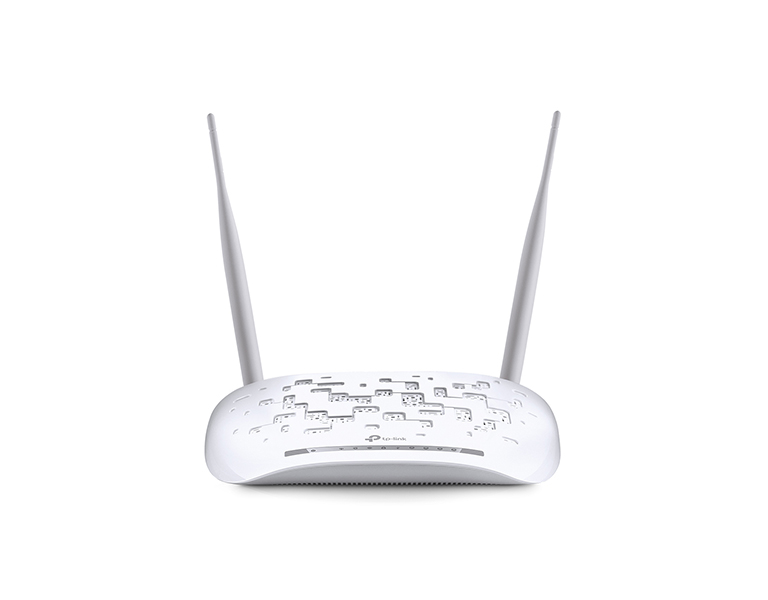

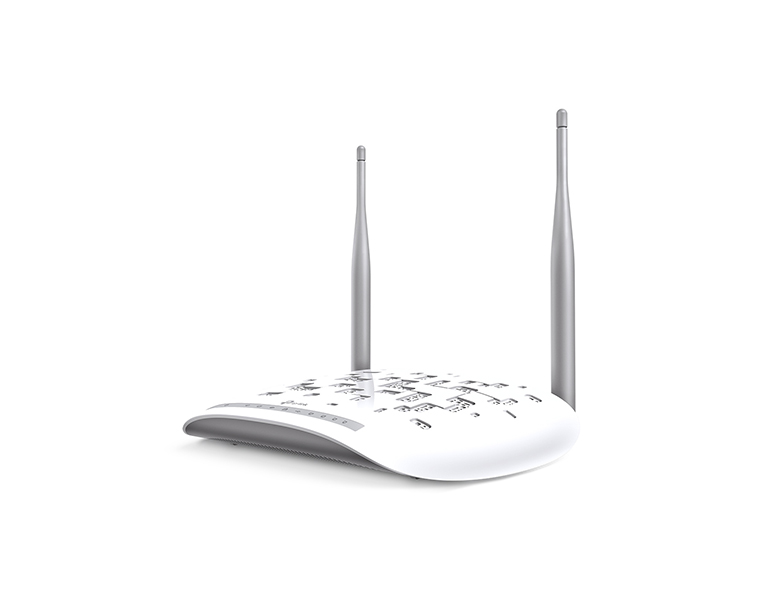

TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.

USB Sharing Port – Easy Sharing
Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.

Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Up to 100Mbps broadband speed
The TD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.

Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES

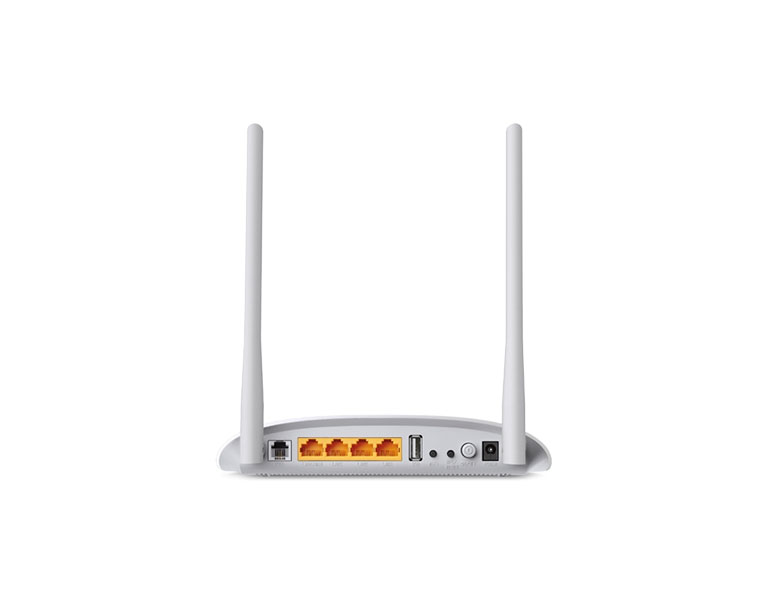

Interface	1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN port, 1 RJ11 port, 1 USB 2.0 Port
Button	WPS/Reset Button, Wi-Fi Button, Power On/Off Button
External Power Supply	9V/0.85A
Dimensions(WxDxH)	195 x 130 x 36mm
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards	ITU-T G.992.5
VDSL2 Standards	ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
Antenna Gain	2 x 4 dBi Fixed Omni-Directional Antennas
WIRELESS FEATURES
Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
Frequency	2.400-2.4835GHz
Signal Rate	300Mbps at 2.4GHz
Transmit Power	<20dBm(EIRP)
Wireless Function	Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security	Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
SOFTWARE FEATURES
Operation Modes	DSL Modem Router, 3G/4G Router, Wireless Router
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Quality of Service	WMM, Bandwidth Control (IP QoS)
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ, Manage Control
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs
Security	Firewall & Dos Protection, Service Filtering, Access Control, IP & MAC Binding, IPv6 Firewall
Management	Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
Guest Network	2.4GHz guest network
IPSec VPN	Supports up to 10 IPSec VPN tunnels
Protocols	Supports IPv4 and IPv6
OTHERS
Certification	CE, RoHS
Package Contents	DSL Modem Router TD-W9970 External DSL Splitter RJ11 DSL Cable RJ45 Ethernet Cable Quick Installation Guide Power Adapter
System Requirements	Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
