• HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
• Gigabit Port - provides secure wired networks for desktops, smart TVs or games consoles
• Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
• Integrated Power Socket - ensures no power outlet goes to waste
• Patented Power-Saving Mode - automatically reduces power consumption by up to 85%

1000 Mbps! Perfect for Bandwidth-Hungry Activities
Coming with advanced HomePlug AV2 technology, TL-PA7017P KIT provides users with high-speed data transfer rates of up to 1000 Mbps-ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streaming, online gaming, and large file transfers.

Gigabit Port for Ultra-Fast Data Transfer
With one Gigabit Ethernet port, TL-PA7017P KIT allows users to connect a bandwidth-intensive device to the internet at high speeds, ensuring smooth streaming for Ultra HD videos. This makes the TL-PA7017P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router. Plug another powerline adapter into a wall socket in another room. Connect it to your internet enabled device via Ethernet-and you’re done!

Extra Power Outlet for Additional Devices
Finding it hard to plug in your devices? The TL-PA7017P KIT has an integrated AC pass-through power socket. Your powerline adapter can now be used like a traditional electrical outlet. Plug your smart TV or game consoles into the adapter. No socket left to waste. The built-in noise filter helps prevent electrical signal noise from affecting your powerline performance.

Up to 85% Power Saved
The future’s looking green for powerline adapters. TL-PA7017P KIT’s practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduces its energy consumption by up to 85%*.
*Actual data will vary in different network conditions and environments.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES
Plug Type	EU
Standards and Protocols	HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power Consumption	Maximum: 3.26W, Typical: 2.58W, Standby: 0.83W
Compatibility	Compatible with any powerline adapters/extenders and routers
Coverage	Connects more devices by adding more adapters or connecting an access point or a switch
Range	300 meters/1,000 feet over electrical circuit
Interface	Gigabit Ethernet Port, Power Socket
Button	Pair Button
LED Indicator	Power, Powerline, Ethernet
Dimensions(WxDxH)	58 x 42 x 95 mm
SOFTWARE FEATURES
Modulation Technology	OFDM (PLC)
Encryption	Powerline Security: 128-bit AES
OTHERS
Certification	CE, RoHS

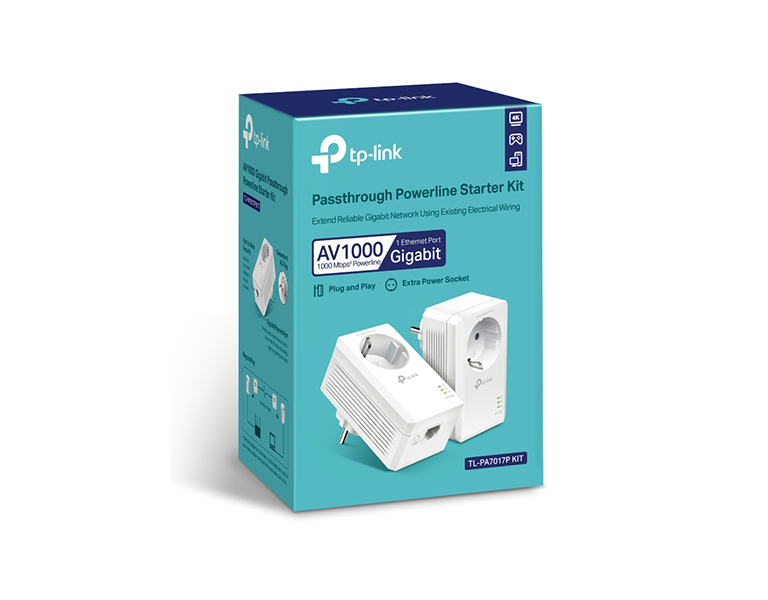

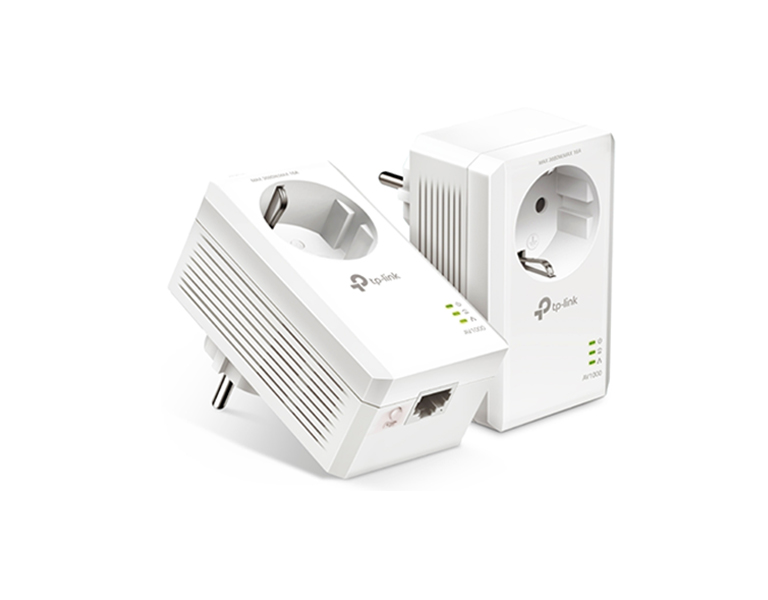

Package Contents	AV1000 Gigabit Passthrough Powerline Adapter 2 x TL-PA7017P 2 x Ethernet Cable Quick Installation Guide
System Requirements	Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
System Requirements for tpPLC Utility	Windows XP/Vista/7/8/8.1/10 and Mac OS X (10.7 or later)
Environment	Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
