• HomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps*
• 300 Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*
• Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
• 2 Ethernet Ports - Provides reliable high-speed wired connection for game consoles, smart TVs and more
• One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
• Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
• Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app

Extend Your Network to Any Room Using Existing Powerline

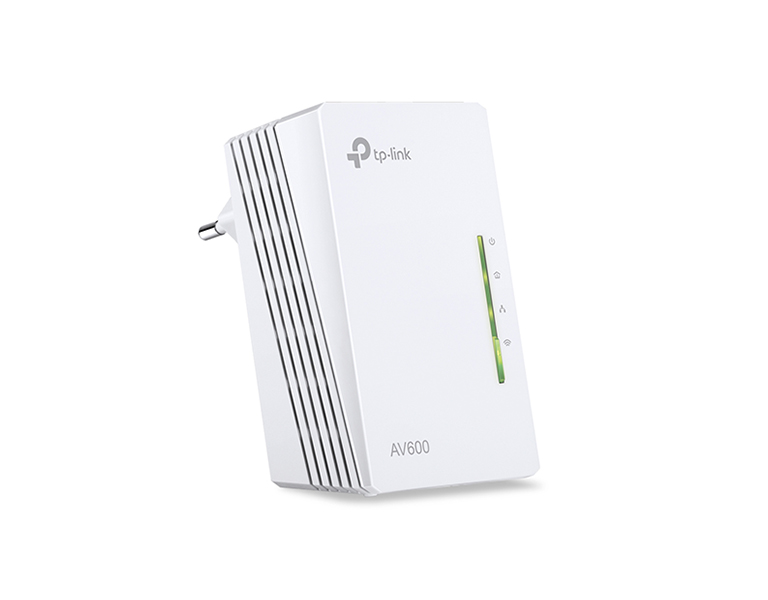

The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters and bringing wired and wireless network simultaneously to anywhere there is a power outlet.

Plug & Play, No Configuration Required
Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.
Pair for More Security
Press the “Pair” button on both adapters to create a more secure network.
* Powerline adapters need to be connected to the same electrical circuit.

Wi-Fi Auto-Sync for Unified Wi-Fi Network
Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

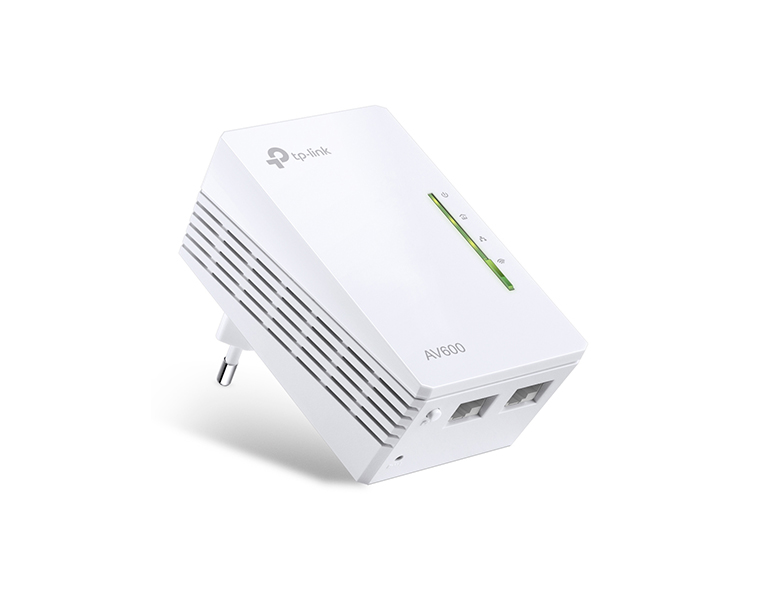

Two Ethernet Ports for Wired Connections
With two Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.

Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.

1. The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
2. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
3. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES
Transmission Speeds	Powerline: up to 600 Mbps Ethernet: 10/100 Mbps
Standards and Protocols	HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
Interface	2 Ethernet Ports
Plug Type	EU
Button	Pair, Reset, Wi-Fi Clone
LED Indicator	Power, Powerline, Ethernet, Wi-Fi
Dimension(WxDxH)	54 × 40 × 94 mm
IGMP	IGMP v1/v2/v3
Power Consumption	Maximum: 5.6W, Typical: 5.2W
Range	Up to 300 meters/1000 feet over existing electrical wiring
Compatibility	Compatible with all HomePlug AV & AV2 standard powerline adapters
SOFTWARE FEATURES
Modulation Technology	OFDM
Security	Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions Powerline: 128-bit AES Encryption
Management Tools	tpPLC-Scan the QR code to download TP-Link tpPLC App
OTHERS
Package Contents	AV600 Powerline Wi-Fi Extender: TL-WPA4220 Ethernet Cable Quick Installation Guide
Certification	CE, RoHS
System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility	Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environment	Operating Temperature: 0°C~40°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
