• HomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps^*• 300Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office^*• Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes.
• 2 Ethernet Ports - The TL-WPA4220 (Wi-Fi extender) provides reliable high-speed wired connection for game consoles, smart TVs and more.
• One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network.
• Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
• Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app

Extend Wired and Wireless Network to Any Room Using Existing Powerline

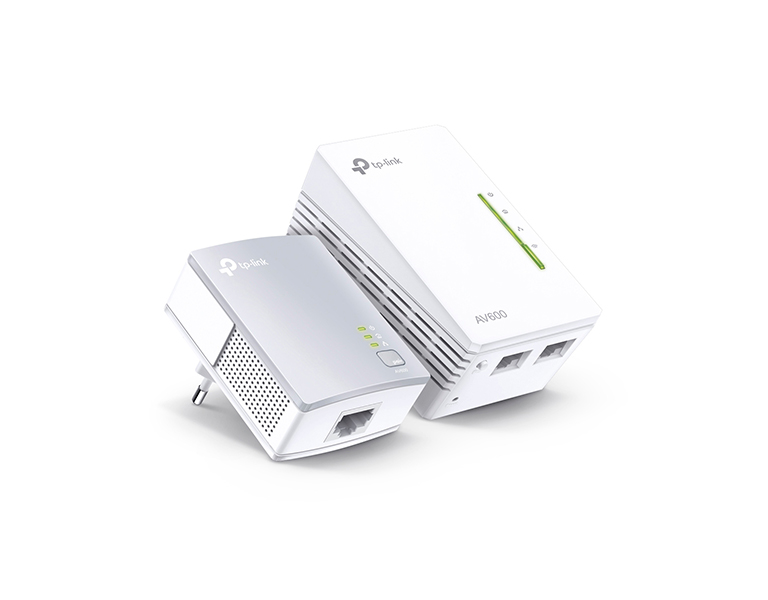

Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV600, the TL-WPA4220 KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired and wireless network to anywhere there is a power outlet.

AV600 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA4220 KIT provides stable and high-speed data transmissions of up to 600 Mbps* for ranges up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
*Listed HomePlug AV2 speed refers to the theoretical maximum physical-layer data transfer rate. Actual data speeds vary and are limited by the product’s Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues.

Plug and Play with No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps:
Step1 : connect TL-PA4010 to your router.
Step2 : plug in TL-WPA4220 wherever you need wired and wireless internet service.

Pair for more security
Press the “Pair” button on each adapter to create a more secure network.

Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

Two Fast Ethernet Ports for Wired Connections
With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. Two Ethernet cables are included in the box.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES
Standards and Protocols	HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
Transmission Speeds	Powerline: up to 600 Mbps Ethernet: 10/100 Mbps
Interface	TL-WPA4220: 2 Ethernet Ports TL-PA4010: 1 Ethernet Port

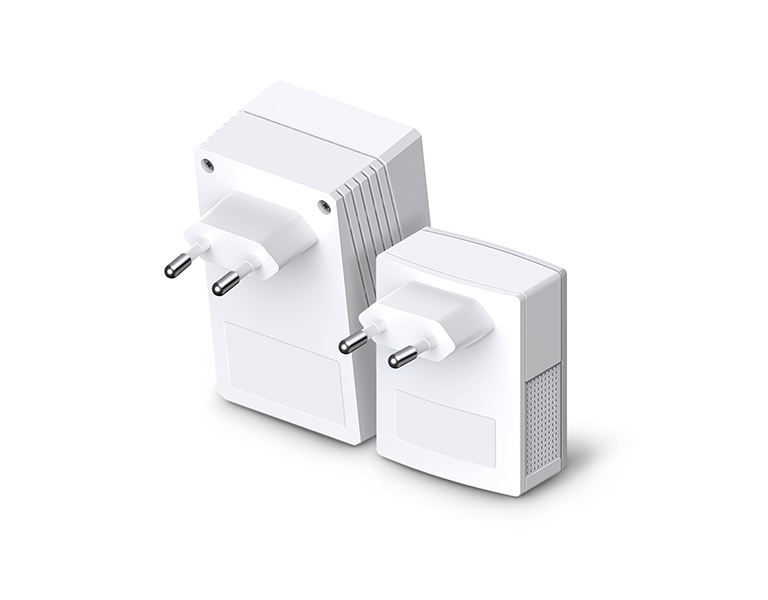

Plug Type	EU
Button	Pair, Reset, Wi-Fi Clone
LED Indicator	Power, Powerline, Ethernet, Wi-Fi
Dimensions (WxDxH)	TL-WPA4220: 54 x 40 x 94 mm TL-PA4010: 52 x 28.5 x 65 mm
IGMP	IGMP v1/v2/v3
Power Consumption	TL-WPA4220: Maximum: 5.6W, Typical: 5.2W TL-PA4010: Maximum: 2.6W, Typical: 2.3W
Range	Up to 300 meters/1000 feet over existing electrical wiring
Compatibility	Compatible with all HomePlug AV & AV2 standard powerline adapters
SOFTWARE FEATURES
Modulation Technology	OFDM
Security	Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions Powerline: 128-bit AES Encryption
OTHERS
Package Contents	AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010 Ethernet Cable x 2 Quick Installation Guide
Certification	CE, RoHS
System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility	Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
