MikroTik CRS318-1Fi-15Fr-2S-OUT netPower 15FR Outdoor 18-port Switch PoE, SFP

Product Code:
CRS318-1Fi-15Fr-2S-OUT
Manufacturer Mikrotik
Sales price: 186,00 €(Includes 24% VAT)
Sales price without TAX:150,00 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

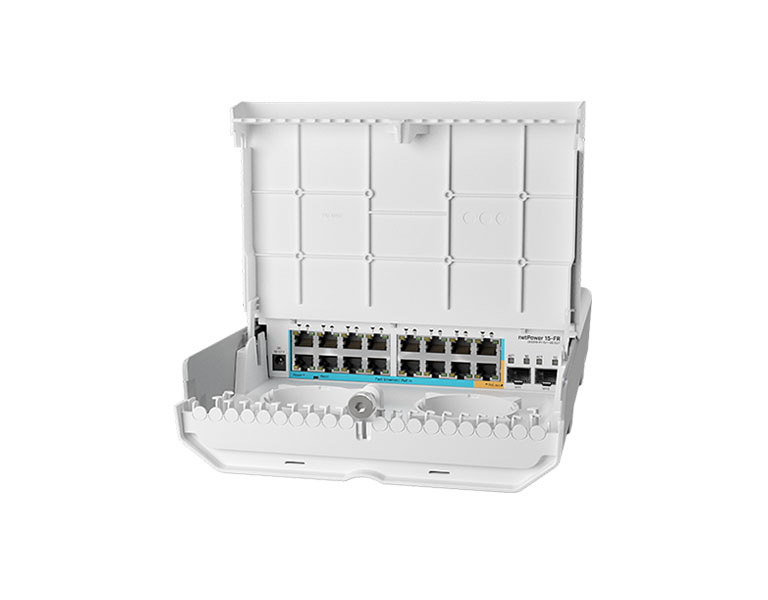

MikroTik CRS318-1Fi-15Fr-2S-OUT netPower 15FR Outdoor 18-port Switch with 15 reverse PoE ports, SFP, RouterOS/SwOS L5

CAUTION!!! Package does not include power supply!!!

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.
There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Product code CRS318-1Fi-15Fr-2S-OUT
Architecture ARM 32bit
CPU 98DX224S
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 304 x 212 x 71 mm

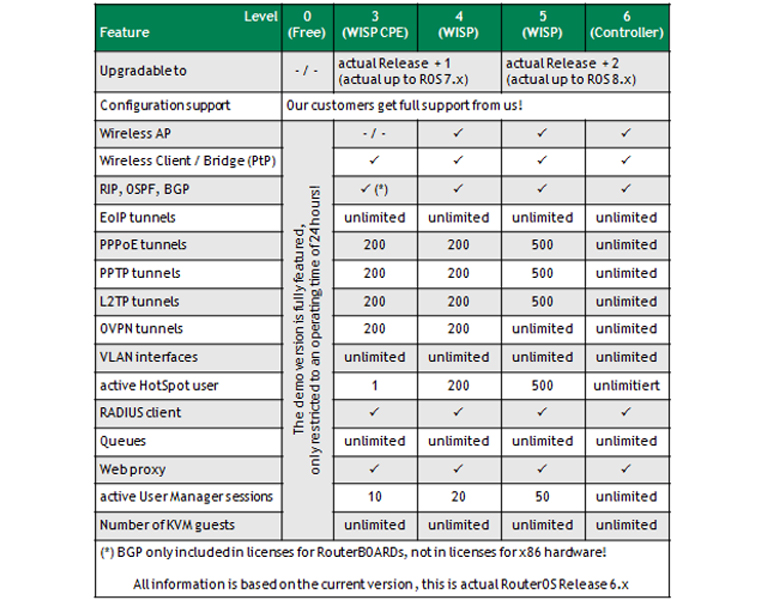

License level 5
Operating System SwOS / RouterOS (Dual boot)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Powering
PoE in Ports 1 - 14 and 16
PoE in input Voltage 18-57 V (recommended 36-57V)
Number of DC inputs 16 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 29 W
Max power consumption without attachments 10 W
PoE out Passive PoE
Max out per port output (input < 30 V) 0.75 A
Max out per port output (input > 30 V) 0.5 A
Max total out (A) 0.75 A
Ethernet
10/100 Ethernet ports 16
Fiber
SFP ports 2
Other
CPU temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE/RED, EAC, ROHS
There are yet no reviews for this product.
