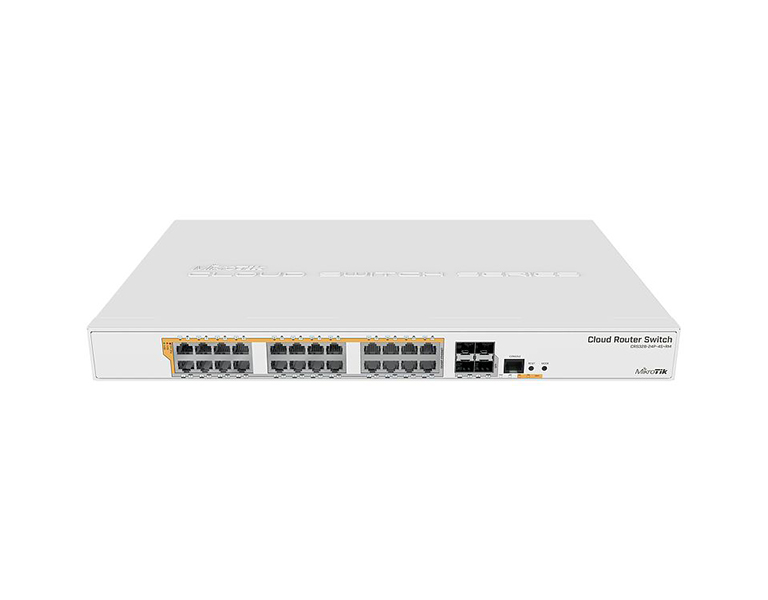

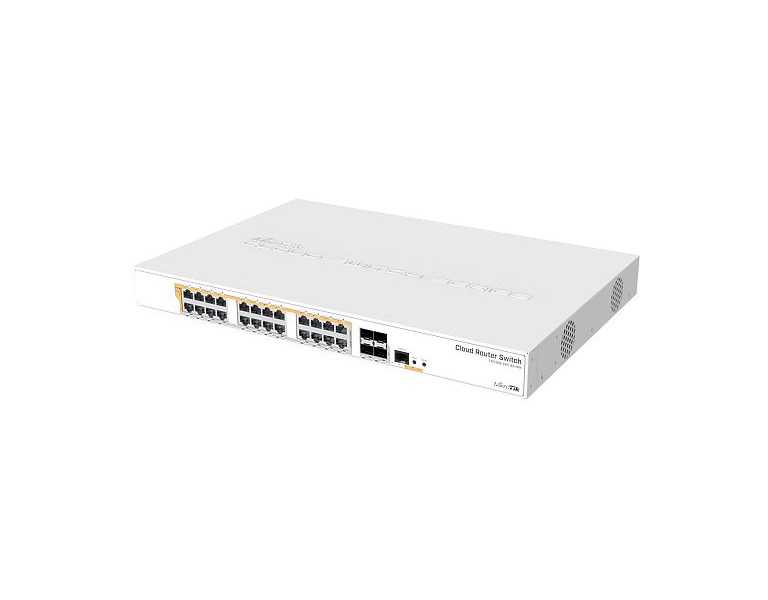

MikroTik CRS328-24P-4S+RM 800MHz CPU, 24xGLAN, 4xSFP+, RouterOS L5




CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 "PoE" / Type 2 "PoE+") with auto-sensing. The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W with high voltage, and 26 W with low voltage power output.

The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Product code CRS328-24P-4S+RM
Architecture ARM 32bit
CPU 98DX3236
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 443 x 305 x 44 mm
License level 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20°C to 60°C
Powering
PoE out 802.3af/at
PoE-out ports Ether1-Ether24
Number of AC inputs 1
AC input range 100-240
Max out per port output (input > 30 V) 450 mA
Max out per port output (input < 30 V) 1000 mA
Max total out (A) 20 A
Max power consumption 494 W
Max power consumption without attachments 44 W
Ethernet
10/100/1000 Ethernet ports 24
Fiber
SFP+ ports 4
Peripherals
Serial port RJ45
Other
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
Certification & Approvals
Certification CE/RED, EAC, ROHS
