MikroTik CRS328-4C-20S-4S+RM 800MHz CPU, 20xSFP, 4xSFP+, RouterOS L5

Product Code:
CRS328-4C-20S-4S+RM
Manufacturer Mikrotik
Sales price: 480,00 €(Includes 24% VAT)
Sales price without TAX:387,10 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
MikroTik CRS328-4C-20S-4S+RM 800MHz CPU, 512MB RAM, 20xSFP, 4xSFP+, 4xCombo ports, RouterOS L5




The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

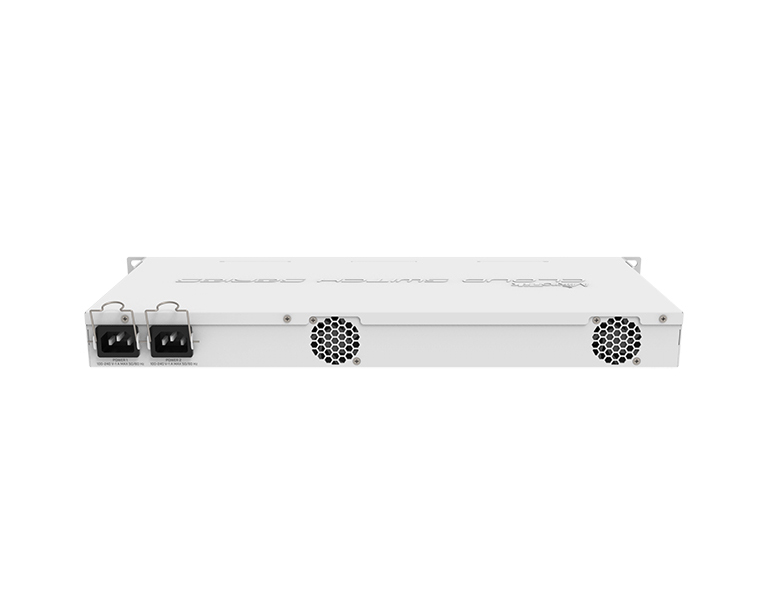

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Product code CRS328-4C-20S-4S+RM
Architecture ARM 32bit
CPU 98DX3236
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 443 x 200 x 44 mm

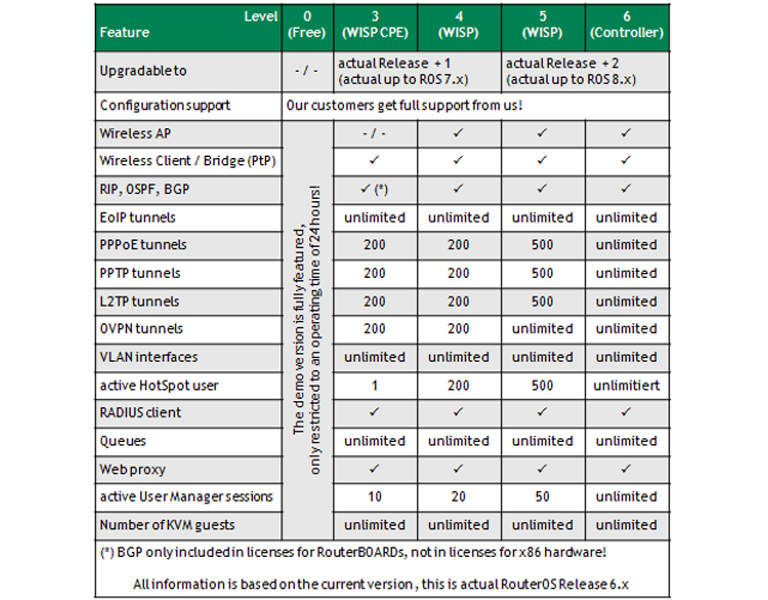

License level 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20°C to 60°C
Powering
Number of AC inputs 2
AC input range 100-240
Max power consumption 43 W
Ethernet
Ethernet Combo ports 4
Fiber
SFP ports 20
SFP+ ports 4
Peripherals
Serial port RJ45
Other
CPU temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals
 Certification CE/RED, EAC, ROHS
