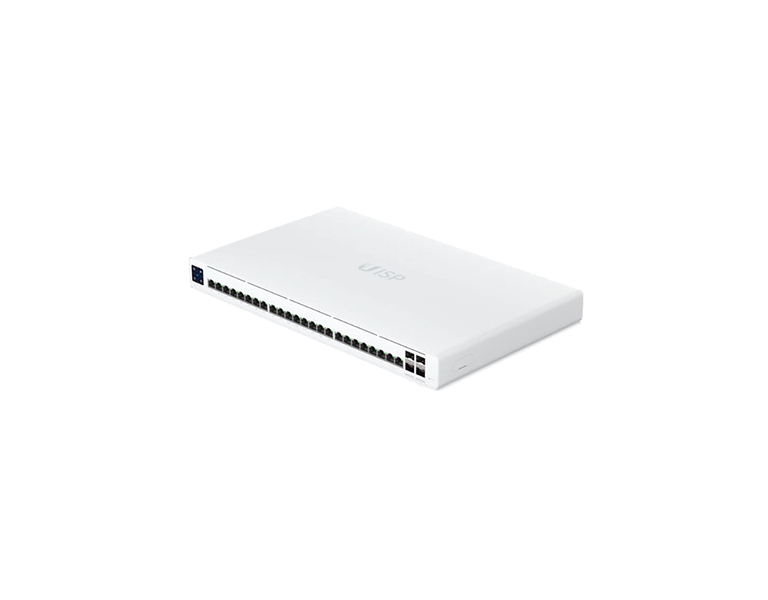

Ubiquiti UISP Switch Pro
UISP-S-Pro is an ideal switch for deployment between ISP providers. It is a fanless L2 PoE switch with 24x Gigabit LAN and 4x SFP/SFP+ ports for further expansion using optical fiber. The UISP Switch is a cost-effective solution where gigabit wireless speeds are needed quickly and affordably. With a total 220W PoE budget and a maximum of 30W/port (4-wire pairs) or 15W/port (2-wire pairs), the switch provides considerable power to each connected radio in the PoE ports . For larger deployments, pair it with UISP Console to create a cohesive routing and switching hub. The UISP Switch is ONLY managed by the UISP App, a centralized platform where you can monitor and manage all your UISP devices.
Features:
• (24) Gigabit LAN, of which 16 ports support passive 27V PoE and power supply via 2 or 4 pairs of wires
• (4) 1/10Gb SFP+ port
• 220W PoE budget, max. 30W/port (4-wire pairs), max. 15W/port (2-wire pairs)
• Silent operation without a fan
• Mounting in a 19" rack - the kit is included in the package
• 1.3" touch screen
• Easy setup using Bluetooth via mobile app UISP 1.5.7 and above
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Mechanical | |
| Dimensions | 442.4 x 267.5 x 43.7 mm |
| Weight | 4 kg |
| Enclosure material | SGCC steel, polycarbonate/acrylonitrile butadiene styrene |
| Hardware | |
| Total non-blocking throughput | 64 Gbps |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| Networking interface | (24) GbE RJ45 LAN ports (4) 1/10G SFP+ ports |
| Management interface | EthernetIn-Band Bluetooth |
| Power Method | (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) Power TransPort DC input 27V DC, 9.3A |
| Power Supply | AC/DC, Internal, 250W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (ExcludING PoE output) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| LCM display | (1) 1.3" touchscreen |
| Operating temperature | -10 to 50° C |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16 |
| Total available PoE | 220W |
| Max. Passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27VDC |
| LEDs | |
| RJ45 data ports | PoE Speed/link/activity |
| SFP+ data ports | Speed/link/activity |
| Software | |
| Management application | UISP: Version 1.5.7 and later |
