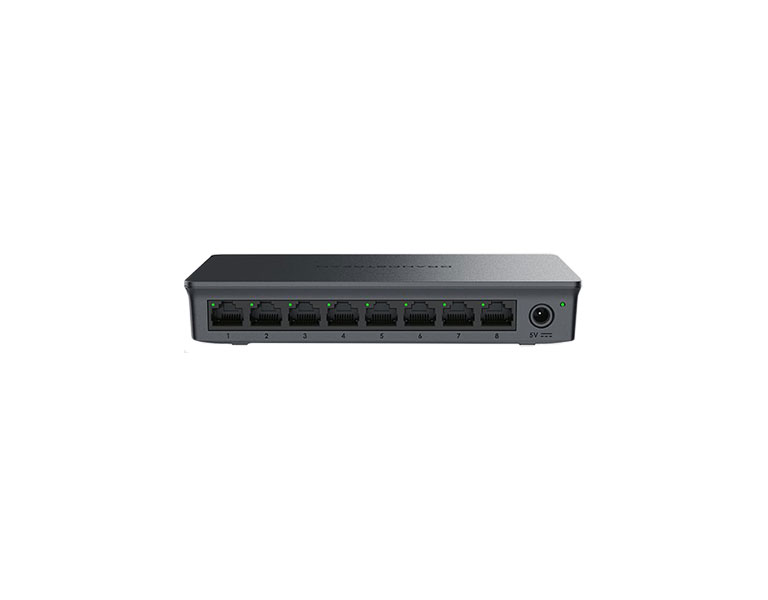

The GWN7701 are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7701 to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The plug-and-play GWN7701 are the ideal unmanaged network switches for home offices and small-to-medium businesses.
Features:
• 8 Gigabit RJ45 ports
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity/Speed Per device: Power
• Auto MDI/MDIX crossover for all ports
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Unlink clear FDB Feature
• QoS - Supports Default Strict Priority when present
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 36 months |
Specifications | |
Gigabit Ports | 8 |
Enclosure | Plastic |
Mounting | Desktop/ Wall-Mount |
Network Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Port Feature | 8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
LED Indicators | Per port: Link/Activity Green Per device: Power Green |
Mac Address Table | 8K |
Switching Capacity | 16Gbps |
Jumbo Frame | 9KB |
Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS Unlink clear FDB Feature IGMP: •IGMP Fast-Leave •IGMP Snoop •Route Port Autolearn •Query Refresh Member Port |
Power Adapter | External 5VDC/0.6A |
Max Power Consumption by Base System | 2.7W |
Environmental | Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
Dimensions (L x W x H) | Unit: 164 x 80 x 30mm Package: 202 x 166 x 54mm |
Weight | Unit Weight: 0.17KG Entire Package: 0.38KG |
Package | 1x Switch 1x Power Adapter 1x QIG |
Compliance | FCC, CE, RCM, IC, UKCA |
