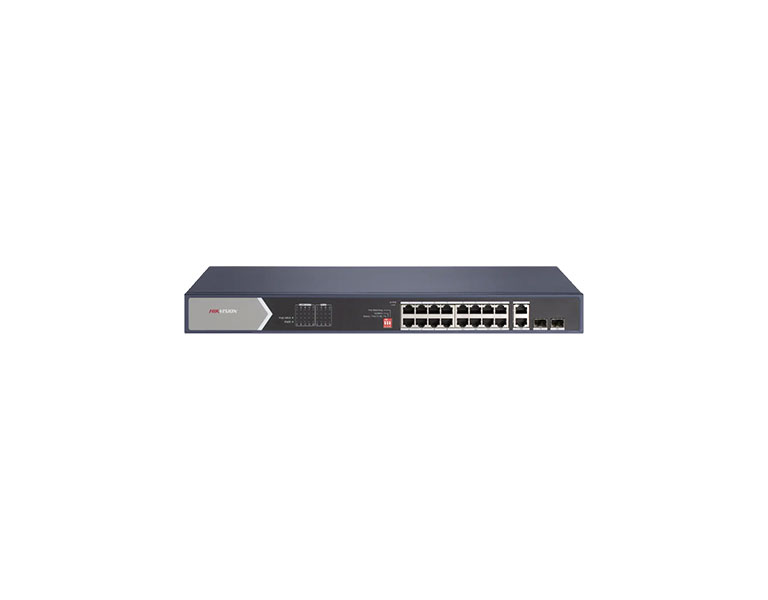

DS-3E0520HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

• 12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports.
• IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

Specifications
Network parameters
Port number	12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default), Extend mode Isolation mode, PoE watchdog mode
Ports for long-distance transmission	Ports 13 to 16
MAC address table	8 K
Switching capacity	40 Gbps
Packet forwarding rate	29.76 Mpps
Internal cache	4.1 Mbits
PoE power supply
PoE standard	Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 5 to 16: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 5 to 12: Ethernet cables 1/2/3/6 provide power supply. Ports 1 to 4 and 13 to 16: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE port	Ports 1 to 16
Hi-PoE port	Ports 1 to 4
Max. port power	Ports 1 to 4: 90 W Ports 5 to 16: 30 W
PoE power budget	225 W
Dialing function
Long range	Ports 13 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
Port isolation	Ports 1 to 16: port isolation mode to improve network security.
PoE watchdog	Ports 1 to 16: auto detect and restart the cameras that do not respond.
General
Shell	Metal material
Net weight	2.79 kg
Dimension (LxHxD)	440 mm × 220.8 mm × 44 mm
Operating temperature	-10 °C to 55 °C
Storage temperature	-40 °C to 85 °C
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	100 to 240 VAC, 50/60Hz, Max. 4 A
Power consumption in idle	< 25 W
Max. power consumption	250 W
Power source	250 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
