• 5x 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing and desktop design
• Plug and play, no configuration required
• Fanless design ensures quiet operation

Let LiteWave Bring You Lighter Network Life

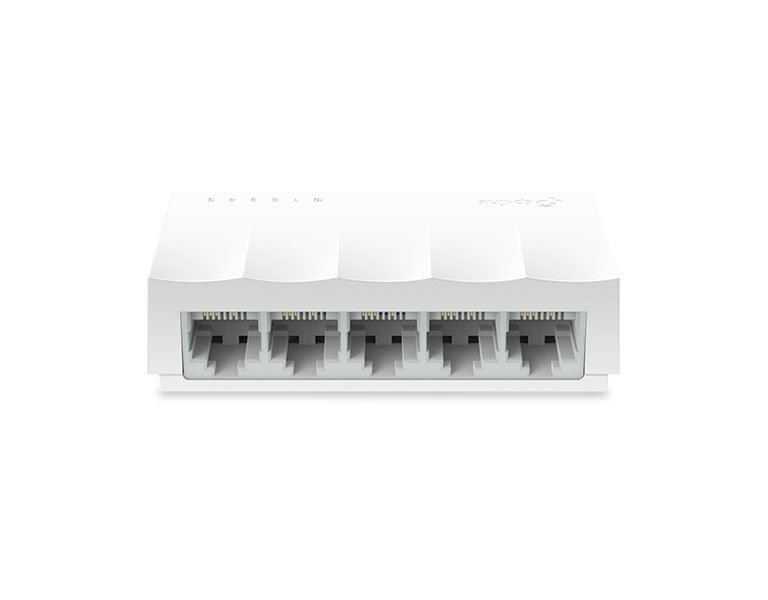

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Plug and Play
1) Connect to Power
2) Connect the devices
3) Enjoy

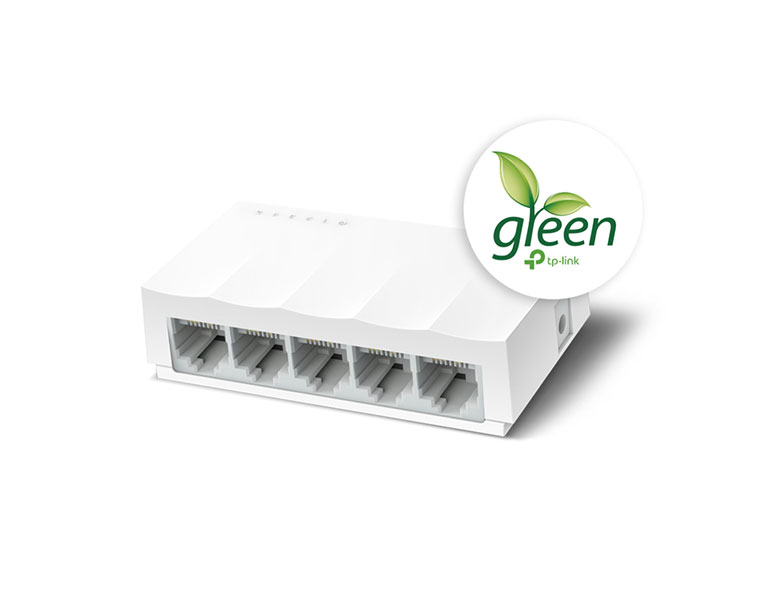

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

SPECIFICATIONS
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Forwarding Mode	Store and forward
Interface	5 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Shell material	Plastic
Connector type	Plastic
Switching Capacity	1.0Gbps
MAC Address Table	2K
Packet Forwarding Rate	0.7Mpps
Jumbo Frame	2KB
Advanced Features	Green Technology; 802.3x Flow Control
Max Power Consumption	1.65W
Max Heat Dissipation	5.627Btu/hr
LEDs	Power, Link/Act (indicator per port built into RJ45 port)
Power Supply (External Adapter)	5V/0.6A
Dimensions(WxDxH)	83.6 x 45.7 x 22.8 mm
Wall-Mounting	No
Certification	CE, RoHS
Package Contents	5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~95% non-condensing
