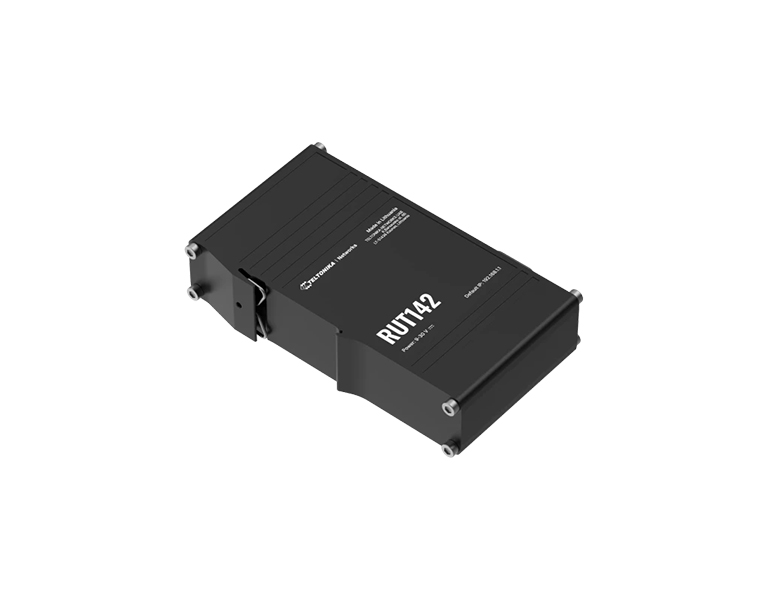

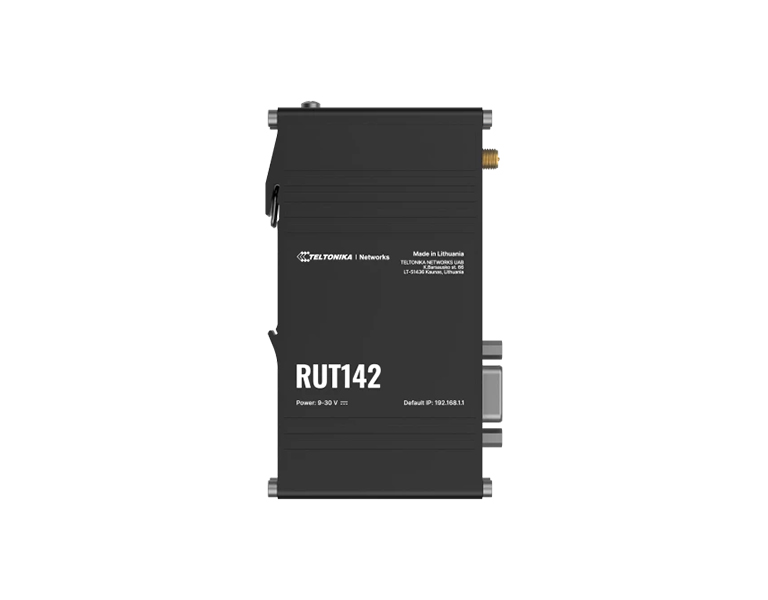

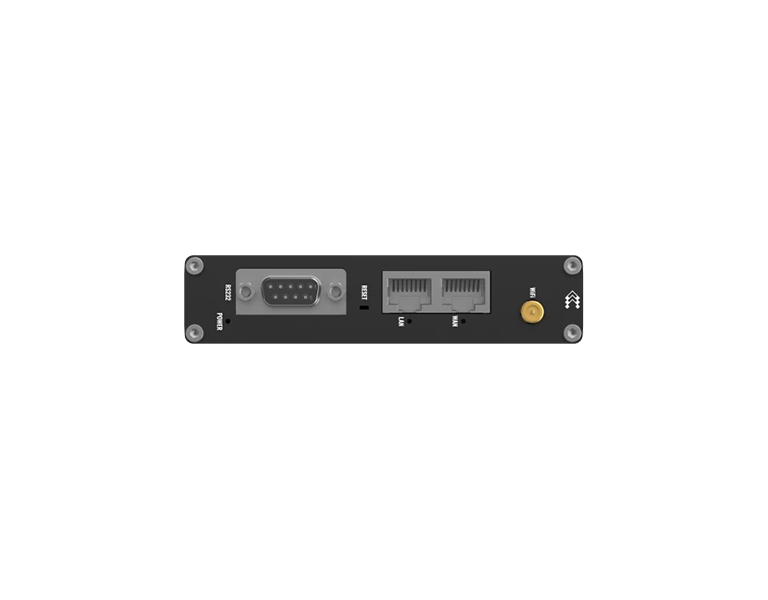

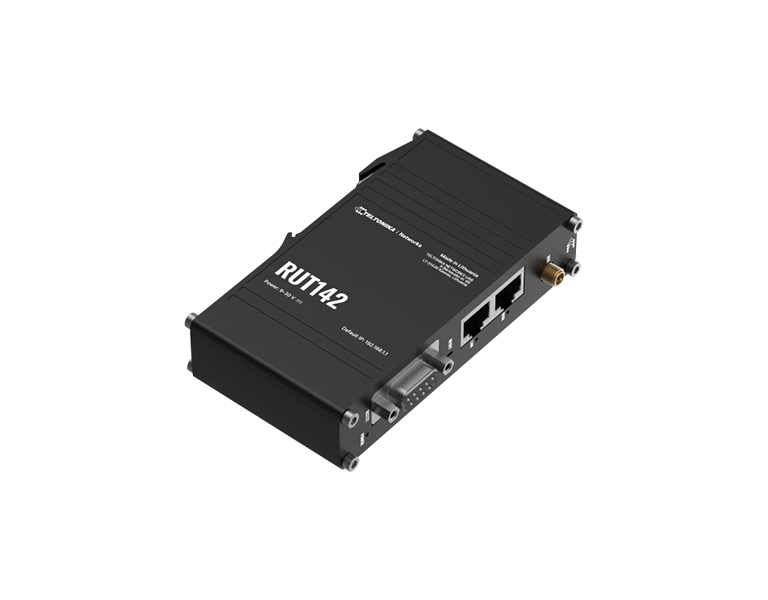

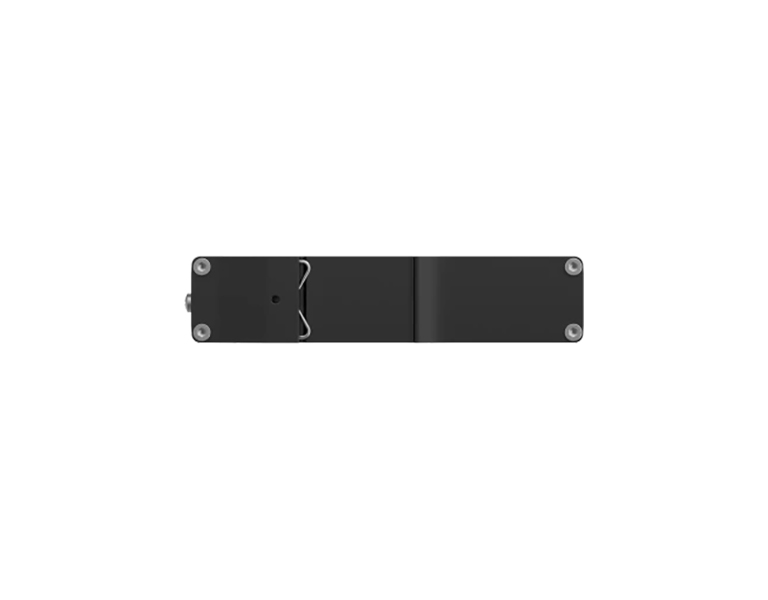

Teltonika RUT142 RS232 Industrial Router
.:ATTENTION!! THE PACKAGE DOES NOT INCLUDE A POWER SUPPLY WHICH MUST BE PURCHASED SEPARATELY ACCORDING TO POWER SUPPLY NEEDS:.
Each Teltonika Networking device comes with 1 month of free RMS service
The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Hardware | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Storage | 16 MB serial NOR flash |
| Memory | 128 MB, DDR2 |
| Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN, 1 x LAN |
| Powering options | 3-pos plugable terminal block, 9-30 VDC |
| Antenna connectors | 1 x RP-SMA for Wi-Fi |
| WiFi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Other | 1 x Grounding screw |
| Status LEDs | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| RS232 | 1 x DB9 socket |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with integrated din rail |
| Dimensions(WxHxD) | 113.10 x 25 x 68.6 mm |
| Weight | 149.2 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and management | WEB UI, CLI, SSH, SMS, Call, Email, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity |
| Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes |
| Modbus | TCP Server, TCP Client, RTU(RS232) |
