Teltonika TSW200 Industrial Unmanaged PoE+ Switch

Product Code:
TSW200
Manufacturer Teltonika
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

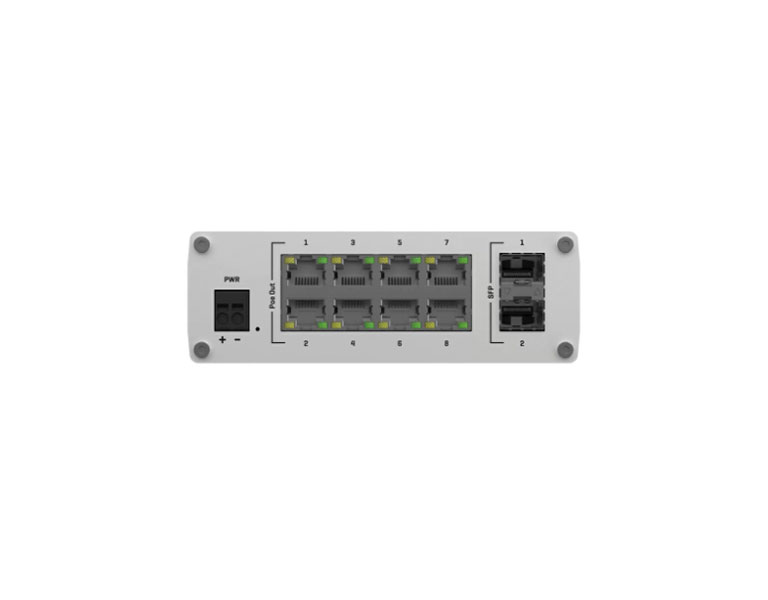

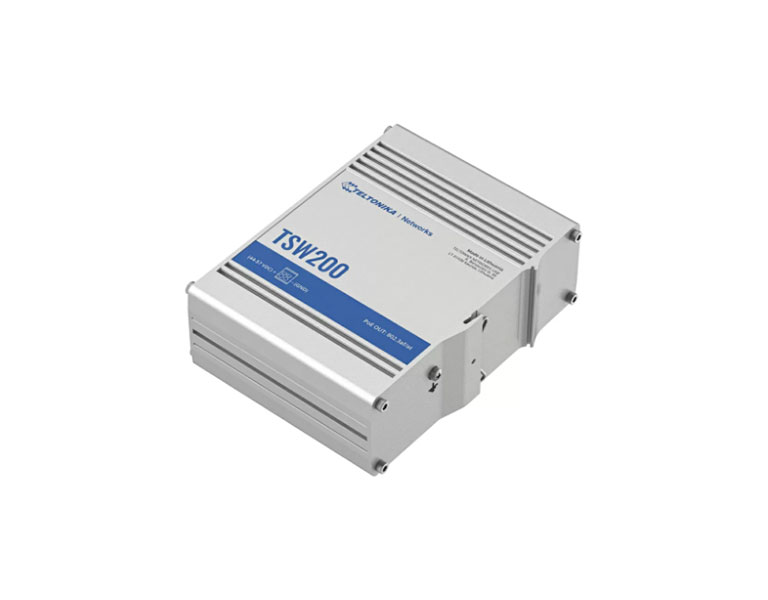

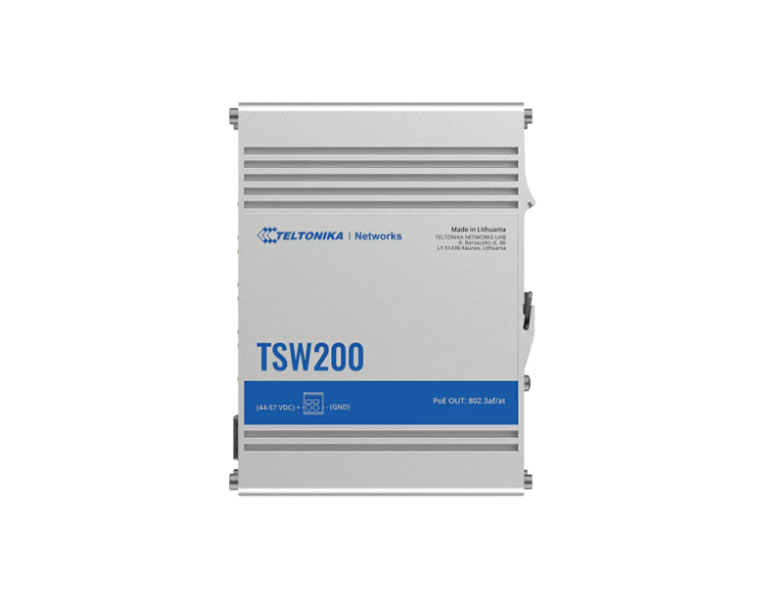

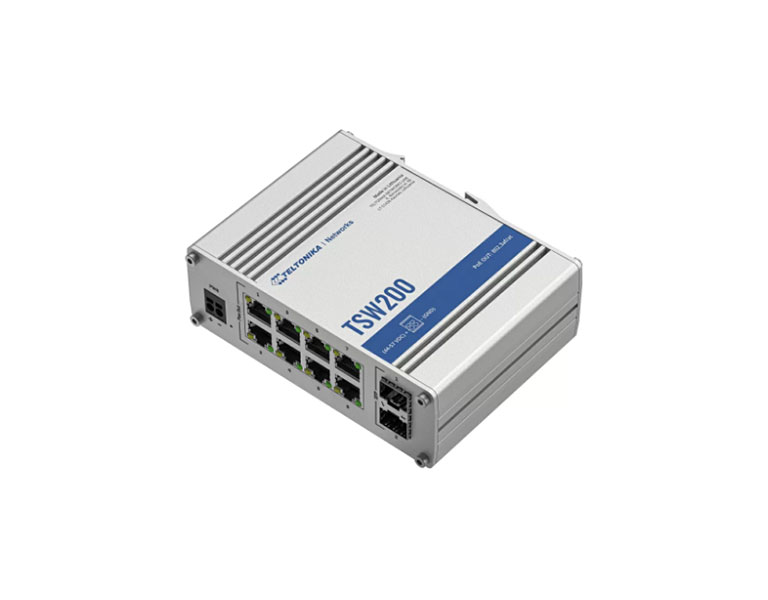

Teltonika TSW200 Industrial Unmanaged PoE+ Switch

.:ATTENTION!! THE PACKAGE DOES NOT INCLUDE A POWER SUPPLY WHICH MUST BE PURCHASED SEPARATELY ACCORDING TO POWER SUPPLY NEEDS:.


TSW200 is an unmanaged industrial switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months




Specifications
Ethernet
LAN 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fiber 2 x SFP ports
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
PoE
PoE ports Port 1 - 8
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W
Performance Specifications
Bandwidth (Non-blocking) 20 Gbps
Packer buffer 128 KB
MAC address table size 2K entries
Jumbo frame support Jumbo frame support
Power
Connector 2-pin industrial DC power socket
Input voltage range 7 – 57 VDC
PoE-out input voltage range 44 – 57 VDC
Power consumption Idle: 1.81 W
Max: 5.5 W
PoE Max: 245.5 W
Physical Interfaces
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fiber 2 x SFP ports
Status LEDs 1 x Power LED
16 x LAN status LEDs
2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw
Physical Specification
Casing material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 517 g
Mounting options DIN rail or wall mounting (additional kit needed), flat surface placement
Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Package contains • TSW200
• QSG (Quick Start Guide)
• Packaging box
