Specifications |
Hardware |
Standards and Protocols |
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
Interface |
2 Gigabit SFP WAN/LAN ports 1 Gigabit WAN port 1 Gigabit LAN/WAN port 8 Gigabit LAN ports |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
Button |
Reset button |
Power Supply |
53.5VDC/2.43A Adapter |
Flash |
8Mb Nor + 4 GB EMMC |
DRAM |
1 GB DDR3 |
PoE |
8 ports PoE+ output, 110 W PoE Budget |
Surge Protection |
4 kV surge protection |
Dimensions ( W x D x H ) |
226 × 131 × 35 mm |
Fan |
Fanless |
Enclosure Materials |
Steel |
Installation |
Desktop/Wall-mount |
SDN Support |
Integrated Controller Software |
Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration Management up to 1 Router, 2 Switches and 10 EAPs |
Performance |
Concurrent Session |
24,98 |
New Sessions /Second |
1,9 |
Static IP NAT Throughput (Upload /Download) |
935.5 Mbps / 942.1 Mbps |
DHCP NAT Throughput (Upload /Download) |
940.2 Mbps / 941.7 Mbps |
PPPoE NAT Throughput (Upload /Download) |
913.1 Mbps / 935.2 Mbps |
L2TP NAT Throughput (Upload /Download) |
545.0 Mbps / 912.7 Mbps |
PPTP NAT Throughput (Upload /Download) |
523.0 Mbps / 912.8 Mbps |
66 Byte Packet forwarding rate |
(Upload / Download) |
154,069 pps / 156,977 pps |
1,518 Byte Packet forwarding rate |
(Upload / Download) |
81,193 pps / 81,193 pps |
IPSec VPN Throughput (AES256) |
168.5 Mbps |
OpenVPN |
34 Mbps |
L2TP VPN Throughput |
Unencrypted: 845.3 Mbps Encrypted: 333.2 Mbps |
PPTP VPN Throughput |
Unencrypted: 1012.6 Mbps Encrypted: 401.4 Mbps |
Basic Functions |
WAN Connection Type |
Static IP Dynamic IP PPPoE PPTP L2TP |
DHCP |
DHCP Server DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
IPTV |
IGMP v2/v3 Proxy |
IPv6 |
√ |
VLAN |
802.1Q VLAN |
Transmission |
Load Balance |
Intelligent Load Balance Application Optimized Routing Link Backup Online Detection |
NAT |
Multi-Net NAT Virtual Server NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
Routing |
Static Routing Policy Routing |
Session Limit |
IP-based Session Limit |
Bandwidth Control |
IP-based Bandwidth Control |
VPN |
IPSec VPN |
20 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 SHA1, SHA2 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
PPTP VPN |
PPTP VPN Server PPTP VPN Client (10)1 16 Tunnels PPTP with MPPE Encryption |
L2TP VPN |
L2TP VPN Server L2TP VPN Client (10)1 16 Tunnels L2TP over IPSec |
OpenVPN |
OpenVPN Server OpenVPN Client (10)1 16 OpenVPN Tunnels |
Security |
Attack Defense |
TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
Filtering |
URL Filtering |
Access Control |
Source/Destination IP Based Access Control |
Authentication |
Web Authentication |
No Authentication Simple Password Hotspot (Local User / Voucher/ SMS / Radius) External Radius Sever External Portal Sever Facebook |
Management |
Service |
Dynamic DNS (Dyndns, No-IP) |
Maintenance |
Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Syslog Support |
Others |
Certification |
CE, FCC, RoHS |
Package Contents |

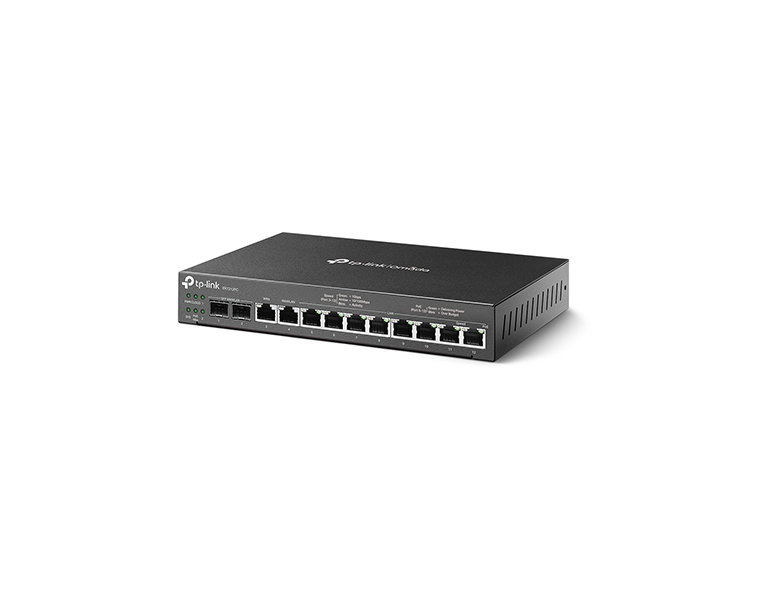

ER7212PC, Power Adapter, Power Cord, Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
Environment |
Operating Temperature: 0 °C to 45 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
