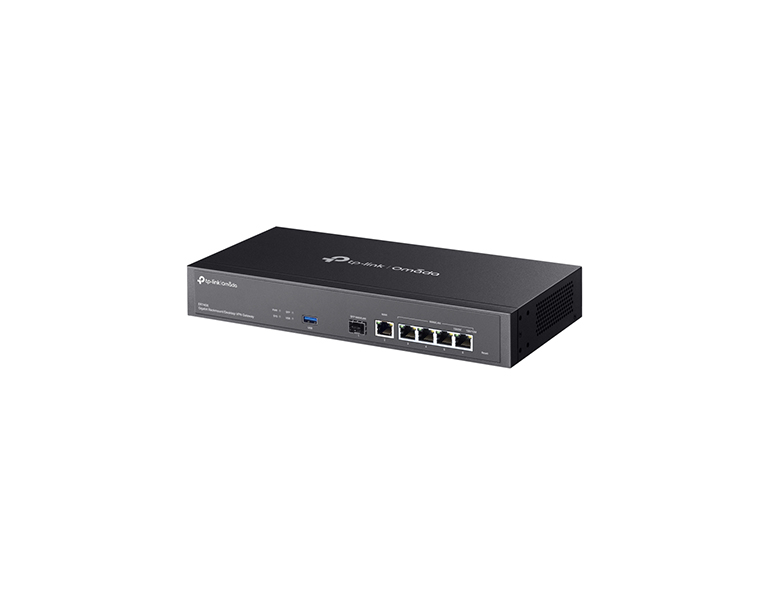

• 1× Gigabit SFP WAN/LAN port
• 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
• 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE^§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada app*
• DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
• Rackmount/Desktop

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

DPI (Deep Packet Inspection)
Leverage Deep Packet Inspection (DPI) to effectively block or prioritize specific applications for enhanced security and optimized bandwidth allocation. Easily manage internet access rights and policies through IP/MAC/Location/URL Filtering and Access Control Lists (ACL).

Attack Prevention with 4000+ Signature Rules
Enhance threat detection and defense with the integrated IDS/IPS engine. Benefit from continuous protection with an extensive attack prevention signature database, featuring over 4,000 regularly updated signature rules.

DoS/DDoS Protection
Automatically detect and block Denial of Service (DoS) attacks, including TCP/UDP/ICMP Flooding, Ping of Death, and related threats, ensuring uninterrupted network performance.

*These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
**For PPTP VPN and L2TP VPN, ER7406 can connect with up to 10 VPN servers. For OpenVPN, ER7406 can connect with up to 5 VPN servers
^§These functions are supported only in Standalone Mode.
^△At least one WAN/LAN port needs to function as a LAN port.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface	1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN port 4 Gigabit LAN/WAN ports
USB	1 USB3.0 (supports USB LTE dongle and USB Storage)
Fan Quantity	Fanless
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button

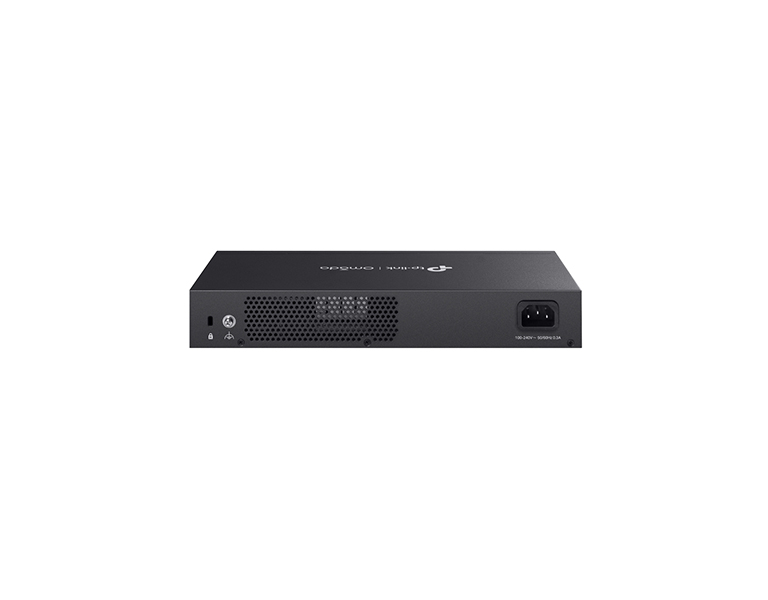

Power Supply	100-240VAC,50/60Hz
Flash	128 MB NAND
DRAM	512 MB DDR4
LED	PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Max Power Consumption	7.5 W (with USB 3.0 connected) 4.5 W (without USB 3.0 connected)
Surge Protection	4 kV surge protection
Mounting	Desktop/ Rackmount
Dimensions(WxDxH)	294 × 140 × 44 mm
SDN SUPPORT
Hardware Controller (OC200/OC300)	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
Software Controller
PERFORMANCE
Concurrent Session	150,000
New Sessions / Second	5,300
IPS Throughput	TCP: 229 Mbps UDP: 188 Mbps
DPI Throughput	TCP: 933 Mbps UDP: 927 Mbps
Static IP NAT Throughput (Upload / Download)	945.3 Mbps / 940.5 Mbps
DHCP NAT Throughput (Upload / Download)	939.6 Mbps / 940.9 Mbps
PPPoE NAT Throughput (Upload / Download)	943.6 Mbps / 940.9 Mbps
L2TP NAT Throughput (Upload / Download)	880.1 Mbps / 859.0 Mbps
PPTP NAT Throughput (Upload / Download)	855.0 Mbps / 907.2 Mbps
66 Byte Packet forwarding rate (Upload / Download)	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate (Upload / Download)	81,279 pps / 81,275 pps
IPSec VPN Throughput (AES256)	ESP-SHA1-AES256: 617.1 Mbps ESP-SHA256-AES256: 592.8 Mbps ESP-SHA384-AES256: 592.4 Mbps ESP-SHA512-AES256: 604.5 Mbps
GRE	Unencrypted: 611.9 Mbps Encrypted: 325.0 Mbps
WireGuard VPN	341.3 Mbps
SSL VPN	131.6 Mbps
OpenVPN	139.1 Mbps
L2TP VPN Throughput	Unencrypted: 977.4 Mbps Encrypted: 334.6 Mbps
PPTP VPN Throughput	Unencrypted: 1064.1 Mbps Encrypted: 206.8 Mbps
BASIC FUNCTIONS
WAN Connection Type	Static IP Dynamic IP PPPoE(supports MRU Configuration) PPTP L2TP
DHCP	DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
MAC Clone	Modify WAN/LAN MAC Address²
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
Stateful ACL	Yes
mDNS Repeater	Yes
Quality of Service	Yes
Bridge VLAN	Yes
VLAN	802.1Q VLAN
1. Rated specifications are based on test results using software version 1.0.0. Device performance may vary as a result of the actual scenario. 2. LAN MAC Address can be modified only in Standalone Mode.
TRANSMISSION
Load Balance	Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection
NAT	One-to-One NAT Multi-Net NAT Port Forwarding Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
Routing	Static Routing Policy Routing RIP OSPF
Session Limit	IP-based Session Limit
Bandwidth Control	IP-based Bandwidth Control
VPN
IPSec VPN	100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
PPTP VPN	PPTP VPN Server PPTP VPN Client (10)³ 50 Tunnels PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server L2TP VPN Client (10)³ 50 Tunnels L2TP over IPSec
GRE	Only in Standalone Mode
WireGuard VPN	Yes
SSL VPN	50 Tunnels
OpenVPN	OpenVPN Server OpenVPN Clients (5)³ 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode
1. Port Triggering is supported only in Standalone Mode. 2. RIP and OSPF are supported only in Standalone Mode. 3. For PPTP VPN and L2TP VPN, ER7406 can connect with up to 10 VPN servers. For OpenVPN, ER7406 can connect with up to 5 VPN servers.
SECURITY
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Filtering	Web Group Filtering¹ URL Filtering Web Security¹
ARP Inspection	Sending GARP Packets ARP Scanning² IP-MAC Binding
DNS Proxy	DNSSEC, DoH, and DoT
Access Control	Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication	No Authentication Simple Password³ Hotspot (Local User / Voucher³ / SMS³/ Radius³) External Radius Sever External Portal Sever³ LDAP⁴
MANAGEMENT
Maintenance	Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute)⁵ NTP Synchronize⁵ Port Mirroring CLI (only in Standalone Mode) Syslog Support
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
OTHERS
Certification	CE, FCC, RoHS
Package Contents	ER7406 Power Cord Quick Installation Guide Rackmount Kit
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
1. Web Group Filtering and Web Security are supported only in Standalone Mode. 2. ARP Scanning is supported only in Standalone Mode. 3. The following web authentication methods are supported only in Controller Mode: Simple Password, Voucher, SMS, Radius, and External Portal Sever. 4. LDAP is supported only in Standalone Mode. 5. Diagnostics (Ping & Traceroute) and NTP Synchronize are supported only in Standalone Mode.
