• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring. • Centralized Management: Cloud access and Omada app for ultra convenience and easy management. • Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity. • Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband. • Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH. • Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security. |
Future-Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports
High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.
Maximize the 10G Broadband with Omada Enterprise Gateway

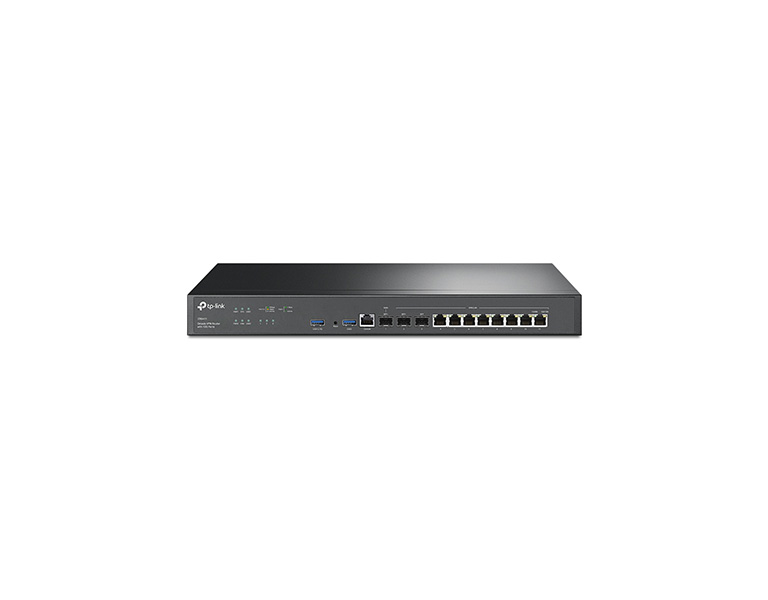

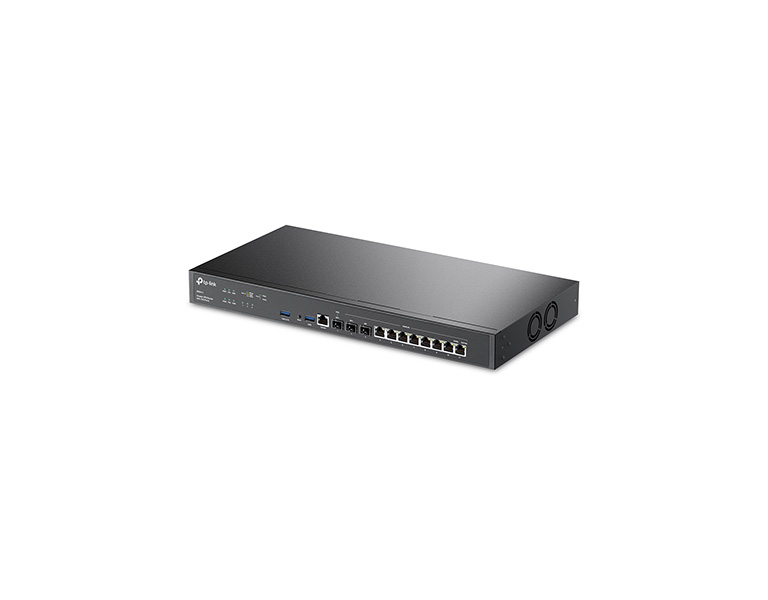

Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.
10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
Note: At least one of the ten WAN/LAN ports needs to function as a LAN.
High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
1. At least one WAN/LAN port needs to function as a LAN port.
2. These functions requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller.
3. Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
4. LAN MAC Address can be modified only in Standalone Mode.
5. These functions are supported only in Standalone Mode.
6. ER8411 can work as a VPN client and can connect with up to 32 PPTP/L2TP VPN servers and 10 OpenVPN servers.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 60 months |
HARDWARE FEATURES | |
Interface | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
Button | Reset Button |

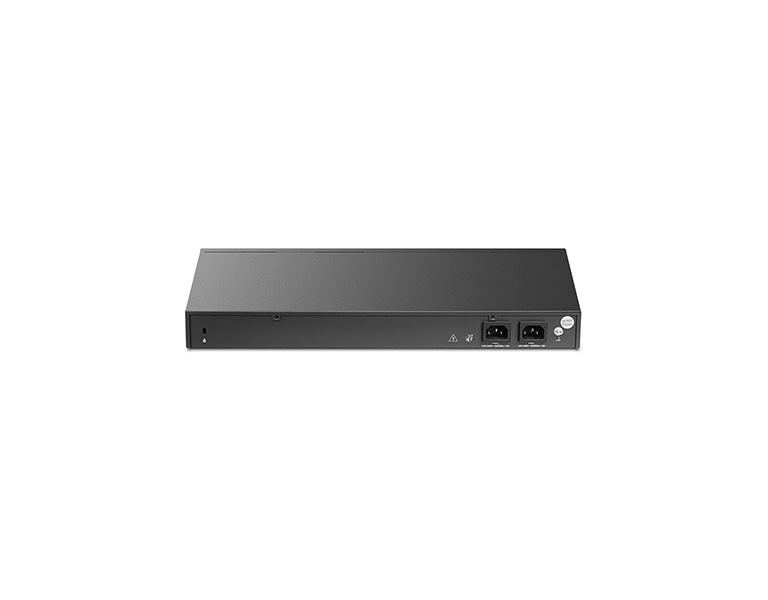

Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
Flash | 4MB SPI NOR + 256 MB NAND |
DRAM | 4 GB DDR4 |
LED | PWR, SYS, WAN, LAN, USB, FAN |
Dimensions ( W x D x H ) | 440 × 220 × 44 mm |
Max Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
PERFORMANCE | |
Concurrent Session | 2,300,000 |
New Sessions /Second | 20,000 |
NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
NAT (L2TP) | • Upload: 4230.62 Mbps • Download: 4169.53 Mbps |
NAT (PPTP) | • Upload: 3933.86 Mbps • Download: 3821.97 Mbps |
64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps • Download: 1030 Mbps |
IPsec VPN Throughput | • SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 Mbps |
OpenVPN | 1665.64 Mbps |
L2TP VPN Throughput | • Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 Mbps |
SSL VPN Throughput | 1511.10 Mbps |
BASIC FUNCTIONS | |
WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
MAC Clone | Modify WAN/LAN MAC Address*4 |
DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces |
IPv6 | WAN Connection |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy |
ADVANCED FUNCTIONS | |
ACL | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing • Policy Routing |
Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing*5, Failover) • Online Detection |
NAT | • One-to-One NAT*5 • Multi-Net NAT • Virtual Server • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
Session Limit | IP-based Session Limit |
VPN | |
SSL VPN | • SSL VPN Server • SSL VPN Client • 500 SSL VPN Tunnels |
IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)*6 • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)*6 • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (10)*6 • 110 OpenVPN Tunnels |
SECURITY | |
Filtering | • WEB Group Filtering*5 • URL Filtering • Web Security*5 |
ARP Inspection | • Sending GARP Packets*5 • ARP Scanning*5 • IP-MAC Binding*5 |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
Access Control | Source/Destination IP Based Access Control |
AUTHENTICATION | |
Web Authentication | • No Authentication • Simple Password*2 • Hotspot(Local User / Voucher*2 / SMS*2 / Radius*2) • External Radius Sever • External Portal Sever*2 • Facebook Check-In*2 • Instagram Follow*2 |
MANAGEMENT | |
Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Syslog Support |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | • Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0–40 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
1. At least one WAN/LAN port needs to function as a LAN port.
2. These functions requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller.
3. Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
4. LAN MAC Address can be modified only in Standalone Mode.
5. These functions are supported only in Standalone Mode.
6. ER8411 can work as a VPN client and can connect with up to 32 PPTP/L2TP VPN servers and 10 OpenVPN servers.
7. For the complete compatibility list of 4G/3G modem, go to https://www.tp-link.com/er8411/compatibility/
Attention: It is recommended to use only one TL-SM5310-T module for the ER8411.
