• Up to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilities • Load Balancing automatically selects the best route to the destination according to the load • Captive portal provides convenient guest authentication while promoting your business • Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control • Smaller case for cost-effective solution in the small office or Internet cafes network |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 60 months |
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3x TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |

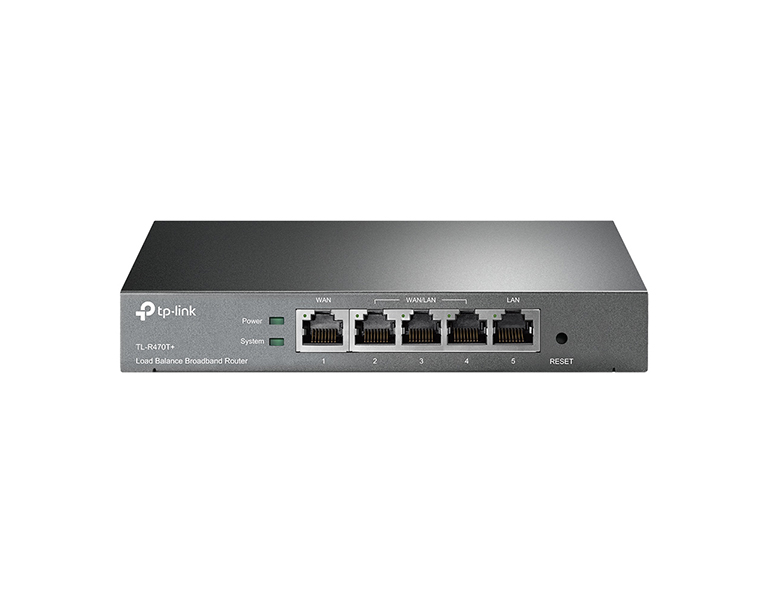

Interface | 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
Button | Reset Button |
Power Supply | External 9V/0.6A DC Adapter |
Flash | 16MB |
DRAM | 128MB |
LED | PWR, SYS, WAN, LAN, WAN/LAN |
Dimensions (WxDxH) | 158 x 101 x 25mm |
PERFORMANCE | |
Concurrent Session | 10000 |
NAT Throughput | 117Mbps |
BASIC FUNCTIONS | |
WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
DHCP | DHCP Server/Client, DHCP Address Reservation |
MAC Clone | Modify WAN MAC Address |
IPTV | Bridge, Custom |
IPv6 | IPv6 Support |
VLAN | 802.1Q VLAN, Port VLAN |
TRANSMISSION | |
Load Balance | Intelligent Load Balance Link Backup (Timing, Failover) Online Detection |
NAT | One-to-One NAT, Multi-nets NAT, Virtual Server, Port Triggering FTP/H.323/SIP/IPsec/PPTP ALG |
Routing | Static Routing Policy Routing |
Session Limit | IP-based Session Limit |
Bandwidth Control | IP-based Bandwidth Control |
MANAGEMENT | |
Maintenance | Time Setting, Diagnostics, Remote Management Firmware Upgrade, SNMP, Factory Defaults/Reboot Backup/Restore, System Log, Statistics Daylight Saving Time |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) UPnP |
OTHERS | |
Certification | CE, FCC, RoHS |

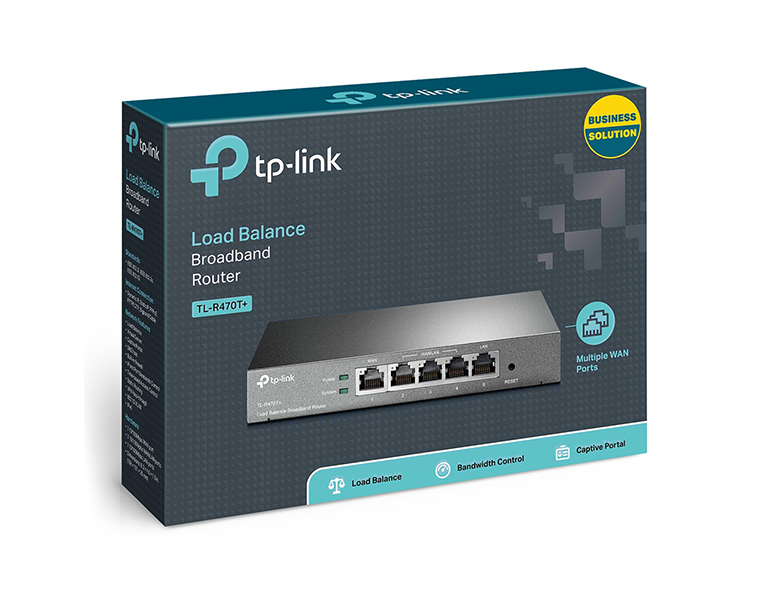

Package Contents | TL-R470T+, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
