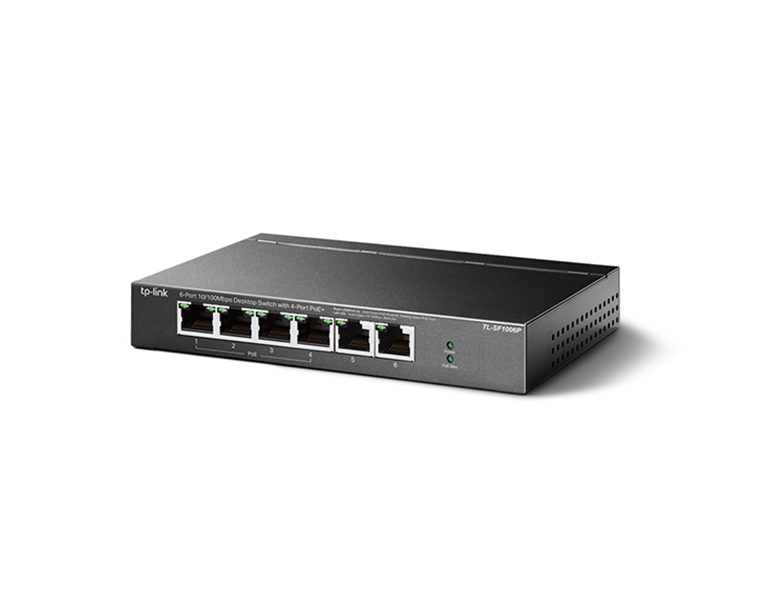

• 6x 10/100 Mbps RJ45 ports • 4x PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af/at compliant PDs • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 67 W for all PoE ports* • Plug and play with no configuration required |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 60 months |
SPECIFICATIONS | |
Interface | 6*10/100Mbps RJ45 Ports with 4 PoE+ Ports(Port 1 to Port 4) AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100m) |
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port1- Port4, up to 30 W per port Power Supply: 67 W |
Switching Capacity | 1.2 Gbps |
Mac Address Table | 2K |
Dimensions(WxDxH) | 158 x 101 x 25 mm |
Fan Quantity | Fanless |
Extend Mode | Yes |
Priority Mode | Yes |
PoE Auto Recovery | Yes (For Ports 1-4) |
Transmission Method | Store-And-Forward |
Max Power Consumption | 2.52W (220V/50Hz. no PD connected) 75.4W (220V/50Hz. with 67W PD connected) |
Max Heat Dissipation | 8.59 BTU/h (no PD connected) 257.11 BTU/h (with 67W PD connected) |
External Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
LED | Power, Link/Act, PoE Status, PoE Max |
Certification | FCC, CE, RoHS |
Package Contents | TL-SF1006P Power Adapter Installation Guide |
Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
