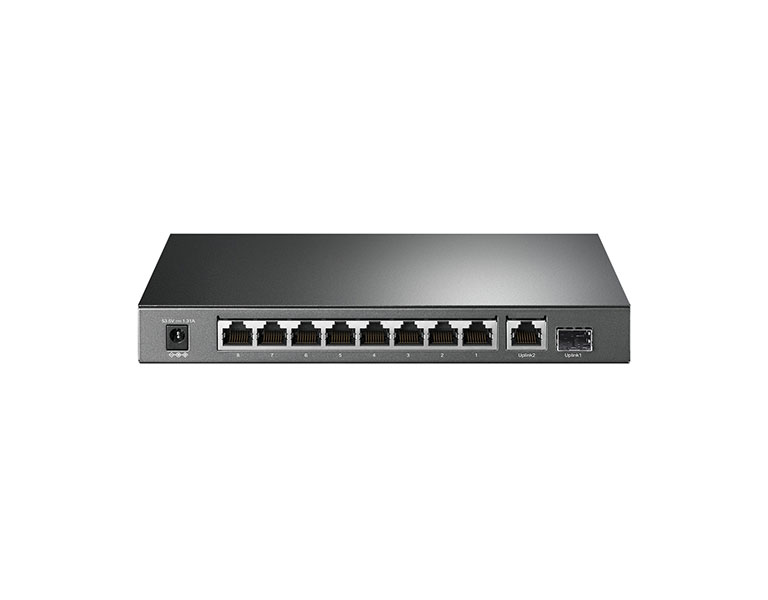

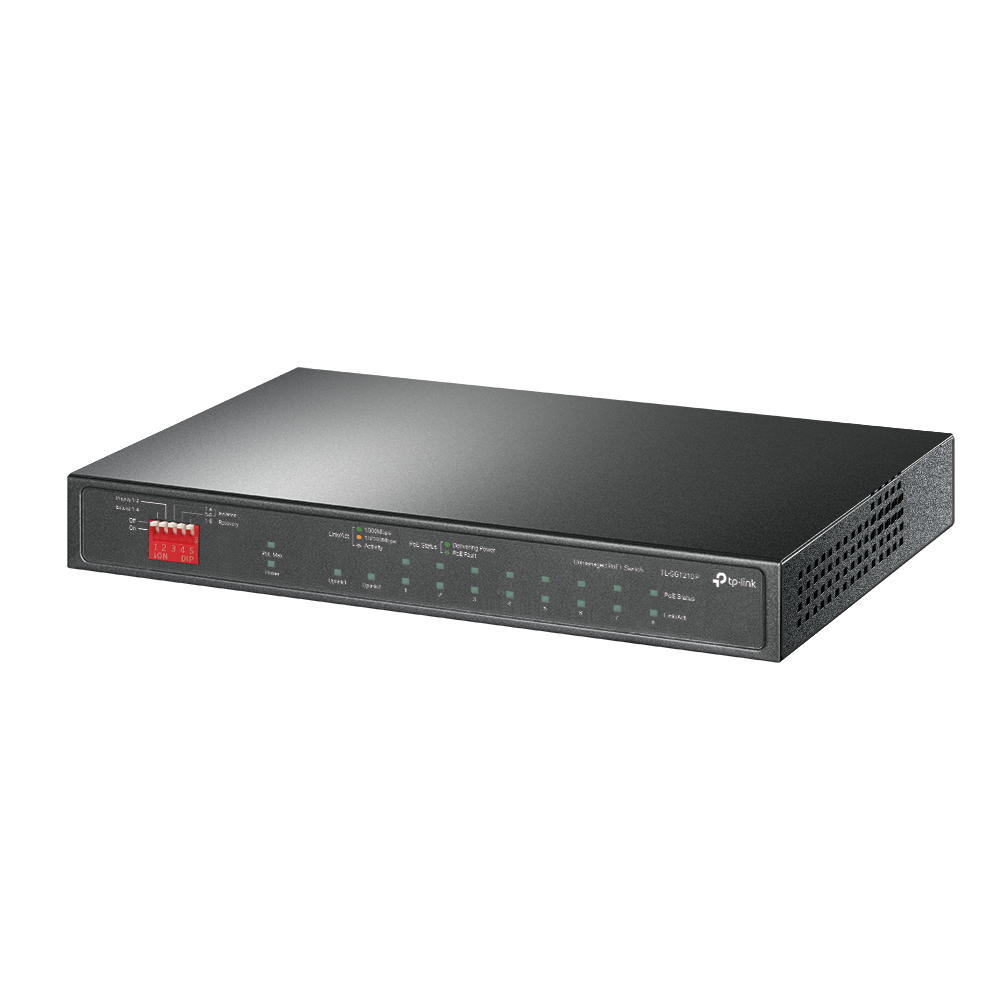

TP-LINK TL-SG1210P V4 10-Port Gigabit Desktop Switch with 8-Port PoE+
• 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
• With 8 PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs and expands office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Easy to use, with no configuration and installation needed

Professional 10-Port Gigabit Unmanaged Switch with 8-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 8 PoE+ Ports (63 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 63 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type

Keep Your Network Smooth and Safe with Port Prioritization and Separation
Port Prioritization
Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.

Enhanced with Port Isolation
Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management
When total power consumption exceeds 63 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SG1210P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210P delivers switching performance you can depend on.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 60 months
SPECIFICATIONS
Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3z, 802.1p
Network Ports 8 PoE+ 10/100/1000 Mbps RJ45 Ports
1 10/100/1000 Mbps RJ45 Port
1 Gigabit SFP Slot
Network Media(Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
100Base-TX: UTP category 5, 5e or above cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
1000Base-T: UTP category 5, 5e, 6 or above cable(maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
1000BASE-X MMF, SMF
PoE PoE Standard: 802.3af/at
PoE Ports 1-8, up to 30 W per port
PoE Power Budget 63 W*
Auto Negotiation YES
Auto MDI/MDIX YES
Max Power Consumption 7.0 W (220/50Hz. no PD connected)
77.24 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation 23.87 BTU/h (no PD connected)
263.39 BTU/h (with 63W PD connected)
Forwarding Mode Store and Forward
Switch Capacity 20 Gbps
MAC Address Table 4K, Auto-learning, Auto-aging
Extend Mode Yes (Ports 1-4)
Priority Mode Yes (Ports 1-2)
Isolation Mode Yes (Ports 1-4/5-8)
PoE Auto Recovery Yes (Ports 1-8)
Flow Control YES
Fanless YES
LED Power, Link/Act, PoE Status, PoE MAX
Dimensions(WxDxH) 209 x 126 x 26 mm
Certification CE, FCC
Package Contents TL-SG1210P,
Power Adapter,
Installation Guide
Environment Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C

Note: * PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
