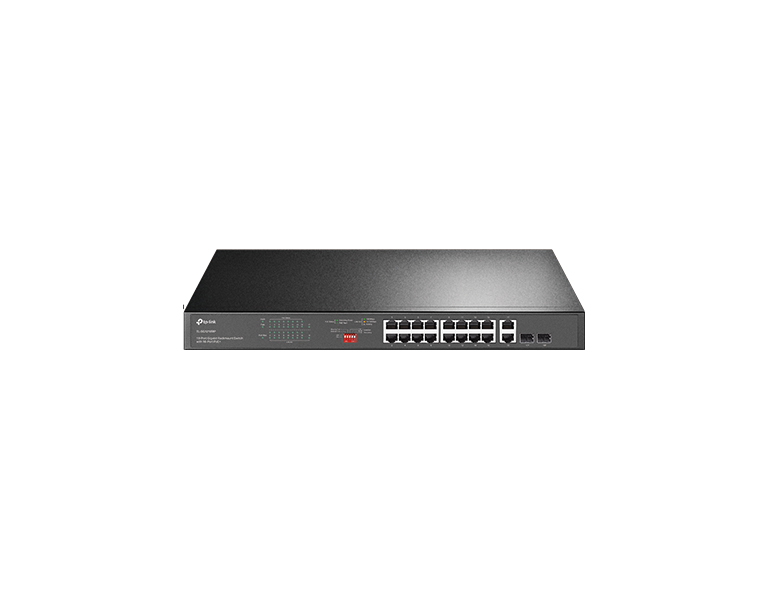

• 16× Gigabit PoE+ RJ45 ports, 2× Gigabit on-PoE RJ45 ports, and 2× Combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W^* for all PoE ports
• Working with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode^**• Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required.^△

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16x gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Plug and Play, No Configuration Required
1) Plug in
2) Connect Devices
3) Enjoy

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50°C) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
^**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
^△Omada Unmanaged Switches do not support Omada SDN central management.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Interface	18 10/100/1000Mbps RJ45 Ports 2 Gigabit Combo SFP Slots
PoE
PoE Standard	802.3 af/at
PoE Ports	16, up to 30 W Per Port
PoE Power Budget	250 W*
Extend Mode	Yes (Ports 1–4)
Priority Mode	Yes (Ports 1–4)
Isolation Mode	Yes
PoE Auto Recovery	Yes
PERFORMANCE
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mpps
MAC Address Table	8 K
Packet Buffer	4.1 Mbit
Jumbo Frame	10 KB
PHYSICAL & ENVIRONMENT
Power Supply	100-240V AC, 50/60Hz
Max Power Consumption	19 W (220V/50Hz. no PD connected) 293.34 W (220V/50Hz. with 250W PD connected)
Max Heat Dissipation	64.79 BTU/h (no PD connected) 1000.29 BTU/h (with 192 W PD connected)
Dimensions(WxDxH)	440 x 180 x 44 mm
Fan Quantity	2
OTHERS
Certification	CE, FCC
Environment	Operating Temperature: 0 °C–50 °C Storage Temperature: -40 °C–70 °C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing

* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
