• 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.• Up to 250 m data and power transmission under extend mode specially designed for surveillance system.• Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• Easy to use, with no configuration and installation needed.

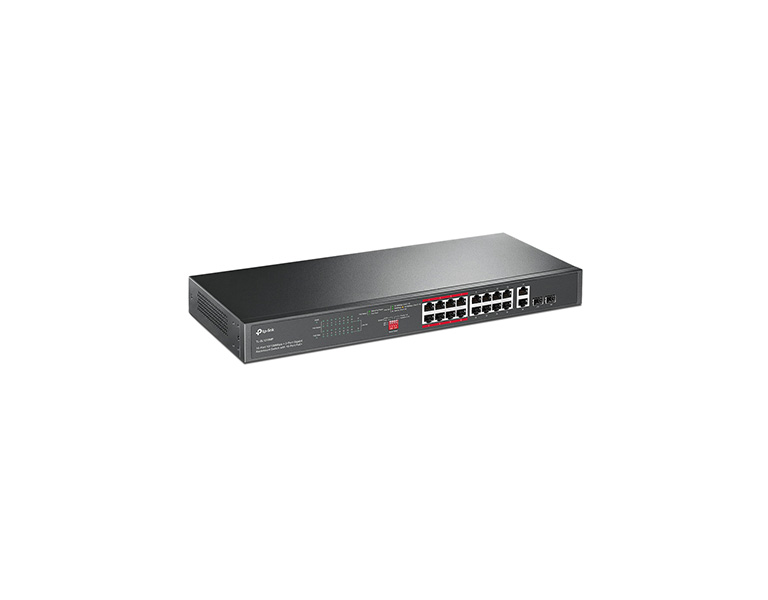

Professional High Power 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m

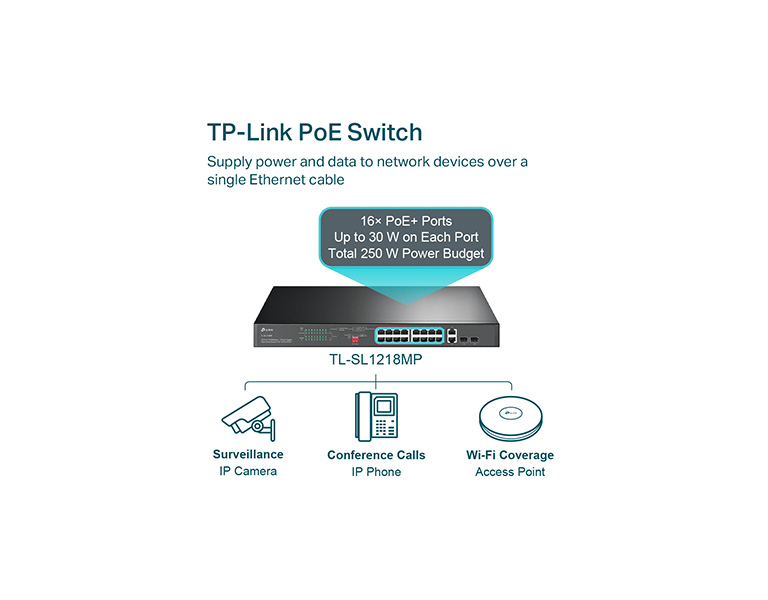

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Ideal for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m —perfect for IP Camera deployment in large areas. The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Ideal for IP Surveillance —Higher Performance and Security

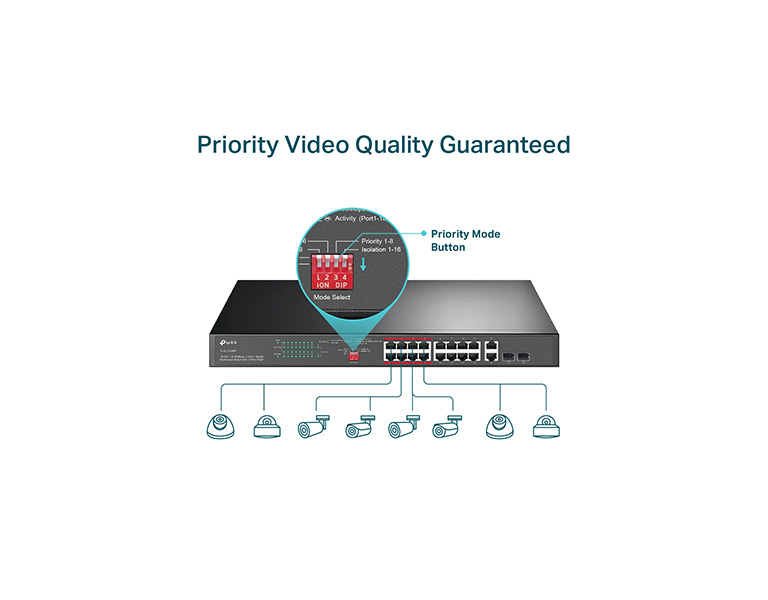

Priority Mode and Isolation Mode make surveillance smoother and safer.

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 16× HD IP cameras work simultaneously.

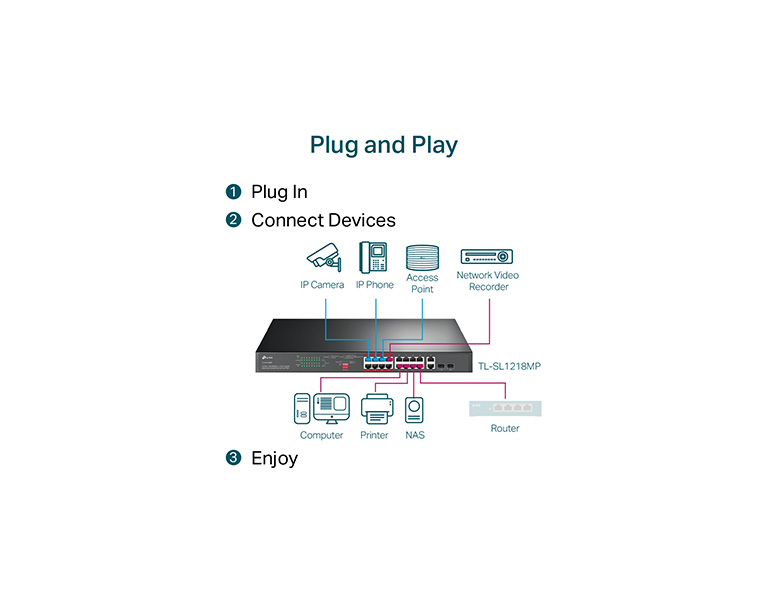

Plug and Play
1) Plug in
2) Connect Devices
3) Enjoy

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

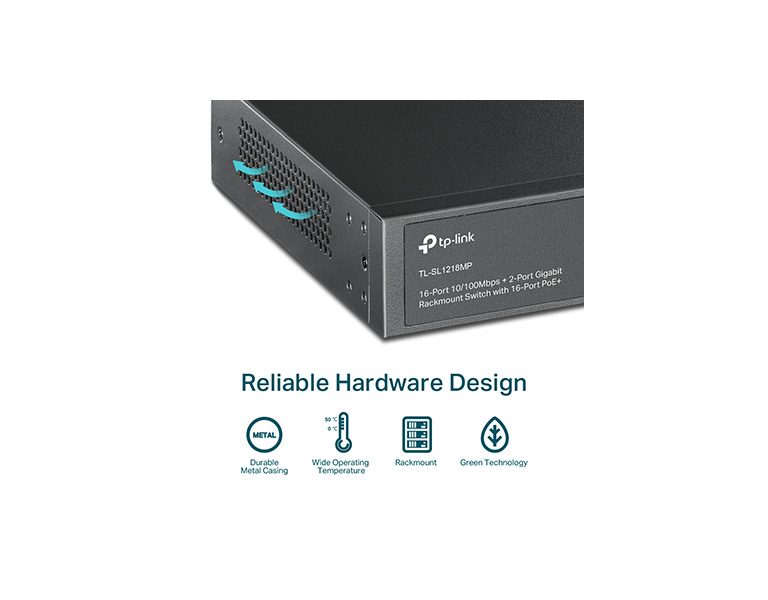

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50°C) with reliability.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

SPECIFICATIONS
Interface	16 10/100 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 2 Combo Gigabit SFP Slots
PoE
PoE Standard	802.3af/at
PoE Ports	16, up to 30 W per port
PoE Power Budget	250 W
Performance
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
MAC Address Table	8 K
Packet Buffer	4.1 Mbit
Jumbo Frame	10 KB
Advanced Features	Extend Mode (Up to 250 m PoE supply and data transimission) Priority Mode Isolation Mode
Physical & Environment
Power Supply	100–240 V AC, 50/60 Hz
Max Power Consumption	285.8 W (with 250 W PD Connected) 14.97 W (no PD Connected)
Max Heat Dissipation	974.58 BTU/h (with 250 W PD Connected) 51.05 BTU/h (no PD Connected)
Dimensions(WxDxH)	440 x 180 x 44 mm
FAN Quantity	2
Operating Temperature	0°C~50°C
Storage Temperature	-40°C~70°C
Operating Humidity	10% ~ 90%RH, non-condensing
Storage Humidity	5%~90%RH, non-condensing
Certification	CE, FCC

Note:
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
