• HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps^*• AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz^*• OneMesh^TM - Works with your OneMesh^TMrouter to form a unified mesh network for seamless streaming while moving around your home
• 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
• One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
• Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
• Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
• Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket
• 3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles

Wall-Piercing Wi-Fi Extended to Every Outlet

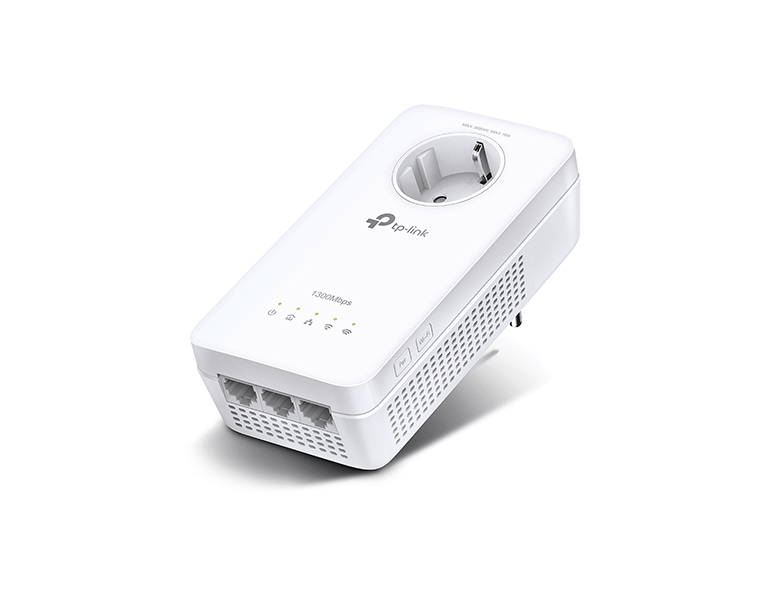

AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit

Stable, Ultra-Fast Network in Every Room

Enjoy Stable, Seamless OneMesh™ Wi-Fi
Bothered by dropped connections while moving around your home?
With the newest OneMesh^TM technology, the kit works with your existing OneMesh^TM router to form a unified Mesh network. No more switching Wi-Fi network names, enjoy uninterrupted streaming and truly seamless AC1200 Wi-Fi.

2×2 MIMO Technology for Efficient Transmissions
More Stable Connections.
Enhanced Long-Distance Performance.

One Tap for a Unified Network
One-Touch Wi-Fi Configuration Instantly copies your network name and password from your router for easy setup.

Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

Plug and Play in Seconds!
Plug a Powerline adapter in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket. That’s it. You’re done! Tip: Press ‘Pair’ for more security.

Don’t Lose an Outlet
The TL-WPA8631P can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.

More Gigabit Ethernet Ports, More Devices
Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video, IPTV streaming, lag-free gaming, and more.

Powerline Management on Your Smartphone
Manage your powerline WiFi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network. View real-time powerline speed LED control (also controlled by LED On/Off button) Guest network

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725 MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

HARDWARE FEATURES
Transmission Speeds	Powerline: up to 1300 Mbps Ethernet: 10/100/1000 Mbps
Transmission Distance	Up to 300 meters/1000 feet over existing electrical wiring
Standards and Protocols	HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
Compatibility	Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters
Interface	3 Gigabit Ethernet Ports
Plug Type	EU
Button	Pair, LED On/Off, Wi-Fi, Reset
Power Consumption	Maximum: 13.7W, Typical: 11W
LED Indicator	Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions	75 × 42 × 152 mm
IGMP	IGMP v1/v2/v3
Power Consumption	Maximum: 13W Typical: 11W
Range	Up to 300 meters/1000 feet over existing electrical wiring
Compatibility	Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
SOFTWARE FEATURES
Mesh Technology	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Quality of Service	• ToS • Supports up to 4-level type QoS • Support up to 8-level VLAN priority field
Security	• Wireless: WEP, WPA, WPA2, WPA3 • Powerline: 128-bit AES Encryption
Management	TP-Link tpPLC App, or download new tpPLC Utility on PCs.
Modulation Technology	OFDM
IGMP	IGMP v1/v2/v3
OTHERS
Package Contents	AV1300 Gigabit Passthrough Powerline ac Wi-Fi Extender: 1× TL-WPA8631P Ethernet Cable Quick Installation Guide
Certification	CE, RoHS
PHYSICAL
Dimensions (W×D×H)	75 × 42 × 152 mm
Package Contents	• AV1300 Gigabit Passthrough Powerline ac Wi-Fi Extender: 1× TL-WPA8631P • 1× Ethernet Cables • 1× Quick Installation Guide
System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility	Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environment	Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
