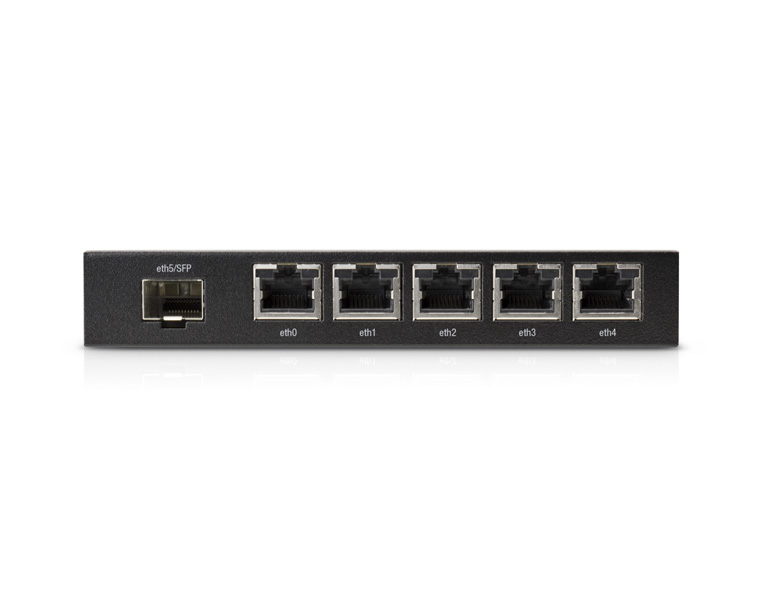

• (5) Gigabit RJ45 ports with passive PoE support
• (1) Gigabit SFP port for backhaul applications
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets

Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX^® platform. The EdgeRouter X combines carrier‑class reliability with excellent price‑to‑performance value in an ultra‑compact form factor.

PoE Versatility
The SFP model, the ER‑X‑SFP, is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi^® devices, while its SFP port provides fiber connectivity to support backhaul applications.

Configuration Methods
Powered by a proprietary and intuitive graphical interface, EdgeOS™, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

Intuitive User Interface
The EdgeRouter X provides a graphical user interface designed for convenient setup and control.
Accessed via a network port and web browser, the user -friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.

Powerful Features
EdgeOS is a sophisticated operating system with robust features, including:
• VLAN interfaces for network segmentation
• Static routes and support of routing protocols: OSPF, RIP, and BGP
• Firewall policies and NAT rules
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Administrator and operator accounts
• Comprehensive IPv6 support

Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:
• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands
• CLI access through SSH, Telnet, and the graphical user interface

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions	142 x 75 x 23 mm
Weight	215 g
Max. Power Consumption	5W
Max. Total PoE Output	50W @ 24V
PoE Output	Passive 24V (Pins 4, 5+; 7, 8-)
Power Input	24VDC, 2.5A Power Adapter (Included)
Power Supply	External AC/DC Adapter
Supported Voltage Range	9 to 26VDC
Button	Reset
LED	Power, Link/Activity (6), PoE (5)
Processor	Dual-Core 880 MHz, MIPS1004Kc
System Memory	256 MB DDR3 RAM
Code Storage	256 MB NAND
Certifications	CE, FCC, IC
Wall-Mount	Yes
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature	-10 to 45°C
Operating Humidity	10 to 90% Noncondensing
Networking Interfaces
Data/PoE Output Port	(5) 10/100/1000 RJ45 Ports
Data Port	(1) 100/1000 SFP Port
PoE with 24VDC Power Adapter
PoE Out Voltage Range	22-24VDC
Max. PoE Wattage Per Data/PoE Output Port	12W (24V)
Max. PoE Wattage Combined (All 5 Data Ports)	50W
PoE Method	Passive
