Ubiquiti USW-Pro-Max-24, 24-Port, Layer 3 Etherlighting Switch With 2.5 GbE

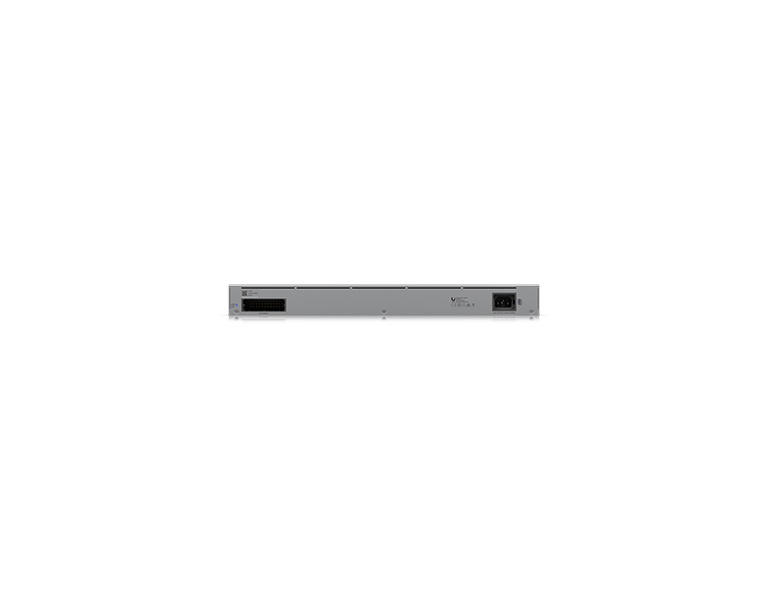

Ubiquiti Pro Max 24 is a quality switch. It has 8 LAN ports with speeds up to 2.5 Gbps. The other 16 ports have a speed of 1 Gbps. There are also 2 SFP+ ports with speeds up to 10 Gbps. The switch can be configured using UniFi Controller. It also features a touchscreen display with controls. On the back, in addition to the normal power supply, we also find a backup DC power supply, which is used for example in the event of a power failure.
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (8) 2.5 GbE RJ45 ports
• (16) GbE RJ45 ports
• (2) 10G SFP+ ports
• DC power backup ready
• Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Key features
• Backup DC power supply
• Configurable via UniFi Controller
• High connection speed - 8 LAN ports at 2.5 Gbps and 16 LAN ports at 1 Gbps
• 2 SFP+ ports up to 10 Gbps
Package contents
• Device
• Power cable
• Rack mounting kit
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Mechanical | |
| Dimensions | 442 x 325 x 44 mm |
| Weight | Without mounting brackets: 4.2 kg With mounting brackets: 4.3 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| Total non-blocking throughput | 56 Gbps |
| Switching Capacity | 112 Gbps |
| Power Method | AC/DC, internal, 50W |
| Supported voltage range | 100—240V AC |
| Max Power Consumption | 50W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| Etherlighting | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
