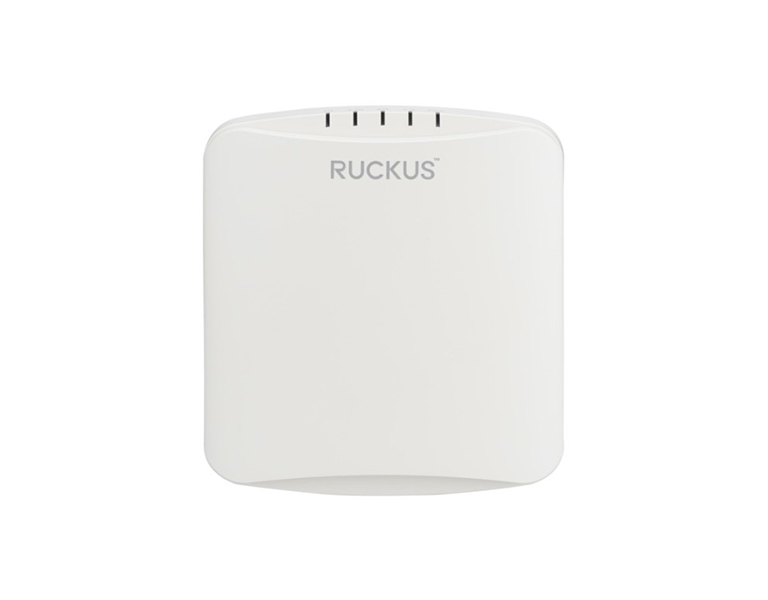

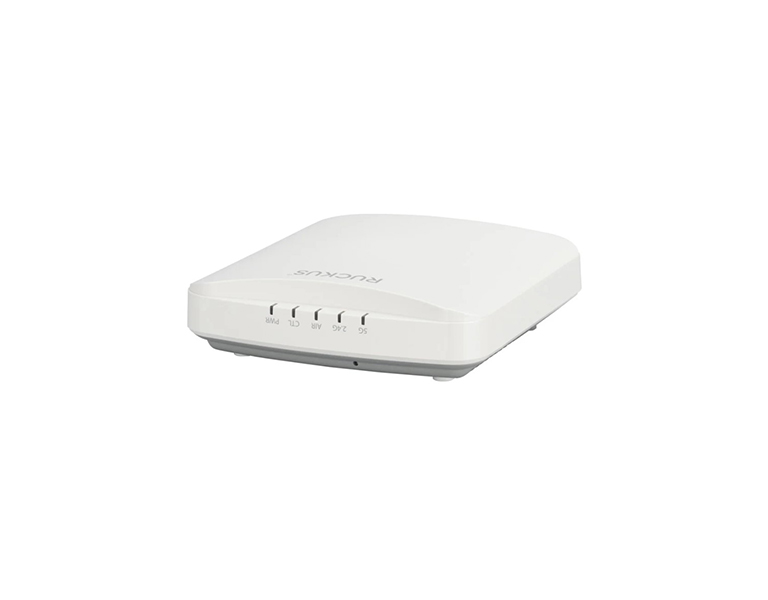

Ruckus R350 Indoor Wi-Fi 6 Access Point

Product Code:
R350
Manufacturer Ruckus
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Ruckus R350 Indoor Access Point Entry-Level Wi-Fi 6 2x2:2 Indoor Access Point with 1.8 Gbps max rate and IoT ready
The RUCKUS R350 delivers consistent, reliable Wi-Fi 6 (802.11ax) wireless networking at an affordable price. The AP features the patented RUCKUS technologies for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences at extended ranges. But it provides them in an ultra-compact form factor built for small venues— with a price tag to match. Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies resulting in creation of network silos. Enterprises need a unified platform to eliminate network silos. The RUCKUS R350 is equipped to solve these challenges with a USB port supporting an optional pluggable BLE and Zigbee IoT module. The R350 is an ideal choice for low-density enterprise and hotspot environments including small and medium-size businesses, retail locations, restaurants, and multi-tenant small offices and branch offices.
The R350 Wi-Fi 6 AP incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio.
· Extended coverage with BeamFlex utilizing multi-directional antenna patterns.
· Improve throughput with ChannelFly®, which dynamically finds less congested Wi-Fi channels to use.
The R350 provides an ideal combination of features and performance for smaller environments.
Additionally, it supports up to 256 clients and 16 SSIDs per AP. Whether you’re deploying ten or ten thousand APs, the R350 is also easy to manage through RUCKUS’ appliance, virtual, controller-less and cloud management options.

Features:

LATEST WI-FI STANDARDS
The R350 access point (AP) support the latest Wi-Fi 6 (802.11ax) technology

STUNNING WI-FI PERFORMANCE
Patented RUCKUS technologies for performance optimization and interference mitigation delivers extended coverage and superior user experience.

IoT READY
Eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using or any future wireless technologies with the addition of an optional USB module.

MESH NETWORKING
Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.

AFFORDABLE ENTERPRISE PERFORMANCE
The R350 delivers unprecedented price/performance offering extended range at an affordable price.

MULTIPLE UNIFIED MANAGEMENT OPTIONS

Manage the R350 from the cloud, with on-premises physical/virtual appliances, or without a controller.

KEEP EXISTING SWITCHES AND CABLES
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.




Warranties - Returns:
Money Return: Repair - Replacement:
20 days Lifetime
WI-FI
Wi-Fi Standards • IEEE 802.11a/b/g/n/ac/ax
Supported Rates • 802.11ax: 4 to 1774 Mbps
• 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels • 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165
MIMO • 2x2 SU-MIMO
• 2x2 MU-MIMO
Spatial Streams • 2 streams SU/MU-MIMO 5GHz
• 2 streams SU/MU-MIMO 2.4GHz
Radio Chains and Streams • 2x2:2 (5 GHz)
• 2x2:2 (2.4GHz)
Channelization • 20, 40, 80MHz
Security • WPA-PSK, WPA-TKIP, WPA2 , WPA3-Personal, WPA3-Enterprise, AES, WPA3, 802.11i, Dynamic PSK
• WIPS/WIDS
Other Wi-Fi Features • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr
RF
Antenna Type • BeamFlex adaptive antennas
• Adaptive antenna that provides up to 64 unique antenna patterns per band
Antenna Gain (max) • Up to 3dBi
Peak Transmit Power (aggregate across MIMO chains) • 2.4GHz: 23 dBm
• 5GHz: 23 dBm
Minimum Receive Sensitivity • -101 dBm
Frequency Bands • ISM (2.4-2.484GHz)
• U-NII-1 (5.15-5.25GHz)
• U-NII-2A (5.25-5.35GHz)
• U-NII-2C (5.47-5.725GHz)
• U-NII-3 (5.725-5.85GHz)
PERFORMANCE AND CAPACITY
Peak PHY Rates • 2.4GHz: 574Mbps
• 5 GHz: 1200Mbps
Client Capacity • Up to 256 clients per AP
SSID • Up to 16 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization • BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PDMRC)
Wi-Fi Channel Management • ChannelFly
• Background Scan Based
Client Density Management • Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization
SmartCast Quality of Service • QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs
Mobility • SmartRoam
Diagnostic Tools • SpeedFlex
NETWORKING
Controller Platform Support • SmartZone
• ZoneDirector
• Unleashed
• Cloud
• Standalone
Mesh • SmartMesh wireless meshing technology. Self-healing Mesh
IP • IPv4, IPv6
VLAN • 802.1Q (1 per BSSID or dynamic per use based on RADIUS
• VLAN Pooling
• Port-based
802.1x • Authenticator & Supplicant
Tunnel • L2TP, GRE, Soft-GRE
Policy Management Tools • Application Recognition and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting
PHYSICAL INTERFACES

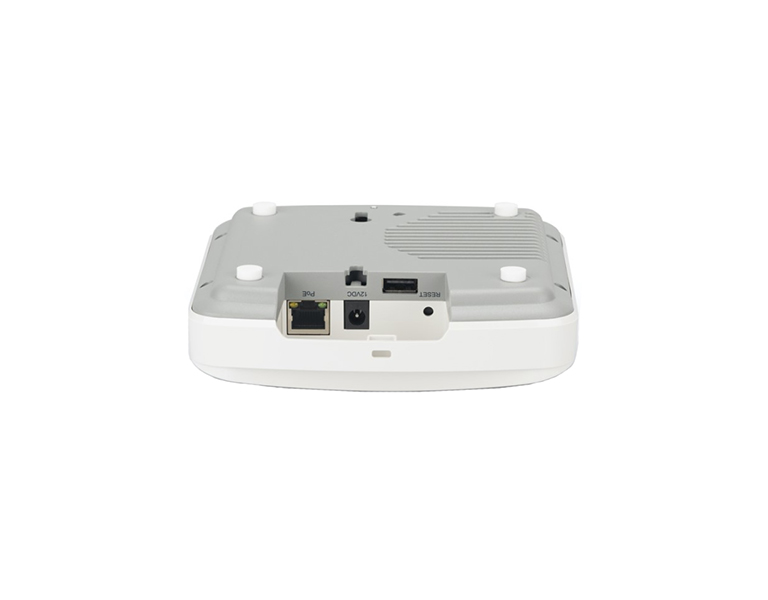

Ethernet • 1 x 1GbE port, RJ-45
USB • 1 USB 2.0 Port, Type A
PHYSICAL CHARACTERISTICS
Physical Size • 14.60(L) x 15.59(W) x 3.93(H) cm
Weight • 368g
Mounting • Wall, Drop ceiling, Desk
• Secure bracket (sold separately)
Physical Security • Hidden latching mechanism
• T-bar Torx
Operating Temperature • 0 ºC to 40 ºC
Operating Humidity • Up to 95%, non-condensing
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance • Wi-Fi CERTIFIED a, b, g, n, ac
• Wi-Fi CERTIFIED 6
• WPA3 -Enterprise, Personal
• Wi-Fi Enhanced Open
• Wi-Fi Agile Multiband
• Passpoint
• Vantage
• WMM
Standards Compliance • EN 60950-1 Safety
• EN 60601-1-2 Medical
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• UL 2043 Plenum
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services • SPoT
Network Analytics • SmartCell Insight (SCI)
Security and Policy • Cloudpath
