• Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.^*1• Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.^*2•High-density connectivity up to 1,000+ clients.^*3• Long-range coverage with the high-power amplifier and 2× detachable antennas.
• IP67 weatherproof enclosure for various outdoor environments.
• Advanced Functions: Centralized management, Omada mesh, and seamless roaming.^*4•PoE+ Powered: Supports both 802.3at PoE (adapter not included).

Long Distance Starts with External Antennas
Two detachable external antennas for 5 GHz and 2.4 GHz provide optimal coverage and greater flexibility for your network.
2.4GHz: 200m+^*6/ 5GHz: 300m+^*6

Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP625-Outdoor HD withstands the most extreme environments.

Flexible Deployment with Omada Mesh and PoE Support
• Less Wiring with Omada Mesh
• Powered with PoE+ Switch
• Powered with Passive PoE

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, 1024-QAM, and more, requires clients to support the corresponding features.
3. The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
4. Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides for Omada SDN Controllers for configuration methods.
5. The dimension information only includes the product and bracket and excludes the detachable external antennas.
6. Based on field tests. The number listed here is the maximum distance of one EAP625-Outdoor HD can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Main Design

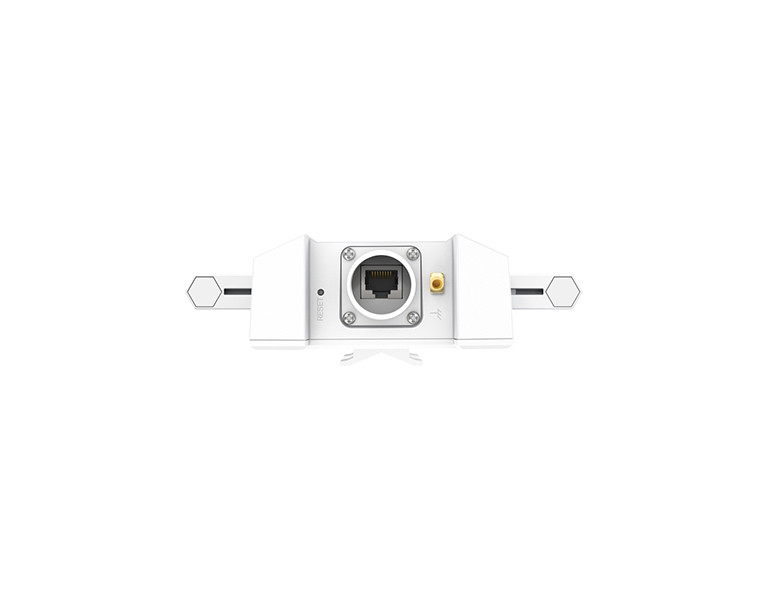

ILAN Interfaces	1× Gigabit Ethernet Port
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax
Maximum Data Rate	74 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
Wireless Client Capacity	1000+
Bluetooth	Supported
Antennas	2 External Dual-Band Omni Antennas 2.4 GHz: 3.0 dBi / 5 GHz: 5.0 dBi
Transmit Power	CE: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz Band1&2, EIRP), < 30dBm (5 GHz Band3, EIRP); FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Reception Sensitivity	2.4GHz: 11ax HE20 MCS0:-94.5dBm;11ax HE20 MCS11:-66dBm 11ax HE40 MCS0:-92dBm;11ax HE40 MCS11:-63.5dBm 5GHz: 11ax HE20 MCS0:-94.5dBm;11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91dBm;11ax HE40 MCS11:-61dBm 11ax HE80 MCS0:-88dBm;11ax HE80 MCS11:-57.5dBm
Centralized Management
Omada Software Controller	Yes
Omada Hardware Controller	Yes
Omada APP	Yes
Security
Captive Portal Authentication	Yes
Access Control	Yes
Maximum number of MAC Filter	4000
Wireless Isolation between Clients	Yes
VLAN	Yes
Rogue AP Detection	Yes
Wireless Encryption	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
802.1X Support	Yes
Wireless Function
Multiple SSIDs	16 (8 for each band)
Channel	2G:1 - 13 5G: 36,40,44,48,52,56,60,64,100,104,108,112, 116,120,124,128,132,136,140
Enable/Disable Wireless Radio	Yes
Enable/Disable SSID Broadcast	Yes
Guest Network	Yes
Automatic Channel Assignment	Yes
Transmit Power Control	Adjust transmit Power on dBm
QoS (WMM)	Yes
Seamless Roaming	Yes
Mesh	Yes
QoS (WMM)	Yes
QoS (WMM)	Yes
Beamforming	Yes
MU-MIMO	2x2 MU-MIMO DL
OFDMA	UL/DL OFDMA
Rate Limit	Based on SSID/Client
Load Balance	Yes
Airtime Fairness	Yes
Band Steering	Yes
RADIUS Accounting	Yes
MAC Authentication	Yes
Reboot Schedule	Yes
Wireless Schedule	Yes
Wireless Statistics	Yes
Static IP/Dynamic IP	Yes
Support Data Rates
802.11ax	8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac	6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11a	1, 2, 5.5, 11 Mbps
Management
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
Web-based Management	Yes
SNMP	v1, v2c, v3
SSH	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
System Log	Yes
Email Alerts	Yes
Physical & Environment
Maximum Power Consumption	12.5W (802.3at PoE or 48V Passive PoE)
Reset	Yes

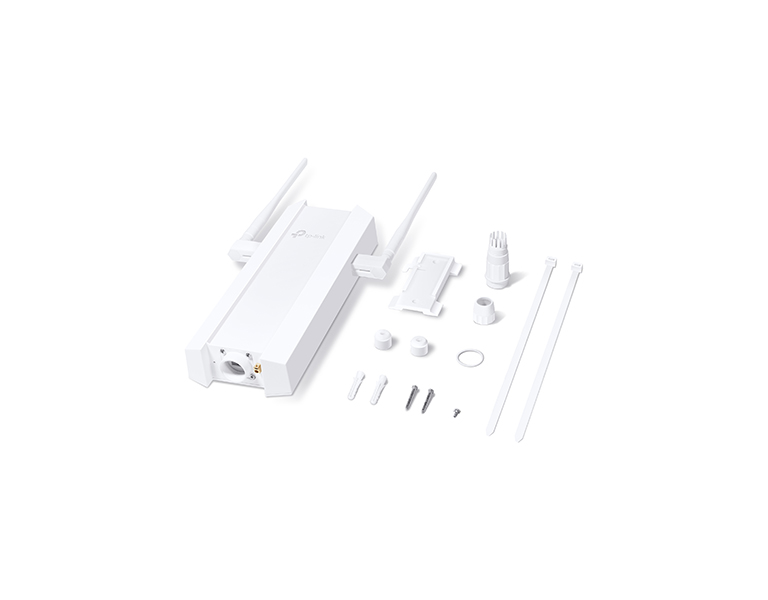

Mounting	Pole/Wall mouting (Kits included)
Others
Certifications	CE, FCC, RoHS
Dimensions (W x D x H)	280.4 × 182.2 × 56.9 mm (excluding the detachable external antennas)
Net Weight	886g
Enclosure Material / Rack Material	PC
Lightning Protection	Air discharge: ±8kV Contact discharge: ±4kV Common mode 10/700: ±6kV
Environment	Operating Temperature: -30 °C – 70 °C Storage Temperature: -40 °C – 70 °C Operating Humidity: 10% – 90% non-condensing Storage Humidity: 5% – 90% non-condensing
