The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.

Features:
• Dual-band WiFi 6 (802.11ax)
• 5 GHz (4x4 MU-MIMO) band with a 4.8 Gbps throughput rate
• 2.4 GHz (2x2 MIMO) band with a 573.5 Mbps throughput rate
• Operates at full 4x4 MIMO with 160 MHz bandwidth
• 300+ concurrent client capacity
• Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion

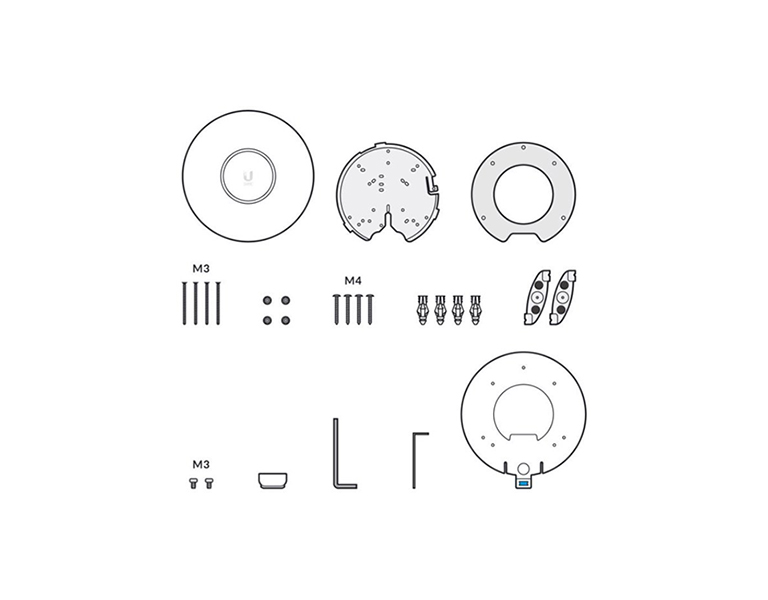

• Included universal mounting plate, backing plate, and screw kit

Adopt the U6-Pro in Minutes with Your UniFi Network Application and:
• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Mechanical
Dimensions	Ø197 x 35 mm
Weight	Without Mount: 460 g With Mount: 600 g
Enclosure Material	Plastic
Mount material	SGCC Steel
Weatherproofing	IP54
Hardware
Management Interfaces	Ethernet Bluetooth
Networking Interface	(1) GbE RJ45 port
Buttons	Factory Reset
LEDs	White/Blue
Power Method	802.3at PoE+
Power Supply	UniFi PoE switch 48V, 0.5A PoE adapter (optional)
Supported Voltage Range	44 to 57VDC
Max. Power Consumption	13W
Max. TX Power 2.4GHz 5GHz	22 dBm 26 dBm
MIMO 2.4GHz 5GHz	2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Throughput Speeds 2.4GHz 5GHz	573.5 Mbps 4.8 Gbps
Antenna Gain 2.4GHz 5GHz	4 dBi 6 dBi
Mounting	Wall/ceiling (included)
Operating Temperature	-30 to 60° C (-22 to 140° F)
Operating Humidity	5 - 95% Noncondensing
Certifications	CE, FCC, IC
Software
Wi-Fi Standards	802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
Concurrent Clients	300+
Zero wait DFS	Yes* *Supported with upcoming firmware versions.
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
