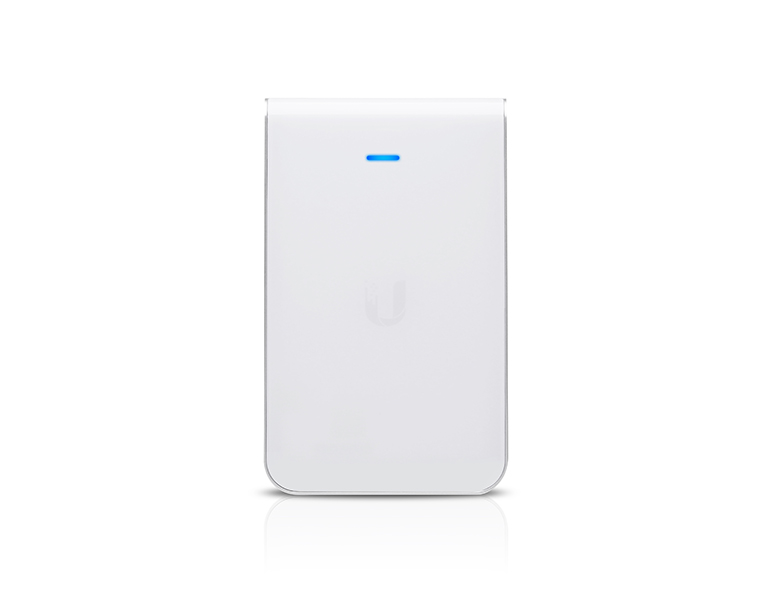

Ubiquiti UAP-IW-HD UniFi AP In Wall Hi-Density

CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTERS

Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser and the UniFi app (iOS or Android™), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Features
Save money and save time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware The UniFi IW HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a multi-pack) and expand to thousands while maintaining a single unified management system.

Extend Your Coverage
With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.

UniFi Controller
Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
View Your RF Environment
Use the RF environment functionality of the UniFi IW HD AP to detect and troubleshoot nearby interference, analyze radio frequencies, choose optimal AP placement, and configure settings
Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
Guest Portal/Hotspot Support
Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi’s rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages
Multi-Site Management
A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
WLAN Groups
The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP’s radio. Each WLAN can be VLAN tagged. Dynamic VLAN tagging per Wi-Fi station (or RADIUS VLAN) is also supported.

802.11ac Technology
Initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time.
802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi IW HD AP, to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.
The following describes a 5-client scenario:
MU-MIMO Assuming the same conditions, a Wave 2 AP provides up to 75% improvement1 overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.
4x4 Spatial Streams At any single time, a Wave 2 AP can communicate with the following MU-MIMO clients:
• four 1x1 clients
• two 2x2 clients
• one 2x2 client and two 1x1 clients
• one 3x3 client and one 1x1 client
A 4x4 Wave 2 AP delivers up to 33% greater performance¹ than a Wave 1 AP that is 3x3 in both radio bands.
¹Actual performance values may vary depending on environmental and installation conditions.
Real-World Performance The UniFi IW HD AP is the first UniFi 802.11ac Wave 2 AP using the in-wall design. Combining the performance increases from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi IW HD AP delivers up to 125% greater performance1 than a typical Wave 1 AP.
Client Compatibility For optimal performance, use MU‑MIMO clients. SU‑MIMO clients will also benefit and gain up to 10-20% greater performance when used with the UniFi IW HD AP.

High-Density Scenarios
For high-density environments, such as hotel suites and meeting rooms where there are numerous clients in a relatively small space, we recommend the UniFi IW HD AP.
Both Wave 1 and Wave 2 APs offer 28 independent (non-overlapping) channels: three for the 2.4 GHz band and twenty-five for the 5 GHz band, including DFS channels. When you use the 2.4 GHz band in a high-density location, you encounter self-interference and channel saturation.
When you use the 5 GHz band, you can deploy smaller cells (coverage areas), so you can support more clients in any cell that deploys more than one AP.
With the advantages of MU-MIMO technology and 4x4 spatial streams, the UniFi IW HD AP can support more than triple the number of users2 than a typical Wave 1 AP.

Hardware Overview
The sleek and elegant UniFi In-Wall HD AP transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac Wi-Fi Access Point with 4x4 MIMO technology. Available in single- and 25-packs.
Easy Mounting The back plate offers multiple mounting holes for use with a variety of 1-gang electrical wall boxes.
LED The unique provisioning LED provides administrator location tracking and alerts for each device.
Secondary Gigabit Ethernet Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.
Superior Processing Power The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Power over Ethernet (PoE) Standard The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately).
UniFi PoE Switch Available in 8*, 16, 24, and 48-port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto-sensing IEEE 802.3af PoE/802.3at PoE+.
*The US-8 and US-8-60W do not support 802.3at PoE+
