RF-Elements STA-SMA StarterAdapter SMA, 2x RP-SMA female connector

Product Code:
STA-SMA
Manufacturer Rf-elements
Sales price: 11,50 €(Includes 24% VAT)
Sales price without TAX:9,27 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

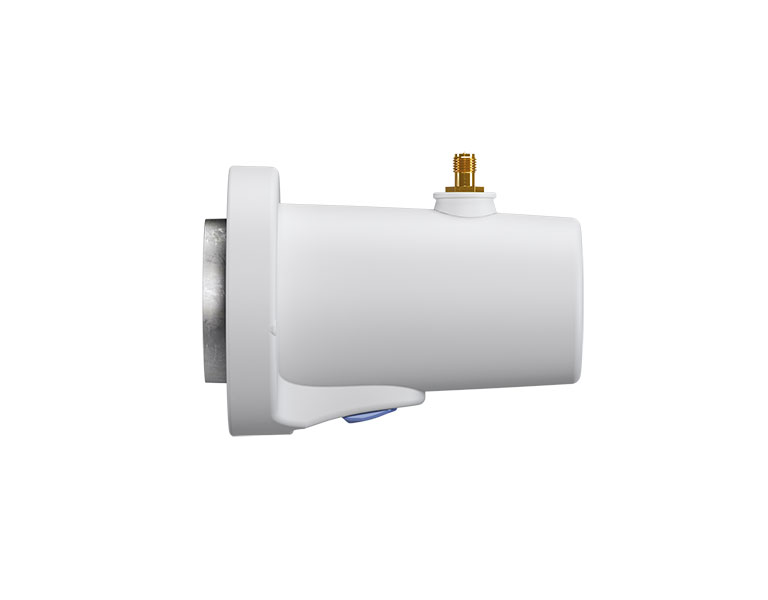

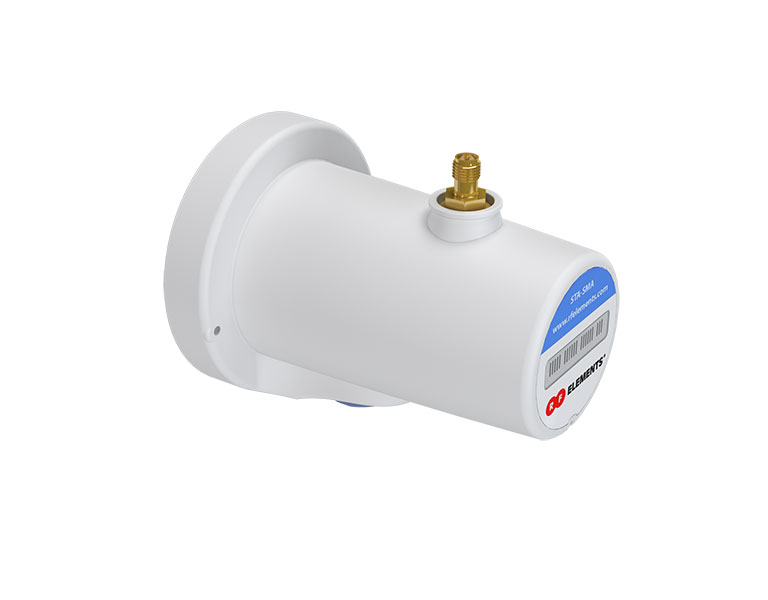

RF-Elements STA-SMA StarterAdapter SMA, 2x RP-SMA female connector

RP-SMA Coaxial Interface For StarterDish™ Antennas
StarterAdapter™ SMA connects to StarterDish™ antennas and provides female RP-SMA connectors - standard coaxial interface for any 3rd party radios. STA-SMA has dual linear H+V polarization.

Performance
STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8  throughout the whole bandwidth.

Minimized Loss
STA-SMA is a waveguide-based adapter. Since waveguide has near-zero loss, the adapter introduces practically zero attenuation in the waveguide part. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
Antenna Connection Waveguide Port
Radio Connection 2x RP-SMA female
Materials Insert - Aluminium Alloy
Adapter - UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C
Wind Survival 160 km/h
Weight 0.12 kg – single unit
0.16 kg  – single unit incl. package
Single Unit Retail Box: 120 × 75 × 75 mm
Frequency Range 5150 - 5950 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm
Compatible wireless platforms
RF elements any StarterDish™ Antennas
