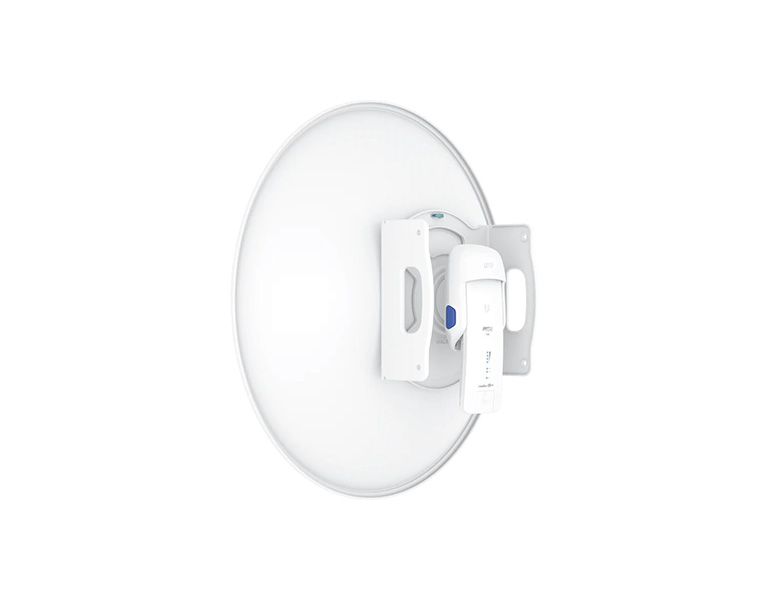

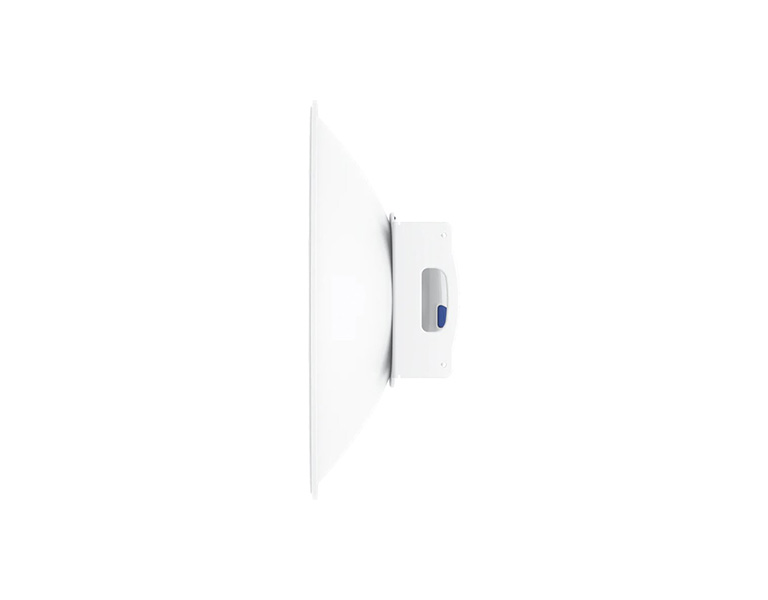

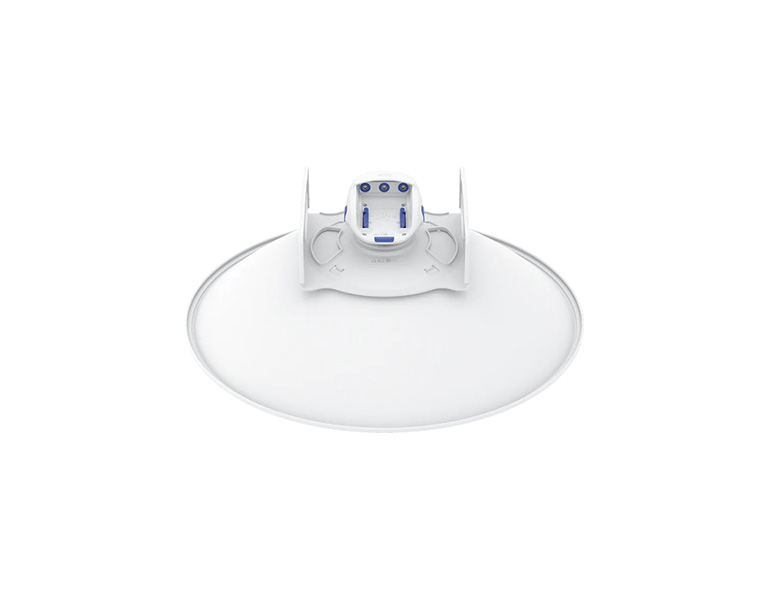

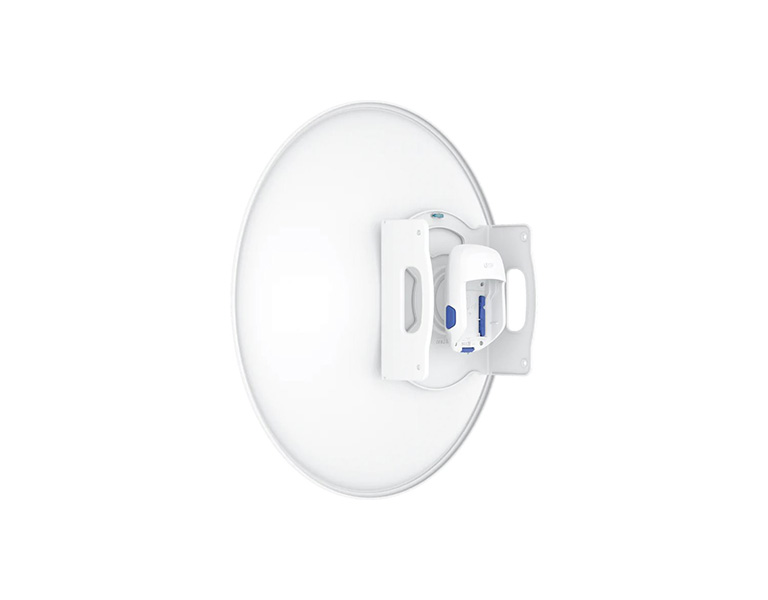

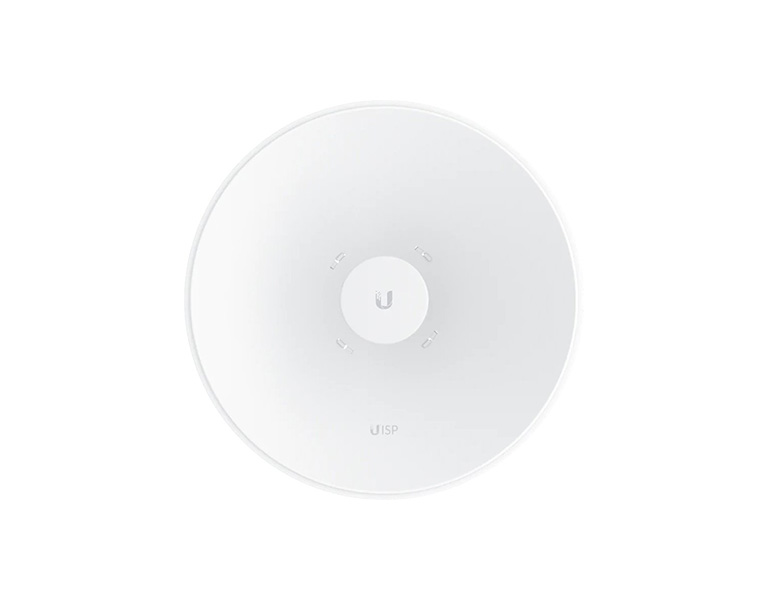

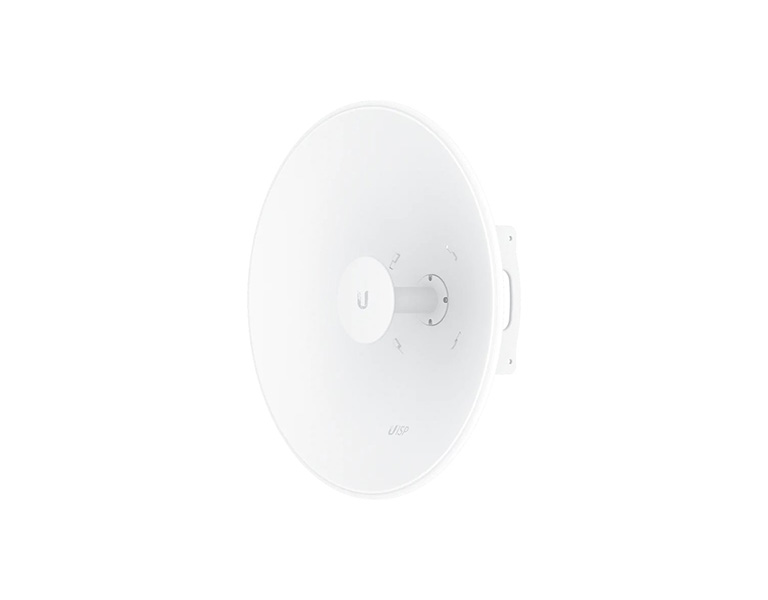

Ubiquiti UISP-Dish, parabolic antenna, 30dBi, 5-6GHz

Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz). The UISP® Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD) or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Dish also has a latch on each side for secure, snap-in radio connection.

Features:

• Frequency range: 5.15 - 6.875 GHz
• 30+ km PtP link range
• Precision mounting bracket for easy installation and alignment
• Two side latches for secure, snap-in radio connection

Notes: Compatible with the AF 5XHD and RP 5AC.
Operation frequency may vary based on regional radio frequencies and regulations.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Mechanical
Dimensions 650 x 200 mm
Weight Device: 4.54 kg
Mount: 3.1 kg
Enclosure materials Powder-coated galvanized steel, UV stabilized polycarbonate, aluminium alloy
Wind survivability Up to 200 km/h
Wind loading 860 N at 200 km/h
Mounting Alignment mounting kit (included)
Mechanical adjustment: ±15° elevation,
Pole compatibility: Ø40 to 90 mm
Weatherproofing IPX6
Hardware
Frequency range 5.15 to 6.875 GHz
Gain 30 dBi
Beamwidth Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical downtilt
Maximum VSWR 2:1
Polarization Dual-linear
Cross-pol isolation 20 dB
Azimuth polar plots Port 1
