Interline INT-HOR-09/24-V Horizon omnidirectional antenna 2,4 GHz / 9 dBi
Product Code:
INT-HOR-09/24-V
Manufacturer Interline
Sales price:
46,00 €(Includes 24% VAT)
Sales price without TAX:37,10 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

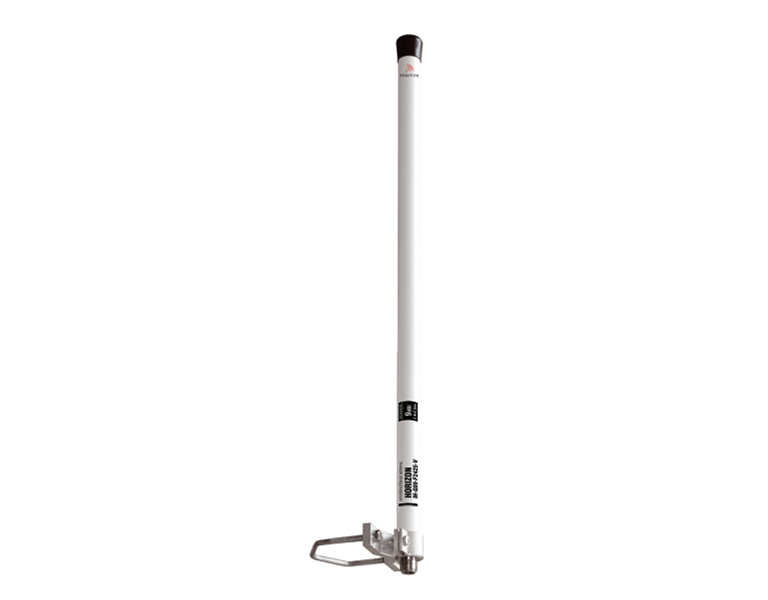

Interline INT-HOR-09/24-V Horizon omnidirectional antenna 2,4 GHz / 9 dBi
HORIZON series antennas are one of the most popular omnidirectional antennas available on the market. Carefully constructed, small, perfectly suited to the construction of base stations of medium-range using a single access point. In locations where there is a large amount of other networks, special attention should be on choosing the right coverage for a radio cell and should not be used antennas with too much profit, because the access points connected to them are likely to receive unwanted signals coming to them from remote networks.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Frequency | 2400-2500MHz |
| Gain | 9 dBi |
| VSWR (max) | 1.80:1 |
| Polarization | Vertical |
| Beamwidth (-3dB) - Horizontal | 360° |
| Beamwidth (-3dB) - Vertical | 15° |
| XPD (insulation polarity) | >20dB |
| Composite Max Power | 50W |
| Short circuit for DC | Yes |
| Impedance | 50Ω |
| Connector | N-female |

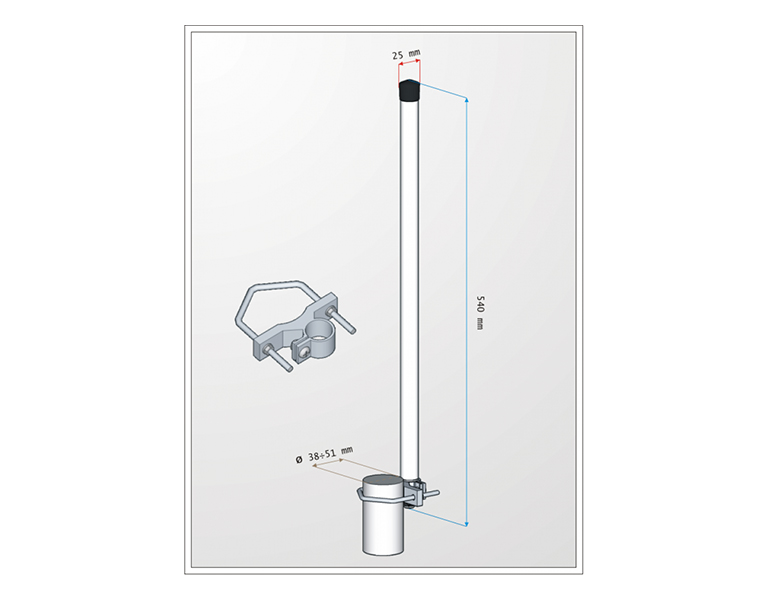

| Mounting diameter | ø 38...51mm |
| Dimensions (without mounting) | 540x26mm |
| Weight (with mounting) | 0.36kg |
| Assembly | Outside |
| Wind pressure | 130km/h |
| Classification of IP | IP64 |
| Temperature | -40°C ... 80°C |
| Compliance | ETSI EN 302 326-3 (CE) 2002/95/EC (RoHS) 2002/96/EC (WEEE) |
