Overview
Omnidirectional Coverage

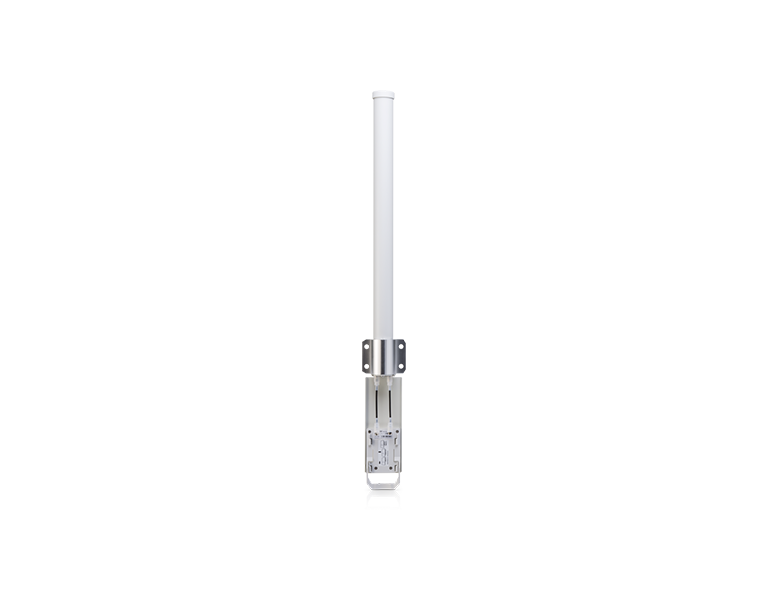

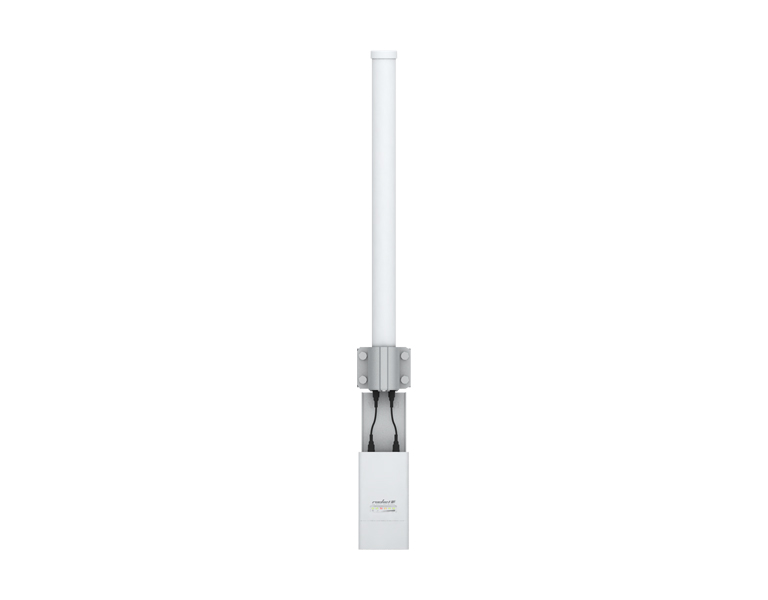

airMAX Omni is a Carrier Class 2x2 Dual Polarity MIMO Omnidirectional Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).
Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation. This seamless integration gives network architects unparalleled flexibility and convenience.
Below is one example of how airMAX Omni can be deployed:

Utilize airMAX Technology*
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high-speed, carrier-class links.
Latency Multiple features dramatically reduce noise.
*When Omni is paired with RocketM

Software
airOS
airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables highperformance, outdoor multipoint networking.
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support

airView
Integrated on all Ubiquiti M products, airView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
• Waterfall Aggregate energy over time for each frequency.
• Waveform Aggregate energy collected.
• Real-time Energy is shown realtime as a function of frequency.
• Recording Automize AirView to record and report results.

airControl
airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions*	799 x 90 x 65 mm
Weight*	0.82 kg
Frequency Range	5.45 - 5.85 GHz
Gain	13 dBi
Elevation Beamwidth	7°
Max VSWR	1.5:1
Downtilt	2°
Wind Survivability	125 mph
Wind Loading	19 lb @ 125 mph
Polarization	Dual-Linear
Cross-pol Isolation	25 dB min
ETSI Specification	EN 302 326 DN2

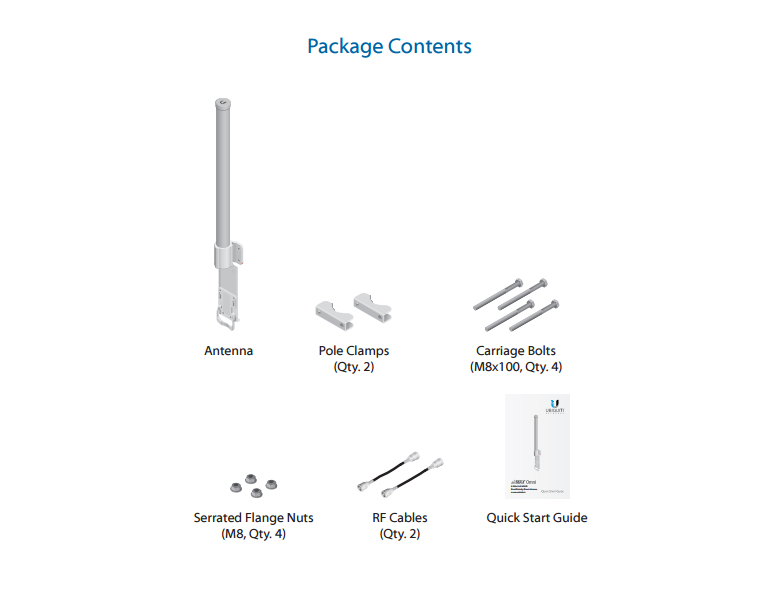

Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
