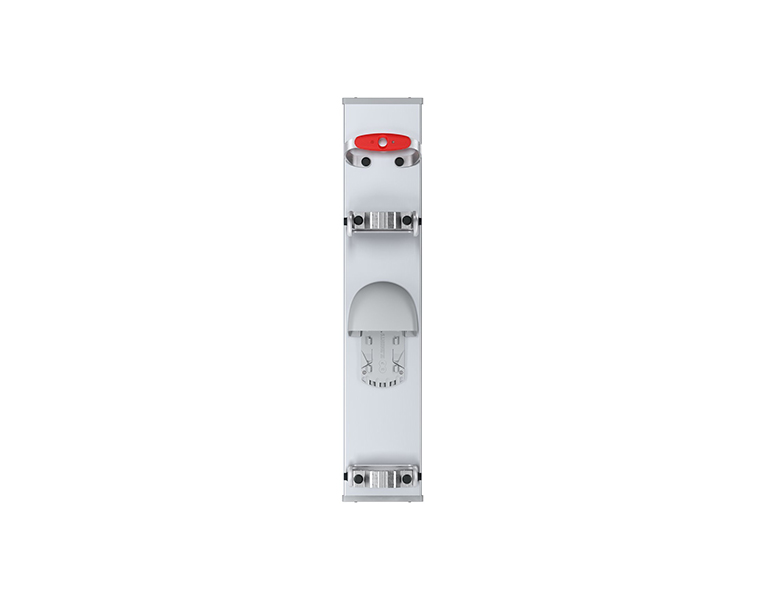

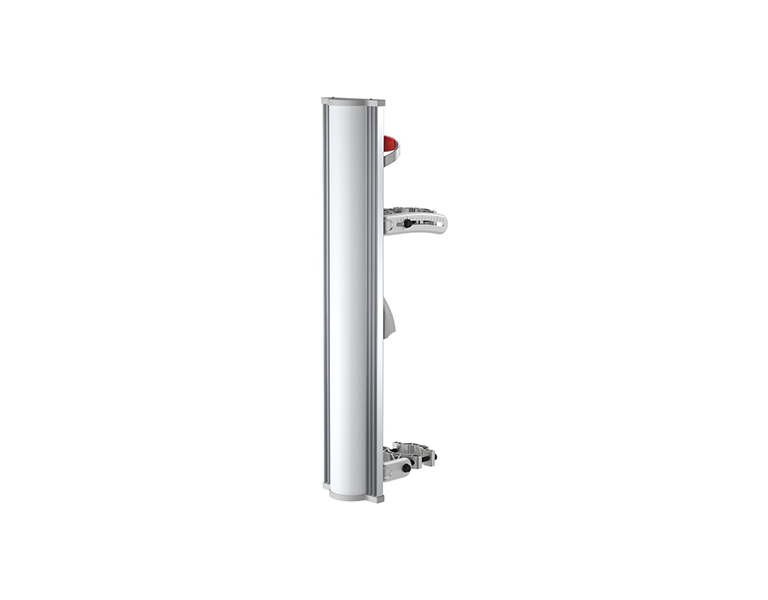

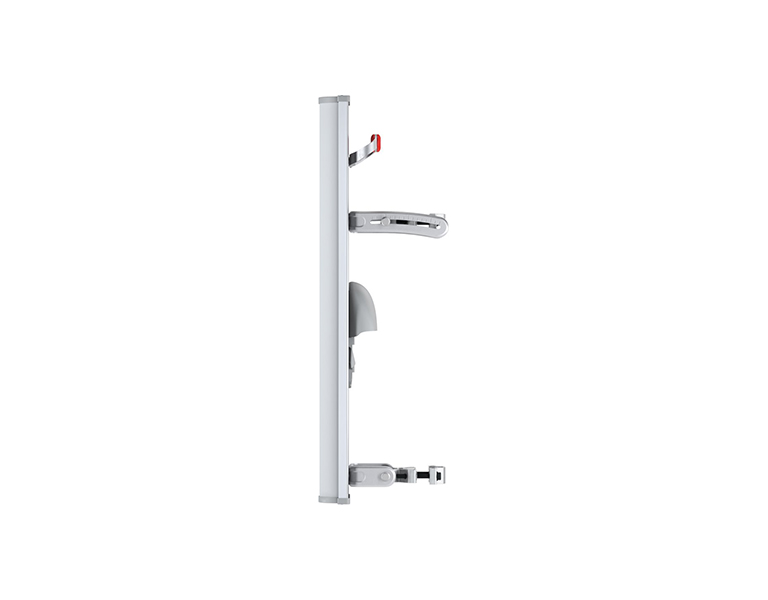

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. Sector dualpolarization antenna Array Sector 2-14 from the manufacturer RF Elements operating in the 2.4 GHz band with 14 dBi gain and a beam angle of 112°. Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

Stable Gain Across The Band
The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 2400 - 2484 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.

Wide Platform Compatibility
Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Antenna Connection	2x RP-SMA on integrated semi-flex pigtails
Antenna Type	Patch Array Sector
Materials	UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel
Enviromental	IP55
Temperature	-35°C to +60°C
Wind Survival	160 km/hour (100 miles/h)
Wind Loading	217/65 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area	1782/533 cm² - Front/Side
Electrical Downtilt	0°
Pole Mounting Diameter	40-80 mm (1.5-3.1 inch) Recommend as close to 80 mm (3.1 inch) as possible
Weight	3.7 kg – single unit 4.0 kg – single unit incl. package
Single Unit	Retail Box: 834 x 167 x 130 mm
Performance
Frequency Range	2400 - 2484 MHz
Gain	14 dBi
Polarization	Dual Linear H + V
Azimuth Beam Width -3 dB	H 71° / V 80°
Elevation Beam Width -3 dB	H 15° / V 15°
Azimuth Beam Width -6 dB	H 112° / V 112°
Elevation Beam Width -6 dB	H 21° / V 21°
Front-to-Back Ratio (Min)	21 dB
Beam Efficiency**	88% (**Main beam defined up to first null)
Cross Pol Isolation	H 30 dB / V 30 dB
Impedance	50 Ohm
VSWR Max	1.6
VSWR Typical	1.4
Isolation Between Ports	35 dB
Compatible wireless platforms
RF elements®	StationBox® S, StationBox® S CARRIER CLASS, RockShield™
Cambium Networks™	ePMP™ 1000AP and CSM*¹
MikroTik™	BaseBox² , NetBox² , NetMetal*²
Ubiquiti Networks™	Rocket™ M2, Rocket™ 2AC Prism
TP-Link	Pharos WBS210
