Game Changing Sector Antennas

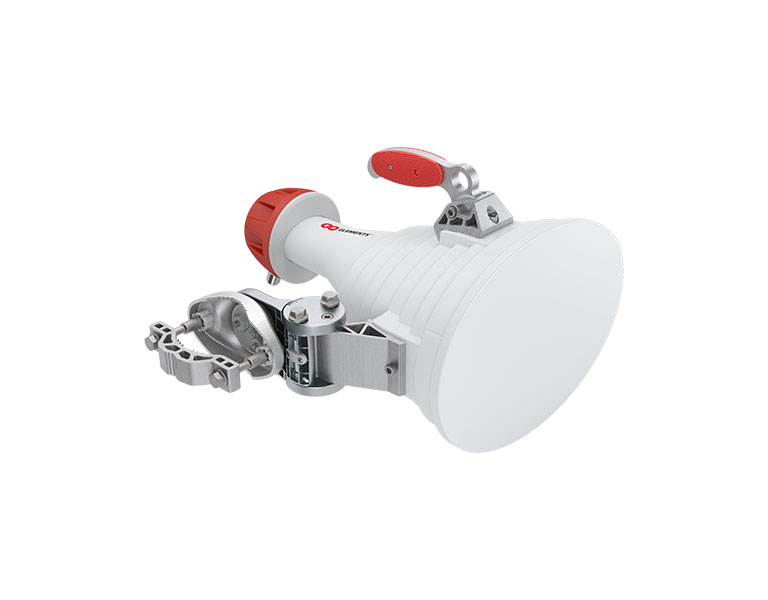

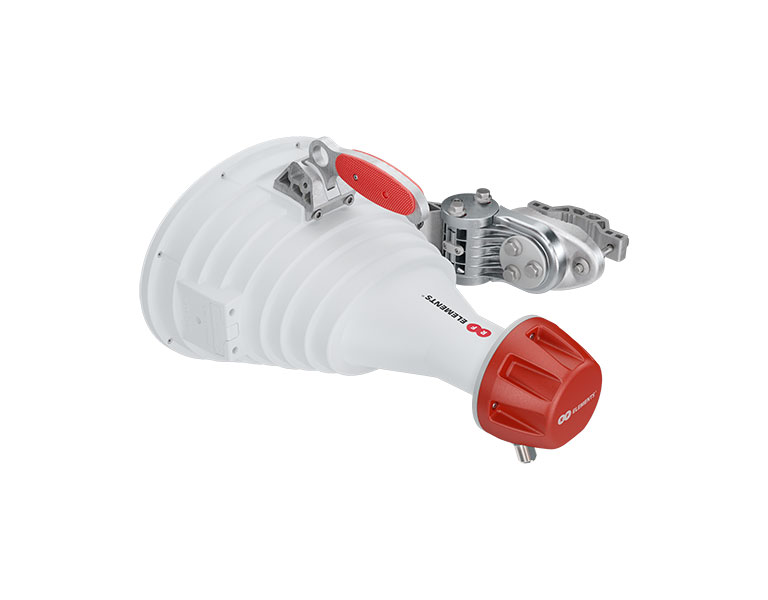

Asymmetrical Horn CC Antennas provide unique asymmetrical beam shape while maintaining excellent noise rejection and overall excellent performance of a well designed horn antenna with N-female connectors. Enabling new levels of network scalability and throughput increase. Asymmetrical Horn CC antennas complement the successful Symmetrical Horn Antennas.

Unique Asymmetrical Beam
Asymmetrical Horn CC Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in the elevation plane. This is useful for deployments where asymmetrical beam shape delivers better coverage.

No Side Lobes
Asymmetrical Horn CC Antennas have naturally suppressed side lobes because of their optimized design: they focus energy into a single main beam. Absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas.

Wideband Performance
The radiation pattern of Asymmetrical Horn CC Antennas is stable over the whole band width of operation.

Gain Performance
Asymmetrical Horn CC Antennas have higher gain compared to Symmetrical Horn Antennas with the same azimuth beam width. Asymmetrical Horn CC Antennas cover ultra-wide frequency range: 5180-6000 MHz with excellent VSWR performance.

Perfect Coverage Pattern
Mainstream patch array sector antennas have radiation pattern extremely wide in the azimuth and extremely narrow in the elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn CC Antennas provide valuable extra degrees of the elevation beam width, shrinking the null zone while preserving the increased gain for long-range performance.

Breakthrough Scalability: Expanded
RF elements® Horn CC Antennas enable extraordinary network scalability. Asymmetrical Horn CC Antennas are a new addition to the toolbox of a modern WISP. Unique beam performance, precise radiation patterns, and increased gain push system scalability even further.

N-type Connectors
Asymmetrical Horn CC Antennas feature N-female connectors, used with a wide range of radios, such as Mimosa™ A5c, Cambium Networks™ PMP 450, LigoWave™, and many others.

Built Like a Tank
Asymmetrical Horn CC Antennas have solid aluminium body, built to last and resist any weather conditions. RF elements uses the most suitable materials: die cast, stamped, and extruded aluminium; stainless steel, high quality ABS plastic, and high density polyethylene.

Innovative Bracket
Asymmetrical Horn CC Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.
Step 1: Bracket Installation First install the bracket on the pole. The pole bracket is reversible: it can be mounted on the left or the right side of the antenna.
Step 2: Antenna Adjustment Simply slide the antenna in the bracket and adjust the elevation and the azimuth. Tighten the screws to finish the installation. Only one tool is needed for the entire installation.

Antenna Models
Asymmetrical Horn CC series features four different antennas with beam widths of 20, 30, 60 and 90 degrees in the azimuth plane.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Radio Connection	2x N Female Bulkhead Connector
Antenna Type	Horn
Materials	UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Enviromental	IP55
Pole Mounting Diameter	36-80 mm
Temperature	-35°C to +55°C
Wind Survival	160 km/hour
Wind Loading	67 N at 160 km/hour
Mechanical Adjustment	± 25° Elevation, ± 20° Azimuth
Weight	4.5 kg / 10.0 lbs – single unit* 6.6 kg / 14.6 lbs – single unit incl. package* (*Subject to change)
Single Unit	Retail Box: 435 x 360 x 250 mm* (*Subject to change)
Performance
Frequency Range	5180 - 6000 MHz
Gain	20.5 dBi
Azimuth Beam Width -3 dB	H 15° / V 15°
Elevation Beam Width -3 dB	H 21° / V 21°
Azimuth Beam Width -6 dB	H 20° / V 20°
Elevation Beam Width -6 dB	H 30° / V 30°
Beam Efficiency**	95 % (**Main beam defined up to first null)
Front-to-Back Ratio	35 dB
VSWR Max 5180-6000 MHz	1.8
Polarization	Dual Linear H + V
Impedance	50 Ohm
