Ubiquiti AM-5AC21-60 5GHz AC AirMax Dual-Chain BaseStation 21dBi 60deg Sector Antenna

Overview
As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Performance

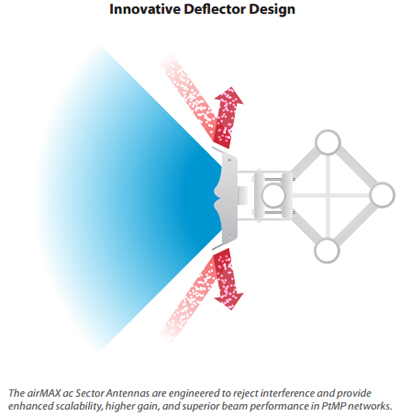

The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

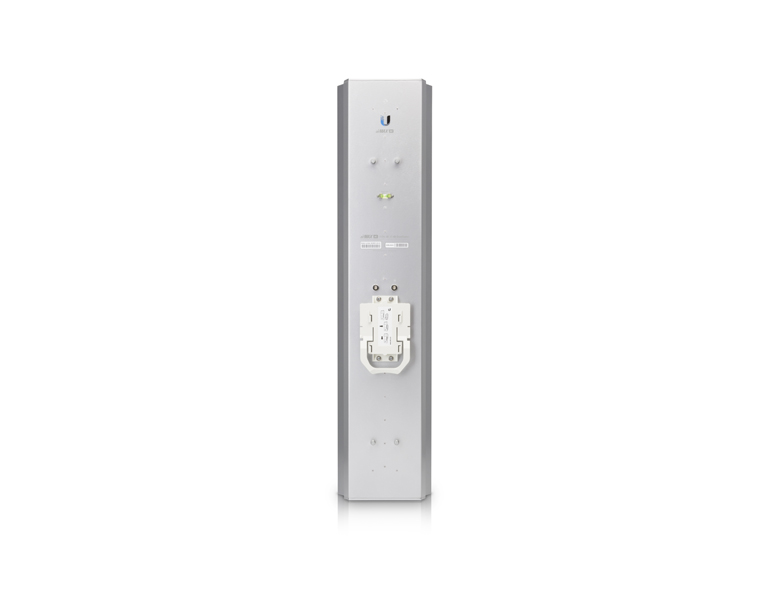

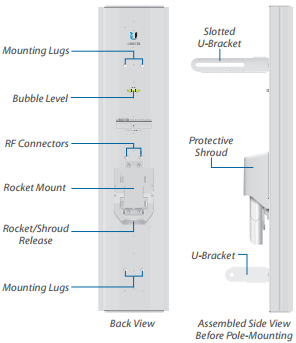

Hardware Overview
The airMAX ac Sector Antenna features robust construction for industrial-strength durability during outdoor use.
