Overview
Sector Coverage

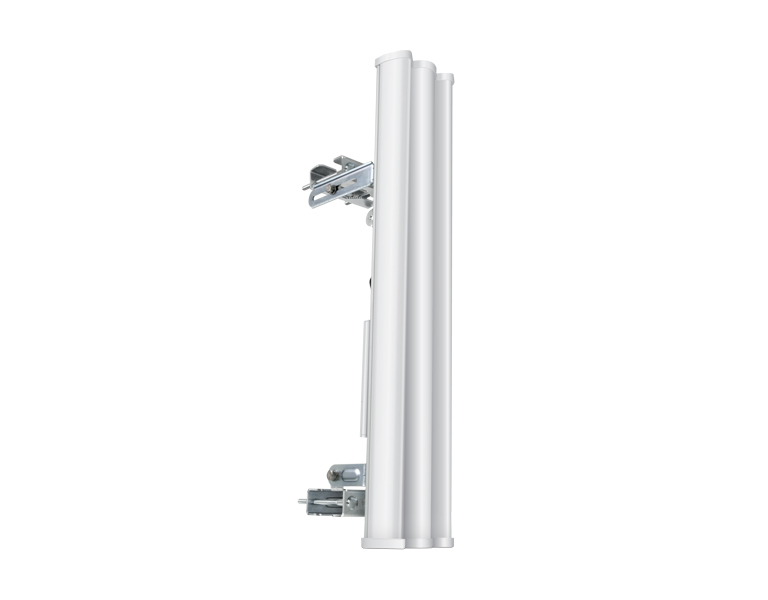

The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).
Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation.
This versatile combination gives network architects unparalleled flexibility and convenience.
Below is one example of how the airMAX Sector Antenna can be deployed:

airMAX Sector Antennas provide sector-wide coverage and utilize airMAX technology to produce carrier-class performance and power.

Utilize airMAX Technology*
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high-speed, carrier-class links.
*When airMAX Sector is paired with RocketM

Software
airOS
airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multipoint networking.
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support

airView
Integrated on all Ubiquiti M products, airView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
• Waterfall Aggregate energy over time for each frequency.
• Waveform Aggregate energy collected.
• Real-time Energy is shown in real time as a function of frequency.
• Recording Automate airView to record and report results.

airControl
airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions*	700 x 135 x 73 mm
Weight**	5.9 kg
Frequency Range	5.15 - 5.85 GHz
Gain	18.6 - 19.1 dBi
HPOL Beamwidth	123° (6 dB)
VPOL Beamwidth	123° (6 dB)
Electrical Beamwidth	4°
Electrical Downtilt	2°
Max VSWR	1.5:1
Wind Survivability	125 mph
Wind Loading	20 lbf @ 100 mph
Polarization	Dual-Linear
Cross-pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2

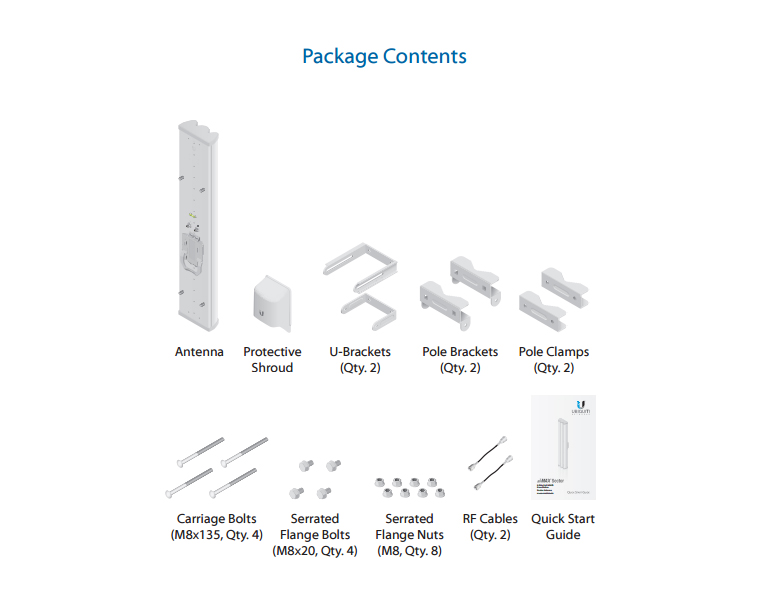

Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
