E-zy EZ-SMAM2SMAM SMA-Male to SMA-Male adapter

Product Code:
EZ-SMAM2SMAM
Manufacturer E-zy
Sales price: 1,80 €(Includes 24% VAT)
Sales price without TAX:1,45 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

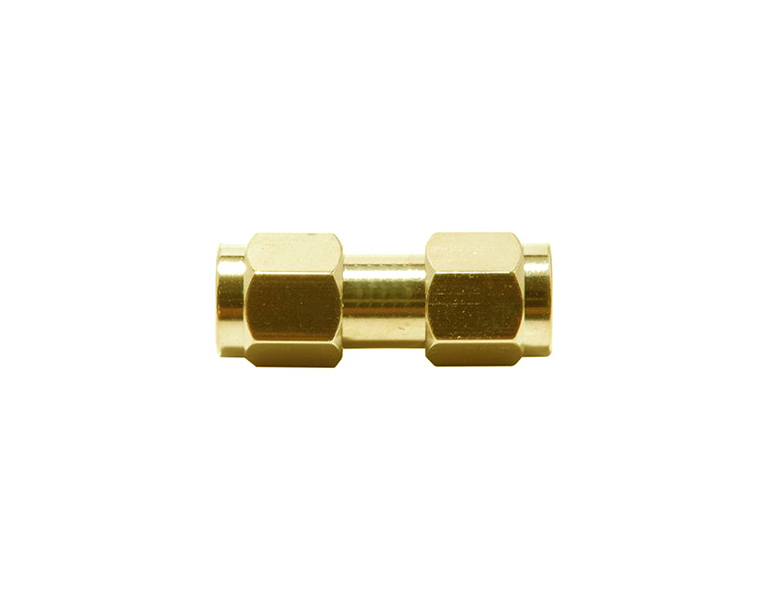

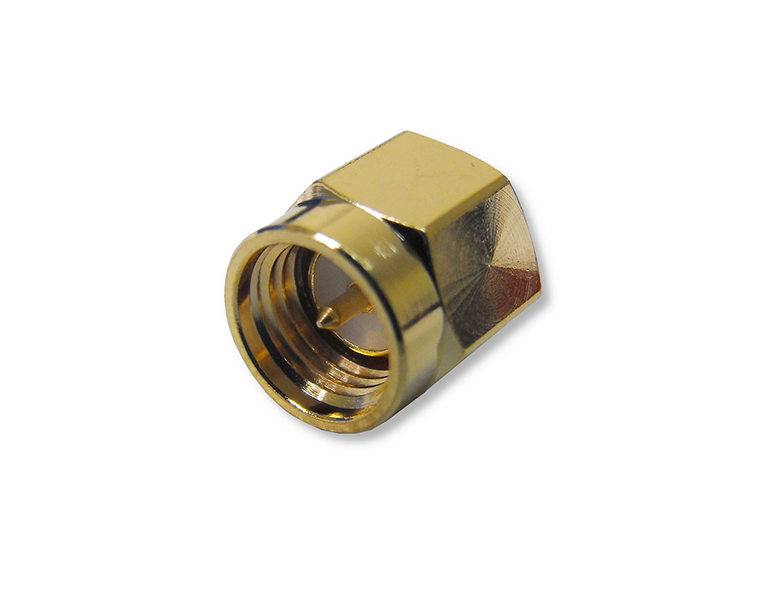

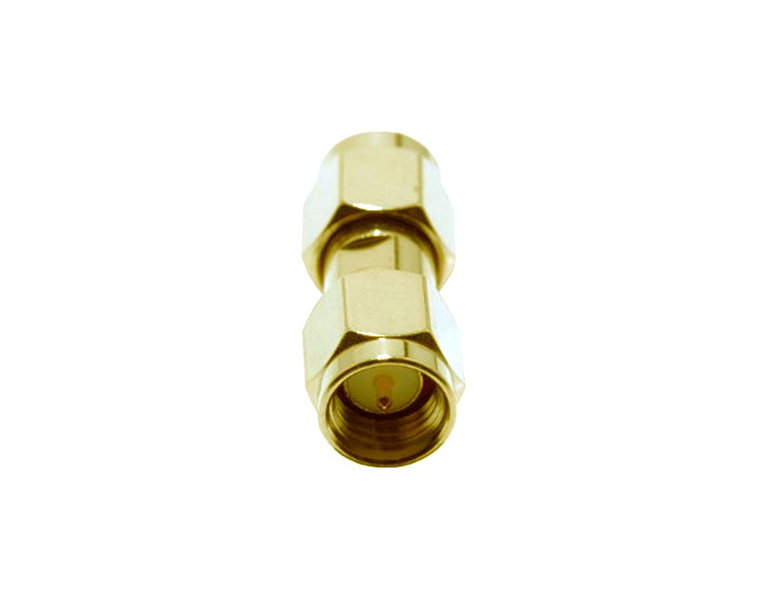

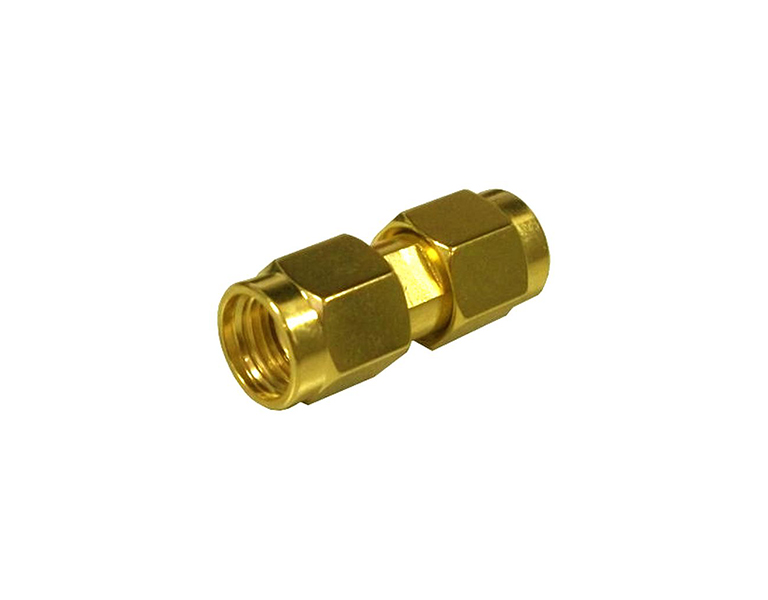

E-zy EZ-SMAM2SMAM SMA-Male to SMA-Male adapter

SMA-Male to SMA-Male adapter.
SMA to SMA Series coaxial adapters have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The SMA to SMA series adapter is impedance matched to 50 ohm cables.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss <2,5 dB
Insulation Resistance 5,000 Megohms min
Connector Body Gold Plated
Center Pin Gold Plated
Dielectric Teflon
O-Ring Not Present
