MikroTik RBwAPR-2nD&R11e-LR2 wAP LR2 kit

Product Code:
RBwAPR-2nD_R11e-LR2
Manufacturer Mikrotik
Sales price: 165,00 €(Includes 24% VAT)
Sales price without TAX:133,06 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

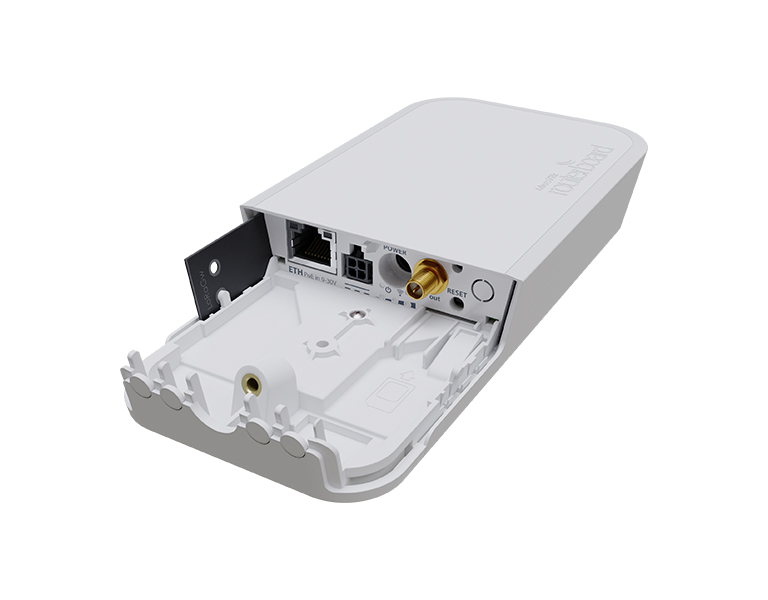

MikroTik RBwAPR-2nD&R11e-LR2 wAP LR2 kit




MikroTik's newest out-of-the-box solution for LoRa® technology. Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.
Here’s the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn’t interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.
There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage. MikroTik suggests using the TOF-2400-8V-4 Omni antenna for best results.
MikroTik has decided to keep the classic wAP form-factor that has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions. Functional and non-intrusive design, astonishing durability, and great value remain at the core of this design.
The whole IoT community is exploring the 2.4 GHz LoRa® possibilities – join them and be among the first ones to benefit from the increased data rates.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Product code RBwAPR-2nD&R11e-LR2
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Dimensions 185 x 85 x 30 mm
Tested ambient temperature -40°C to 60°C
Powering
PoE in Passive PoE
PoE in input Voltage 9-30 V
Number of DC inputs 3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 8 W
FAN count Passive
Wireless
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Antenna gain 2 dBi (WiFi) 4.7 dBi (LoRa®)
Antenna beam width 360°
Ethernet
10/100 Ethernet ports 1
Peripherals
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS
