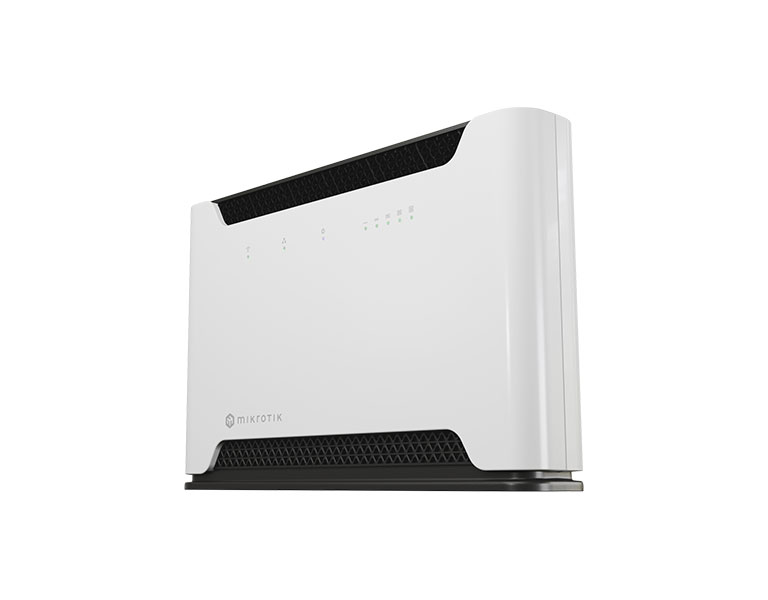

Chateau is a high-speed, dual-band home access point that adapts to your needs. It features a powerful quad-core ARM CPU, a fast, reliable, and responsive CAT6 LTE modem for excellent mobile connectivity, and the most advanced networking software on the market – RouterOS.Chateau is designed to serve the most diverse user groups: IT professionals can push it to its limits, regular households can plug it in and forget it exists. With Chateau, you will always have options.

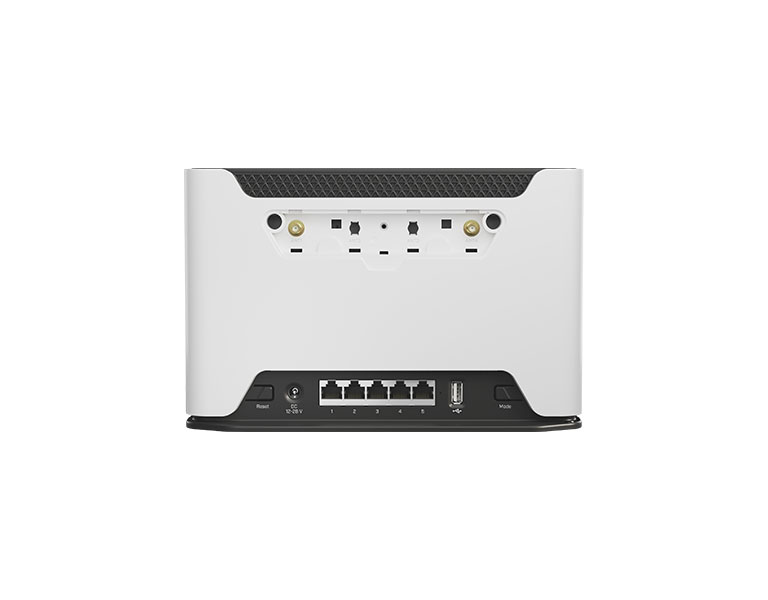

5x Gigabit Ethernet ports can be useful to connect all your home devices (media servers, PC towers, TV’s). You can also keep the LTE as a backup and use the Gigabit Ethernet to connect to a wired ISP for even higher speeds!
Chateau has two powerful (2x2 MIMO compatible!) integrated antennas, but you can connect two external LTE antennas (not included) for an even stronger signal.
Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, they have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.
Chateau comes with all the advanced RouterOS features, so you’re getting enterprise-level solutions with consumer-grade pricing. Run a secure VPN from the office directly to your home, enable all kinds of parental control, dive deep into specific firewall rules and IPsec hardware acceleration, configure VLANs, set up e-mail or SMS notifications.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | D53G-5HacD2HnD-TC&FG621-EA |
CPU | Quad-Core IPQ-4019 716 MHz |
CPU architecture | ARM 32bit |
Size of RAM | 256 MB |
RAM type | DDR3L |
Storage | 16 MB, Flash |
Number of 1G Ethernet ports | 5 |
USB port | 1 (2.0 type A) |
Switch chip model | IPQ-4019 |
Wireless interface model | IPQ-4019 (2.4 GHz), IPQ-4019 (5 GHz) |
Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
Antenna gain | 2.4 GHz - 2 dBi, 5 GHz - 4 dBi |
LTE category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
LTE modem | FG621-EA |
TAC | 86335904 |
MIMO DL | 2x2 |
LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
3G Bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
Dimensions | 240 x 156 x 44 mm |

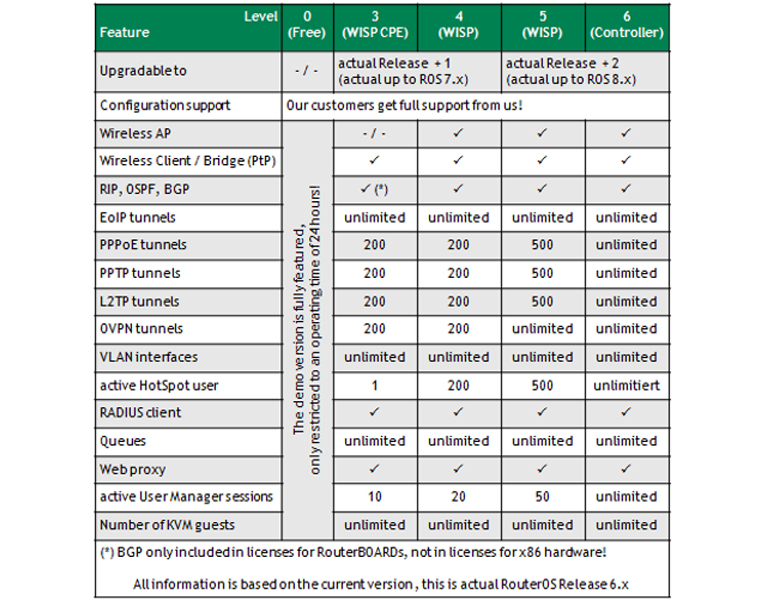

Operating system | RouterOS v7, License level 4 |
Operating temperature | -40°C to +70°C |
MTBF | Approximately 200'000 hours at 25°C |
IPsec hardware acceleration | Yes |
Powering | |
Number of DC inputs | 1 |
DC jack input Voltage | 12-28 V |
Power adapter nominal voltage | 24 V |
Power adapter nominal current | 1.2 A |
Max power consumption without attachments | 15 W |
Max power consumption | 21 W |
Mobile |
|
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
TAC | 86335904 |
Wireless | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2 |
Wireless 2.4 GHz chip model | IPQ-4019 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 4 |
Wireless 5 GHz chip model | IPQ-4019 |
Wireless 5 GHz generation | Wi-Fi 5 |
WiFi speed | AC1200 |
Ethernet | |
10/100/1000 Ethernet ports | 5 |
Peripherals | |
Number of SIM slots | 1 Modem (Micro SIM) |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other | |
Mode button | Yes |
Certification & Approvals | |
Certification | CE, EAC, ROHS |
IP | 20 |
