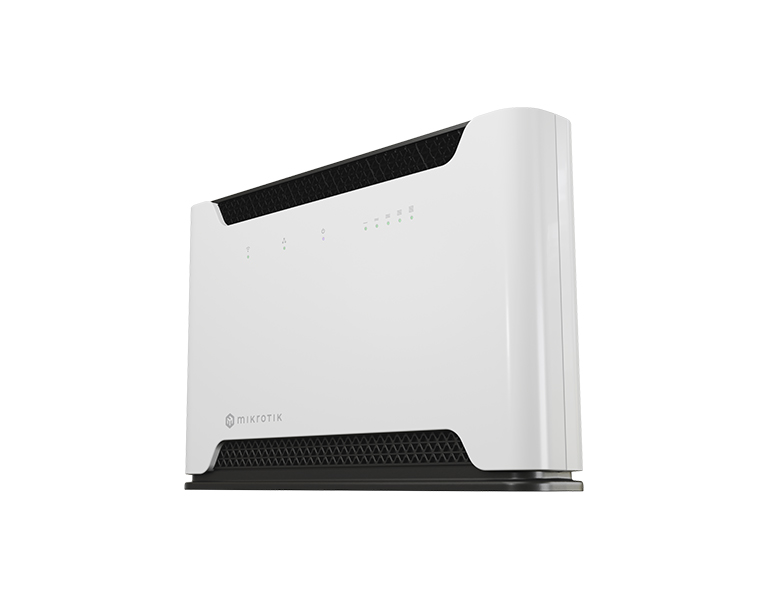

Mikrotik introduces the new Chateau LTE12 (2025) with an upgraded LTE modem. The Chateau LTE12 (2025) is a dual-band home WiFi router with 5x Gigabit LAN ports and a category 12 LTE modem, including a USB port. The modulation speed of the 2.4GHz reaches up to 300Mbps, while the 5GHz band supports up to 866Mbps.

The Chateau features four built-in WiFi antennas and two connectors for external LTE antennas (antennas are not included in the package).

With the Chateau LTE12 kit, you are no longer restricted by cabling – CAT12 LTE provides speeds of up to 600 Mbps for download and up to 150 Mbps for upload with low latency. LTE CAT12 enables devices to use three bands simultaneously, which is beneficial in areas with high LTE traffic or weak signal strength.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Product code	D53G-5HACD2HND-TC_EG120K-EA
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	448-896 (auto) MHz
Switch chip model	IPQ-4019

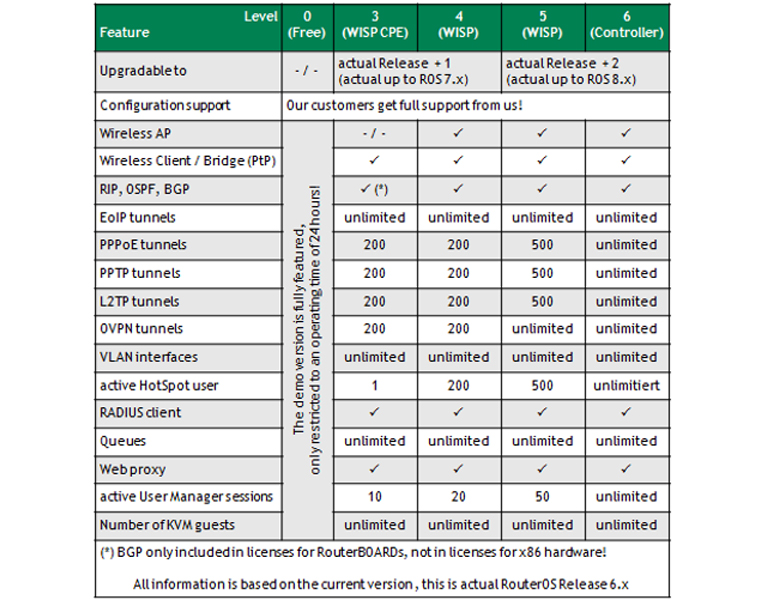

RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C
Powering
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	24 W
Max power consumption without attachments	18 W
FAN count	Passive
Mobile
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	12 (600Mbps Downlink, 150Mbps Uplink)
MIMO DL	4x4
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)
Wireless
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	IPQ-4019
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5
Ethernet

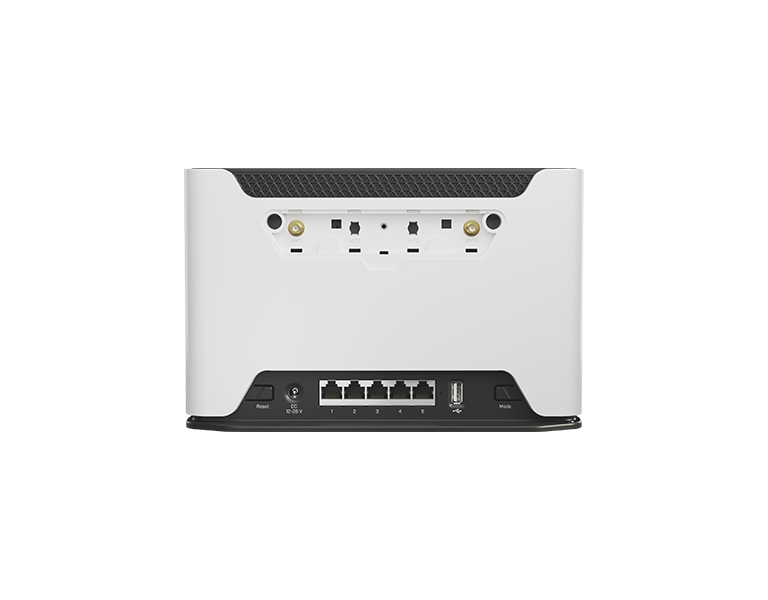

10/100/1000 Ethernet ports	5
Peripherals
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Number of M.2 slots	1
Other
Mode button	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20
