LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.

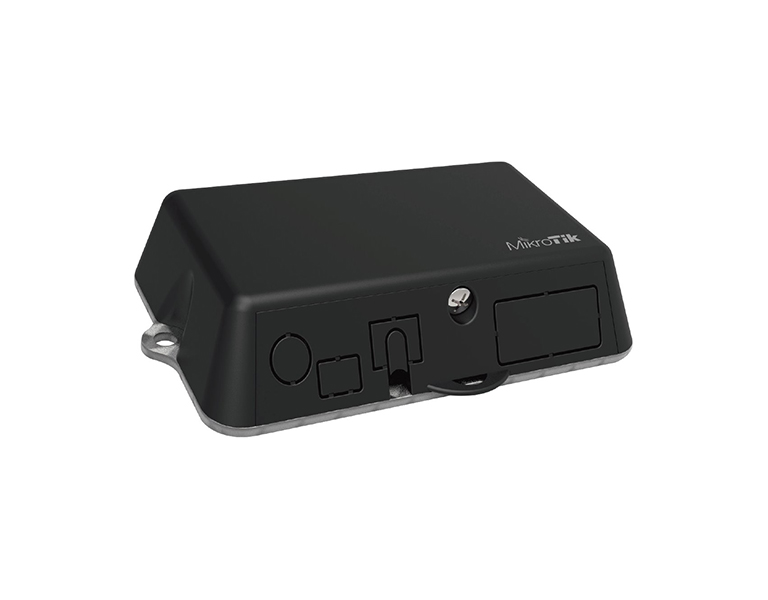

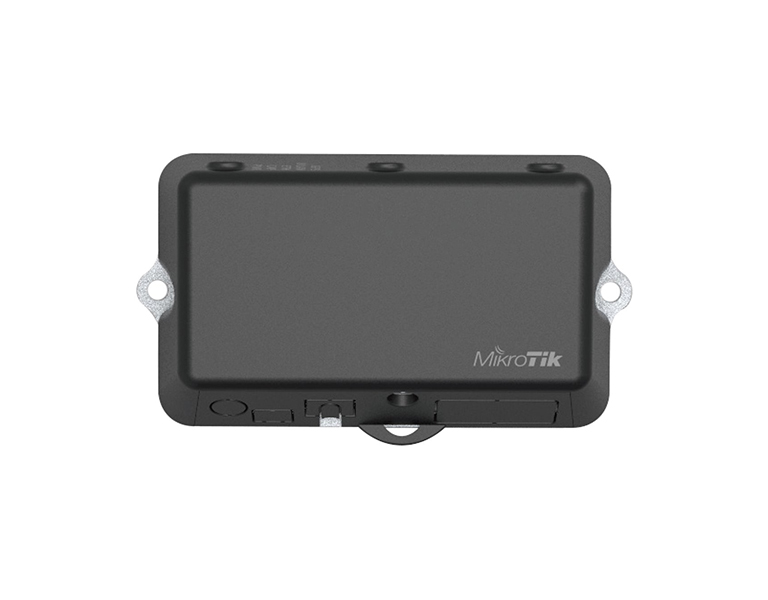

LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.

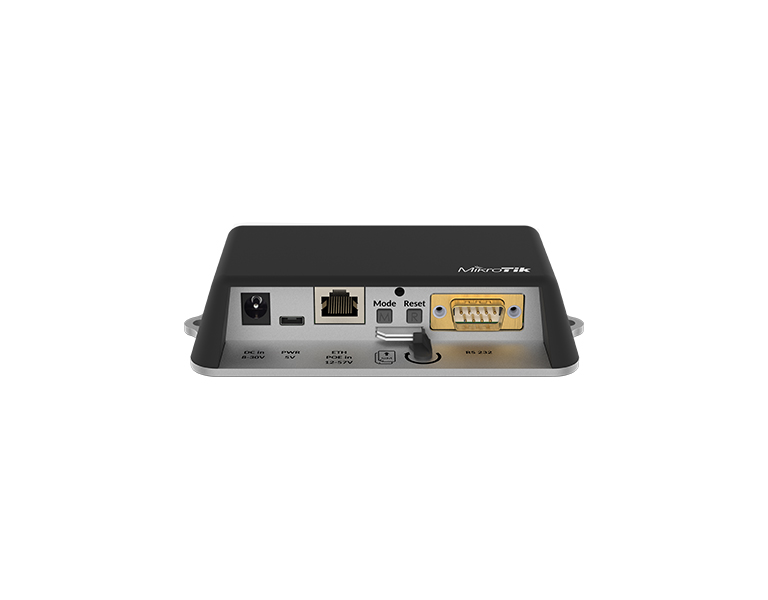

There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.

The power options are as flexible as they get. You have the classic DC jack, passive PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!

The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.

We have provided a simple tracking application example in the RouterOS documentation - to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Product code	RB912R-2nD-LTm&EC200A-EU
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz

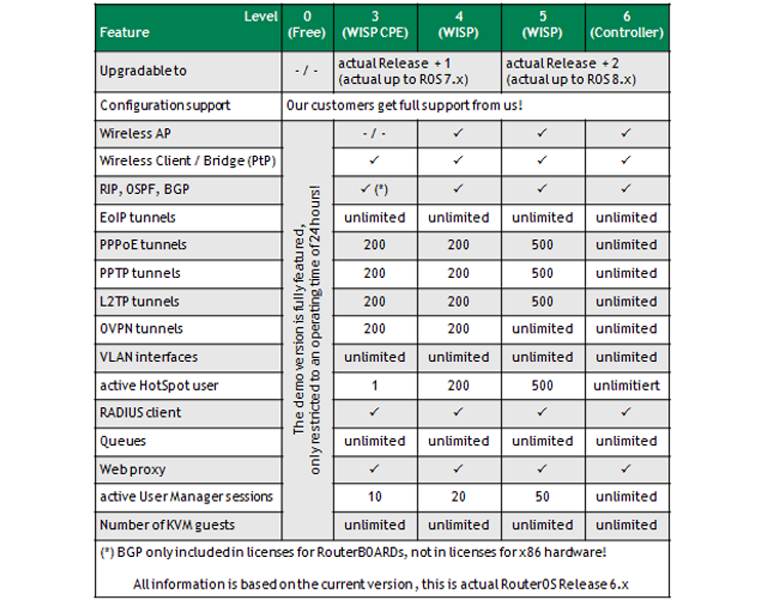

RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering
MicroUSB input Voltage	5 V
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Number of DC inputs	3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage	8-30 V
Max power consumption	8 W
Cooling type	Passive
Mobile
2G Category	Class12
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	20 (800MHz) / 8 (900 MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands	40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
2G bands	8 (900MHz) / 3 (1800MHz)
3G bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
TAC	86314105
Wireless
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	2 Modem (Mini SIM)
MiniPCI-e slots	1
Serial console port	RS232
Other
Mode button	Yes
GNSS standards	GPS
GPS RF connector type	uUFL
Certification & Approvals
Certification	CE, E-MARK, EAC, ROHS
IP	IP54
Included Parts	• 24V 1.2A power adapter • PoE injector • External DC cable • K-52 fastening set
