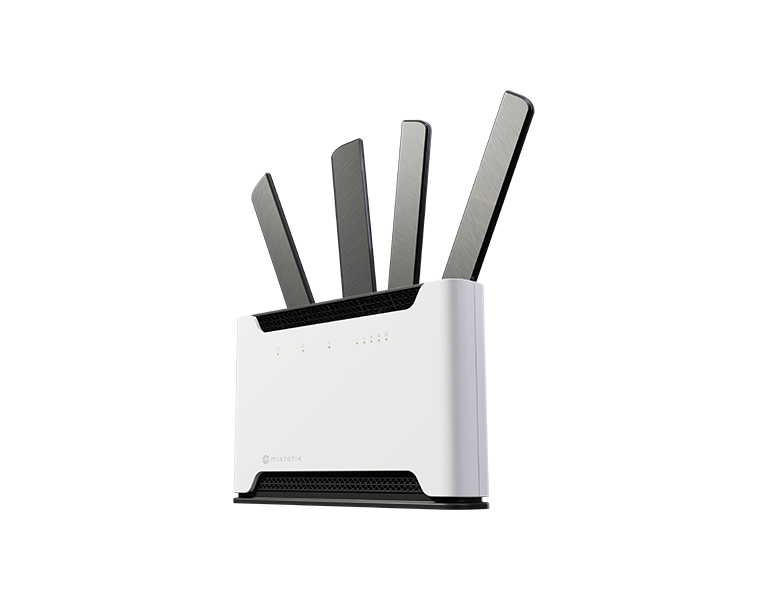

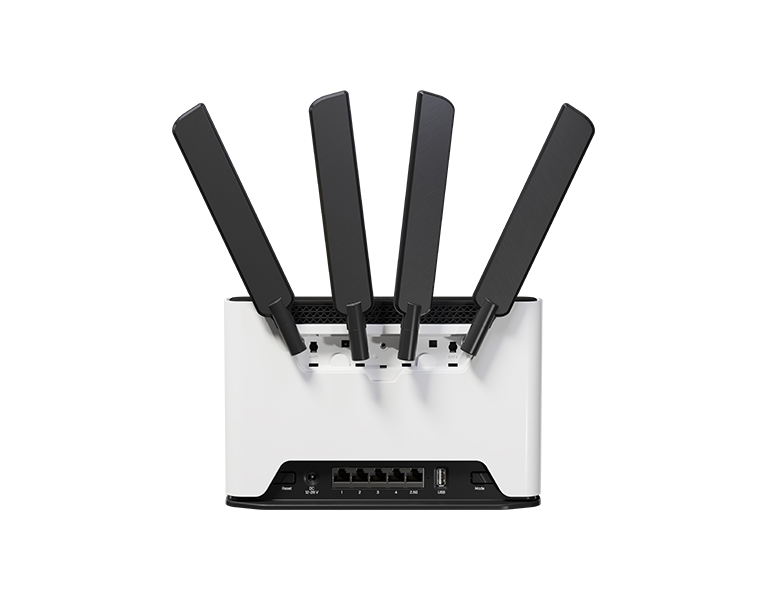

The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau 5G ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Mikrotik has made massive improvements to the wireless radio and antennas. Chateau 5G ax supports MIMO 4x4 on 5G and LTE. There are 6 built-in LTE/5G antennas. One pair of external antennas provides even better wireless network coverage in the largest homes, and the other - improved LTE/5G connectivity. The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Product code	S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
Architecture	ARM 64bit
CPU	IPQ-6010
CPU core count	4
CPU nominal frequency	auto (864-1800) MHz

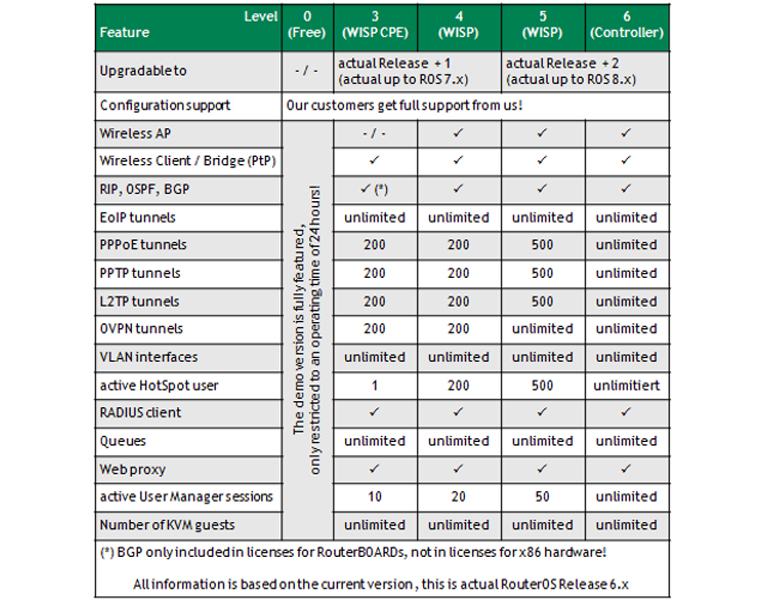

License level	4
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 65°C
IPsec hardware acceleration	Yes
Powering
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	19 W
Max power consumption without attachments	16 W
FAN count	Passive
Mobile
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 6 (850 MHz) / 8 (900MHz) / 19 (800 MHz)
LTE Category	20 (2.0 Gbps Downlink, 200 Mbps Uplink)
MIMO DL	4x4
MIMO UL	1x1
LTE FDD bands	3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 1 (2100MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	34 (2000 MHz) / 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
5G NSA FDD bands	1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G NSA TDD bands	38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz)
5G SA FDD bands	1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G SA TDD bands	38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz)
Wireless
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	3
Wireless 2.4 GHz chip model	QCN-5022
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	6
Wireless 5 GHz chip model	QCN-5052
Wireless 5 GHz generation	Wi-Fi 6
Ethernet
10/100/1000 Ethernet ports	4
Number of 2.5G Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Number of M.2 slots	1
Other
Mode button	Yes
Voltage Monitor	Yes
PCB temperature monitor	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

Wireless Specifications
2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	23	-100
11MBit/s	23	-94
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67
