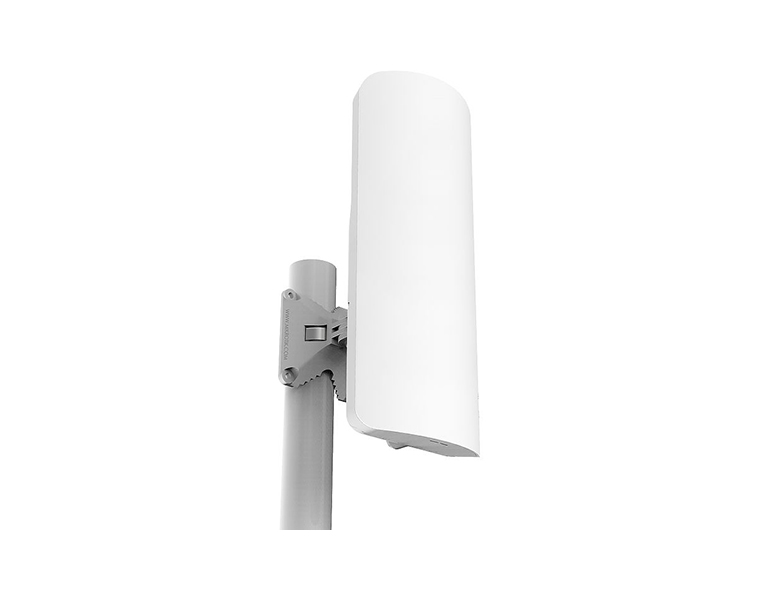

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.
The mANTBox is based on the new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
The mANTBox 2 12s is compatible with the SXT type mount, so you can use it with durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RB911G-2HPnD-12S |
CPU | AR9342 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 140 x 348 x 82 mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering | |
PoE in | Passive PoE |
PoE in input Voltage | 10-28 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 8-30 V |
Max power consumption | 11 W |
Wireless | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 12 |
Wireless 2.4 GHz chip model | AR9342 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet | |
10/100/1000 Ethernet ports | 1 |
Other | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals | |
Certification | CE/RED, FCC, IC, EAC, ROHS |
IP | IP54 |
