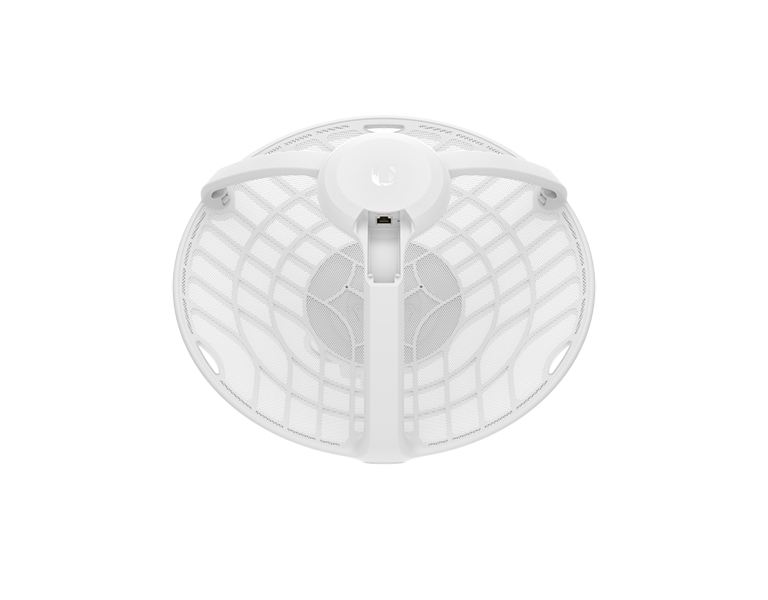

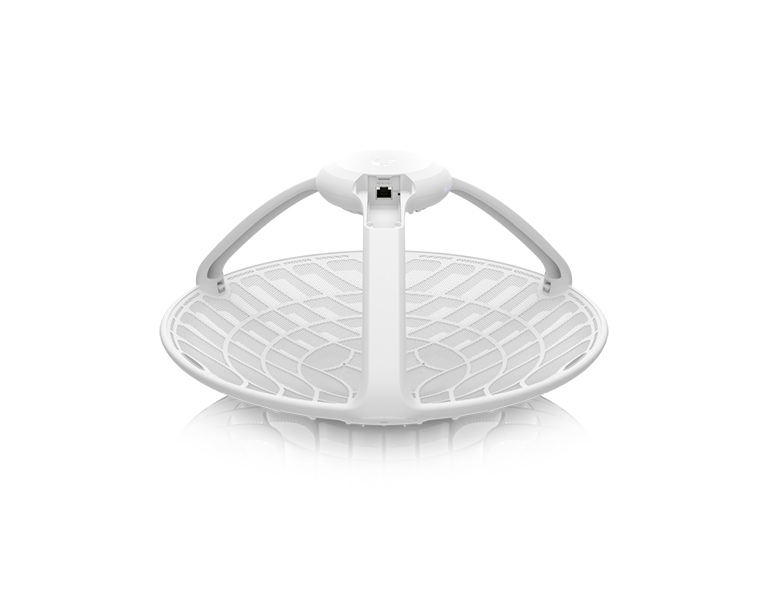

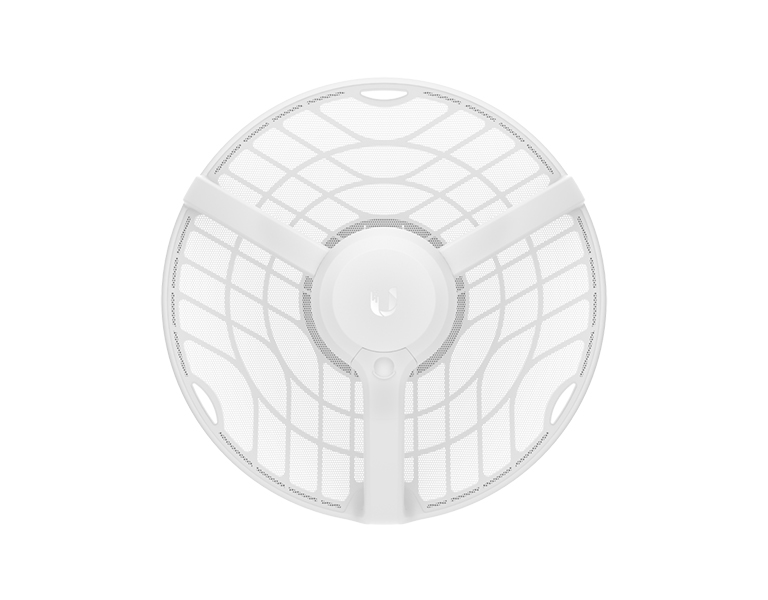

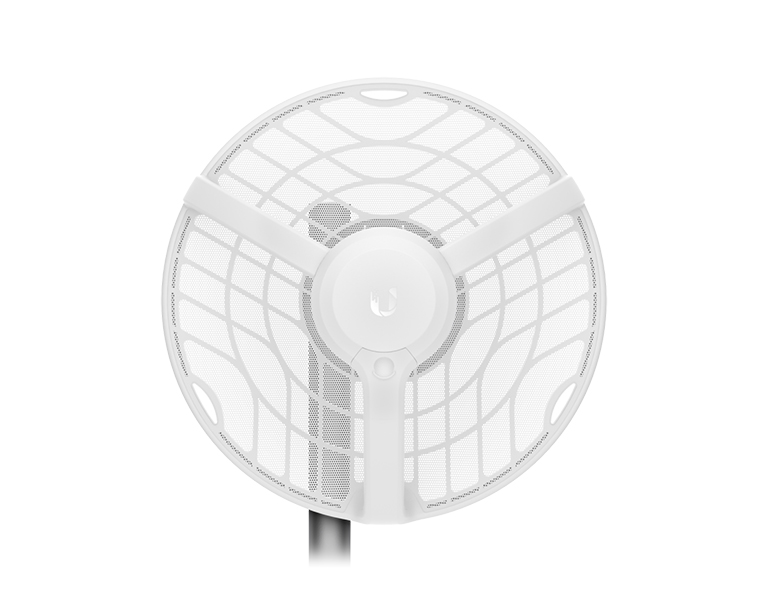

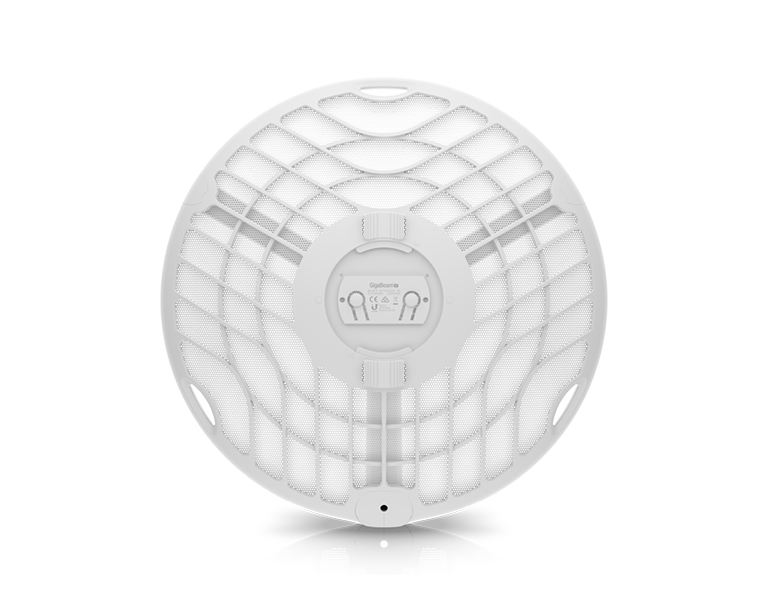

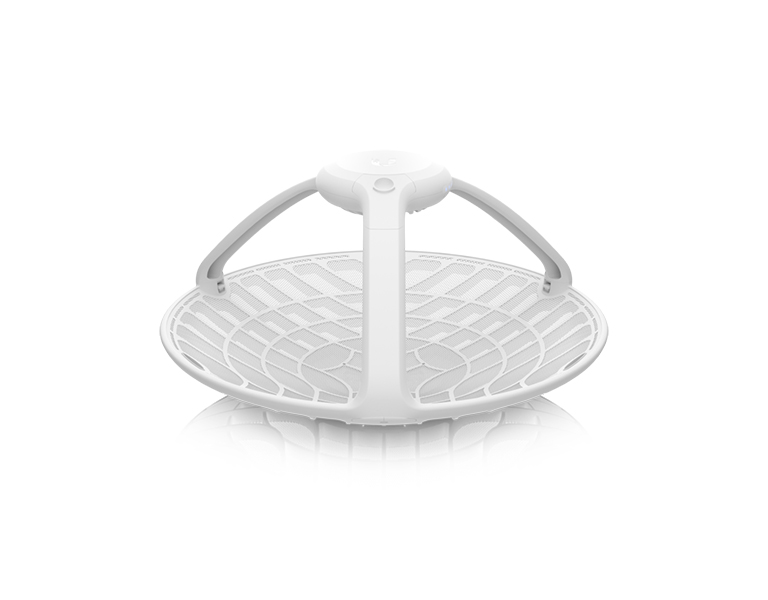

Ubiquiti GBE-LR airMAX GigaBeam Long-Range 60/5 GHz Radio
Product Code:
GBE-LR
Manufacturer Ubiquiti
Sales price:
285,00 €(Includes 24% VAT)
Sales price without TAX:229,84 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
Ubiquiti GBE-LR airMAX GigaBeam Long-Range 60/5 GHz Radio
Featuring a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.
Features:
• 60 GHz radio with 5 GHz radio backup
• Low-interference 60 GHz spectrum
• Up to 1+ Gbps with low latency
• Long-range performance
• 2.4 GHz management radio
• Full bandwidth support: 2.16 GHz
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
|
| Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following: Regulation of Use of Radio Spectrum. EU executive decision. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Dimensions | 415 x 415 x 303 mm |
| Weight Without Mount With Mount |
1.4 kg 1.8 kg |
| Enclosure | Aluminum, UV-stabilized Polycarbonate |
| Antenna Gain 5 Ghz 60 Ghz |
11 dBi 38 dBi |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet Port |
| Max. Power Consumption | 11W |
| Power Method | Passive PoE, Pins 4, 5+ and 7, 8- |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter (Included) |
| Voltage Range | +22 to +26VDC |
| LEDs | Power/Ethernet/5G/60G |
| Wind Loading | 56 N @ 200 km/h <(12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Pole Mount (Included) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| Radio | |
| Max. Conducted TX Power 5/60 GHz Combined |
25 dBm |
| Channel Bandwidth 60 Ghz 5 Ghz |
2160 Mhz 20/40/80 Mhz |
There are yet no reviews for this product.
