• 5 GHz backup radio
• Operational range of up to 500 meters
• 6.6 Gbps throughput rate
• Additional GbE RJ45 port with PoE++
• Integrated outer diameter alignment LED for easy setup

Managed with the UniFi Network application: Version 6.3 and later.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following:
Regulation of Use of Radio Spectrum.
EU executive decision.
Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical
Dimensions	Ø191.77 x 58.95 mm
Weight	Without mount: 1.7 kg With mount: 2.85 kg
Enclosure materials	Aluminum alloy, UV-resistant polycarbonate
Mount material	Stainless steel

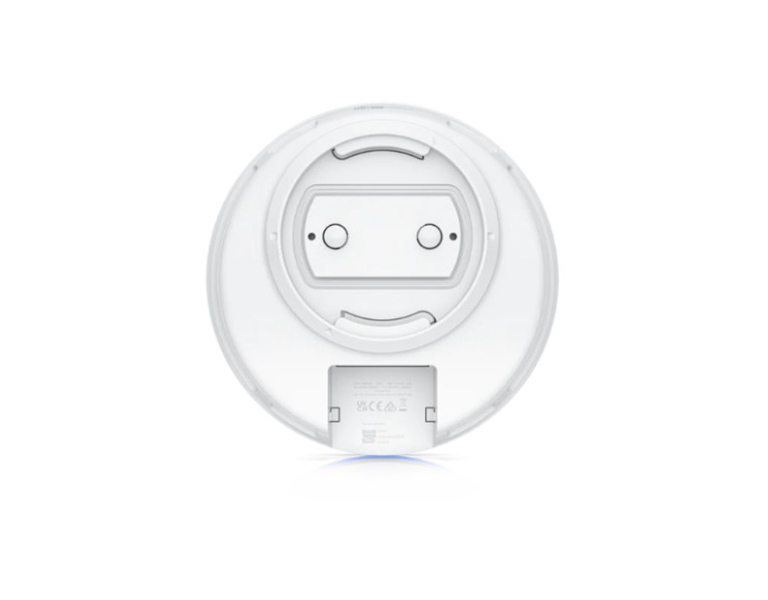

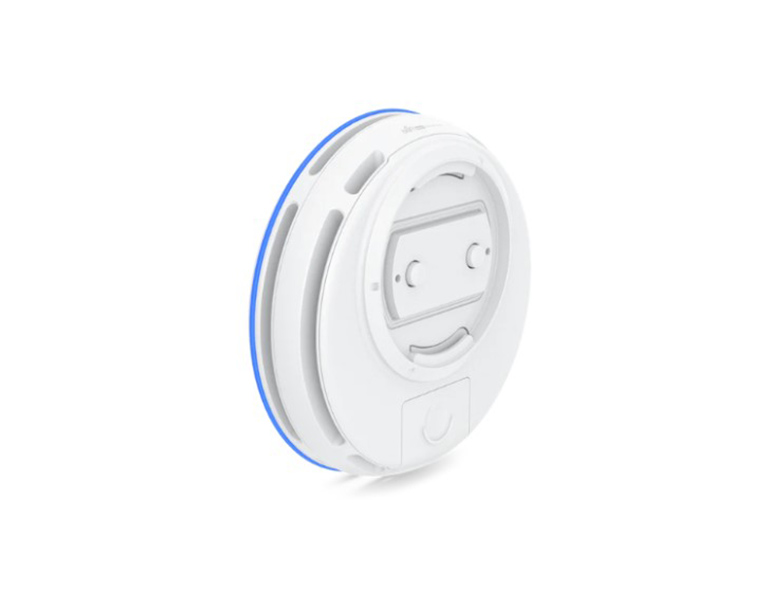

Mounting	60G precision alignment pole mount(included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5")
Weatherproong	IPX6
Hardware
Management interface	Ethernet Bluetooth

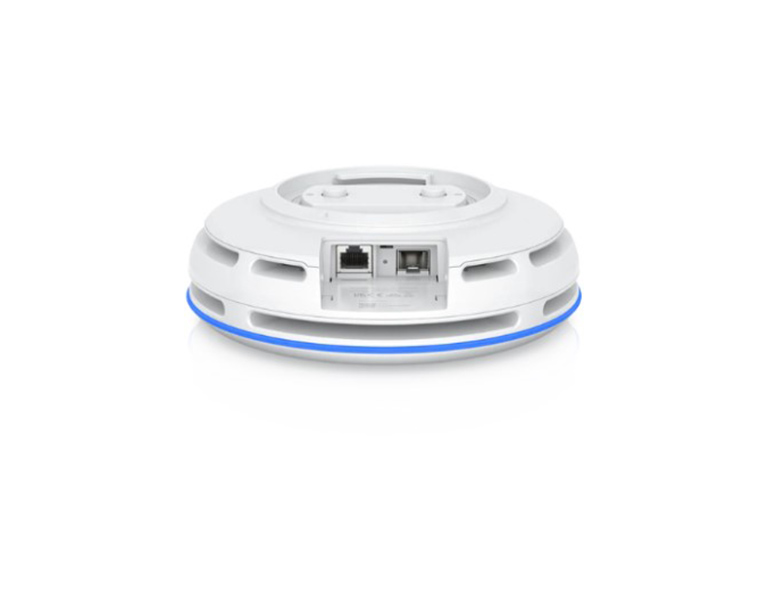

Networking interface	(1) GbE RJ45 port (1) 1/10G SFP+ port
Button	Factory-reset
LED	R/G/B
Power method	PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)]
Power supply	UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included)
Supported voltage range	48VDC ± 10%
Max. power consumption	31.2W
Throughput rate	5 GHz 866.6 Mbps 60 GHz 6.6 Gbps
Maximum range	500+ m (1,640+ ft)
Operating temperature	-40 to 55° C
Operating humidity	5 - 95% noncondensing
Certications	FCC, IC, CE, terragraph
Software
WiFi standards	802.11ad/ay 802.11ac (WiFi 5)
Wireless security	WPA2 AES (Always On)
Operating modes	PtP
VLAN Management	VLAN only
RF
Operating frequency*	57 to 66 GHz *Dependentonregional regulations
Channel bandwidth	2,160/4,320 MHz (Channel Bonding Enabled)
Operating channels*	58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependentonregional regulations
Backup RF
Operating frequency*
US/CA	U-NII-1 5.150 - 5.250 MHz U-NII-2A 5.250 - 5.350 MHz U-NII-2C 5.470 - 5.725 MHz U-NII-3 5.725 - 5.850 MHz *Dependentonregional regulations
Worldwide	5,150 - 5,725 MHz *Dependentonregional regulations
Channel bandwidth	20/40/80 MHz
