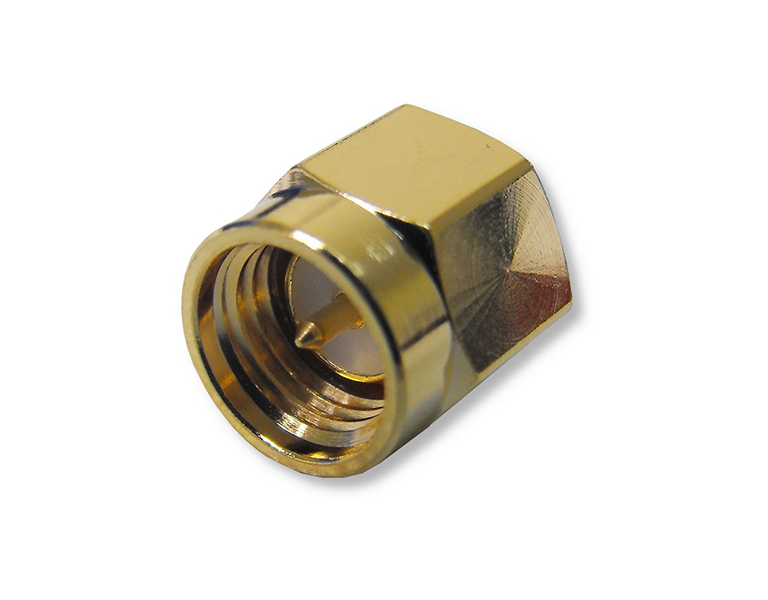

E-zy EZ-SMAM100 SMA Male Crimp connector for 100, RG-174 series
Product Code:
EZ-SMAM100
Manufacturer E-zy
Sales price:
1,60 €(Includes 24% VAT)
Sales price without TAX:1,29 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
E-zy EZ-SMAM100 SMA Male Crimp connector for 100, RG-174 series
SMA Male Crimp connector for LMR100, RG-174, RG-316 series coaxial cable. SMA Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. Their consistently low broadband VSWR have made them popular over the years in many applications. The SMA series connector is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | 0.3 dB max at 10 GHz |
| Insulation Resistance | 5,000 Megohms min |
| Body | Gold |
| Center Pin | Gold |
| Crimp Tube | Gold |
| Dielectric | Teflon |
